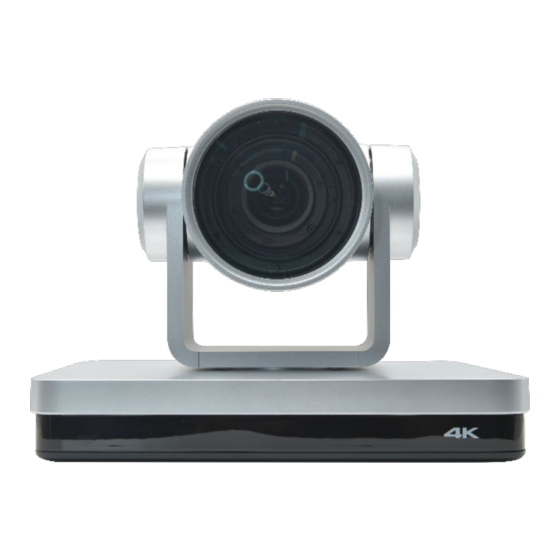

ALFAtron ALF-25X-4KCAM Manual

4k ptz camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

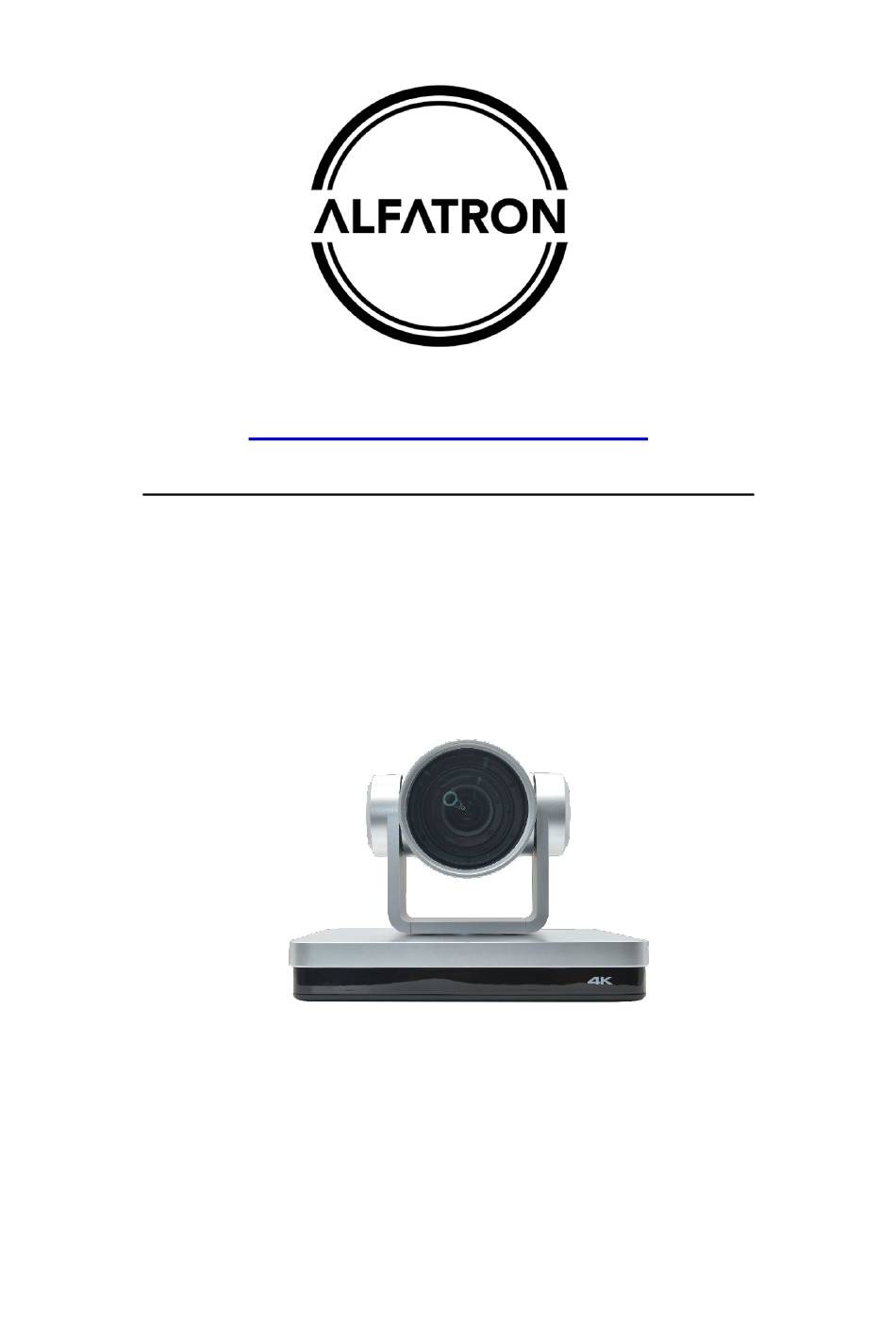

www.alfatronelectronics.com
ALFATRON ELECTRONICS GmbH GERMANY
4K PTZ CAMERA
ALF-25X-4KCAM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ALF-25X-4KCAM and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ALFAtron ALF-25X-4KCAM

Summary of Contents for ALFAtron ALF-25X-4KCAM

  • Page 1 ALFATRON ELECTRONICS GmbH GERMANY 4K PTZ CAMERA ALF-25X-4KCAM...
  • Page 2 ALF-25X-4KCAM Warning Improper operations may damage the product structure and result in mechanical failure. Please note the following tips. Do not move the camera by grabbing the head. Move the camera by holding the bottom with one or both hands.

  • Page 3: Table Of Contents

    ALF-25X-4KCAM Content CAMERA INSTALLATION ..........................3 ..........................3 AMERA NTRODUCTION ........................3 NTERFACES AND ONNECTION ..........................4 OUNTING RACKETS 2. PRODUCT OVERVIEW ............................7 2.1 D ................................ 7 IMENSION 2.2 A ............................... 7 CCESSORY 2.3 RS-232 I ............................8 NTERFACE 2.3 P...
  • Page 4 ALF-25X-4KCAM Attention NOTE: This equipment has been tested and was found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 5 ALF-25X-4KCAM This manual introduces in detail the functions, installation and operation for this PTZ camera. Please read this manual carefully before installation and use. 1. Cautions 1.1 Avoid damage to product caused by heavy pressure, strong vibration or immersion during transportation, storage and installation.

  • Page 6: Camera Installation

    ALF-25X-4KCAM Camera Installation 1.1 Camera Introduction Interface：Figure1-1 Interface 1. Receiving Light 6. USB2.0 11. RS232 Input 7. SDI 12. RS232 Output 2. Lens 3. Fixation Hole 8. Audio In 13. RS422/RS485 Jack 4. Tripod Screw Hole 9. Rotary Dip Switch 14.

  • Page 7: Mounting Brackets

    ALF-25X-4KCAM 1) After power on and self-warming, the camera will automatically return to the preset 0 position if it’s pre-set. 2) The default address for the IR remote control is 1#. If the menu restored to factory defaults, the remote-control default address will restore to 1#.
  • Page 8 ALF-25X-4KCAM...
  • Page 9 ALF-25X-4KCAM 2）Ceiling Mounting...

  • Page 10: Product Overview

    ALF-25X-4KCAM 2. Product Overview 2.1 Dimension Figure 2.2 Product Dimension 2.2 Accessory Please see below standard and optional accessories when unpacking the box. Standard Accessories Power adapter IR Remote Control RS232 Cable User Manual USB2.0 Cable Plastic Pad Wall or Ceiling Mount Bracket...

  • Page 11: Rs-232 Interface

    ALF-25X-4KCAM 2.3 RS-232 Interface 1）RS-232 Interface Definition Connection to PC or Camera Controller Camera WindowsDB- 1.DTR 1.DCD 2.DSR 2.RXD 3.TXD 3.TXD 4.GND 4.DTR 5.RXD 5.GND 6.GND 6.DSR 7.IR OUT 7.RTS 8.NC 8.CTS 9.RI 2）Mini-DIN8-pin Port Definition Port Definition Data Terminal Ready...

  • Page 12: Port Numbers

    ALF-25X-4KCAM 1.DTR 1.DTR 2.DSR 2.DSR 3.TXD 3.TXD 4.GND 4.GND 5.RXD 5.RXD 6.GND 6.GND 7.IR OUT 7.OPEN 8. NC 8.OPEN Note: Camera has an RS232 input and output interfaces, which can be cascaded according to the above diagram; 2.3 Port Numbers 2.4 Rotary DIP Switch...

  • Page 13: Main Features

    ALF-25X-4KCAM Dial-up video format Dial-up video format 4KP60 1080P30 2.5 Main Features 4KP50 1080P25 4KP30 720P60 4K25 720P50 This series camera has multiple functions, superior video format to be set performance and a rich video output interface; Featuring 1080P60 on the menu...
  • Page 14 ALF-25X-4KCAM Optical Zoom f=7.1 mm～ 175.11 mm ±5% Horizontal: 2.5˚（N）～ 59.2˚（W） View Angle 4˚（N）～ 34.6（W） Vertical: 1. F1.61(Wide) ～ F5.15(Tele) ±5% 1/1.8 inch SONY CMOS sensor Sensor Effective Pixels 8.51M megapixel 16：9 HDMI: 3840*2160P60 / 50 / 25 / 59.94 / 29.97; 1080P60 / 50 / 25 / 59.94 / 29.97;...
  • Page 15 ALF-25X-4KCAM Audio Compression AAC, MP3, G.711A Format Network 10M / 100M / 1000M adaptive Ethernet port, supports POE power supply, supports audio Interface and video output RTSP, RTMP, ONVIF, GB/T28181; Network VISCA control protocol: Supports Network remote upgrade, reboot and reset...
  • Page 16 ALF-25X-4KCAM Power HEC3800 outlet (DC12V) Interface Supply Adapter AC110V~AC220V to DC12V/2.5A Input Voltage DC12V±10% Input Current <1A Power <12W Consumption PTZ Parameter Pan Rotation -110°～+110° Tilt Rotation -30°～+30° Pan Control 0.1°/s ～100°/s Speed Tilt Control 0.1°/s ～70°/s Speed Preset Speed Pan: 78.8°/s, Tilt: 31.7°/s...

  • Page 17: Remote Control

    ALF-25X-4KCAM 3.Remote Control Remote control instructions: remote control is divided into two types: infrared remote control and wireless remote control. Please read the following contents according to the actual remote-control type. 3.1 Code Matching for Wireless Remote Control One to One Code Matching: Press the "set"...

  • Page 18: Keys Introduction For Ir Remote Control

    ALF-25X-4KCAM 3.2 Keys Introduction for IR Remote Control 1) In this manual, “press the key” means a click rather than a long-press, and a special note will be given if a long-press for more than one second is required. 2) When a key-combination is required, do it in sequence. For example, “【*】+【#】+【F1】” means press“【*】”first and then press“【#】”...
  • Page 19 ALF-25X-4KCAM Set Preset: press 【SET PRESET】 button, and then press the number key 0-9 to set preset positions. Note: 10 presets via remote control. Call Preset: Press a number key 0-9 directly to call a preset position. Clear Preset: press 【CLEAR PRESET】 button, and then press the number key 0-9 to clear preset positions.

  • Page 20: Menu Introduction

    ALF-25X-4KCAM 9. Key Combination 1) 【#】+【#】+【#】: Clear all presets 2) 【*】+【#】+【6】: Restore factory defaults 3) 【*】+【#】+【3】: Menu set to Chinese 4) 【*】+【#】+【4】: Menu set to English 5) 【*】+【#】+【9】: Flip switch 6) 【*】+【#】+ Auto: Enter aging mode 7) 【#】+【*】+ Auto: Exit aging mode 8) 【...
  • Page 21 ALF-25X-4KCAM 2) Menu Layout...

  • Page 22: Network Configuration

    ALF-25X-4KCAM 4. Network Configuration 4.1 Network Connection Direct Connection：Direct connections via “cross-over” network cable Connection to LAN：Connections to LAN via patch cable to LAN wall jack or LAN switch  Please do not put the power and network cable in places where can be easily touched to prevent video quality lowered by unstable signal transmission due to poor contact of cables.
  • Page 23 ALF-25X-4KCAM Figure1-8 Network segment successfully added User can also to verify network connection as steps above mentioned after the finish of camera self-check. If IP is default, open DOS command window and input 192.168.5.163, then press Enter key. It will show message as below: which means network connection is normal.

  • Page 24: Camera Web Interface

    ALF-25X-4KCAM Camera Web Interface 4.1.1 Web Login 1） Web Login After assigning an IP address to the camera, you can reach the Web Interface by typing in the camera’s IP address into a web browser. You can log in this interface as administrator or user. If as administrator, type in “admin”...

  • Page 25: Configuration

    ALF-25X-4KCAM You can control PTZ, zoom, focus, video capture, sound, focus, full screen and set run, and delete the preset position. 2） Login as user User name and default password: “user1” or “user2” You can control PTZ, zoom, focus, video capture, sound, focus, full screen and set run, and delete the preset position.

  • Page 26: Audio Configuration

    ALF-25X-4KCAM Network Including basic parameters, Ethernet, DNS, wireless network setting, Configuration GB28181 etc. System Including equipment property, system time, user management, version update, Configuration Reset, Reboot device settings etc. 4.1.4 Audio Configuration Switch: Choose to enable the audio or not.
  • Page 27 ALF-25X-4KCAM Rate (Kb / s): Set the video bit rate (main stream default 4096Kb / s,64-12288Kb / s optional; secondary stream default 1024Kb / s,64-10240Kb / s optional). Frame rate (F / S): Set the video frame rate (primary / secondary stream default 25F / S, primary stream 5-60F/S optional, secondary stream 5-30F / S optional ).
  • Page 28 ALF-25X-4KCAM Focus Tactic: set the focus tactic (Default before-focus, after-focus, normal meeting, education tracking, moving-target focus, center focus optional.) Focus Sensitivity: Set the focus sensitivity (default is low, high, medium optional) B）Exposure: Exposure mode, exposure compensation, backlight compensation, anti-flicker, gain limit, dynamic range, shutter, aperture, brightness, gain can be set.
  • Page 29 ALF-25X-4KCAM Auto White Balance Sensitivity: Sensitivity Auto white balance settings (default is low, high, medium optional). Red Gain: Set the red gain, effective when it is manual (default 145, 0-255 optional). Blue Gain: Sets the Blue gain, effective when it is manual (default 56, 0-255 optional).

  • Page 30: Network Configuration

    ALF-25X-4KCAM Move Character: Set the location where the time and title to display. Click “ up, down, left, right” button to move the characters’ location. Title: Set title on device property (default CAMERA1) Time: Set time on system time (default 1970/01/01 05:36:00) Click “Save”...
  • Page 31 ALF-25X-4KCAM WebSocket Port：Set WebSocket port, the device will restart automatically after changed (default 8088, 0-65535 optional). Click on the "Save" button, it will be valid when display "Save successful". RTMP access: RTMP: / / equipment IP address: 1935 / live/av0 (av0 main stream; av1 second stream) RTMP Access：Rtmp://equipment IP address: 1935 / live/av0 (av0 main stream;...

  • Page 32: System Configuration

    ALF-25X-4KCAM Alarm Zone: Users can add their own Equipment Installation Address: Users can add their own Local SIP Port: 5060 Range 0-65535 GB28181 Server Address: IP address of the computer Server SIP Port: 5060 Range 0-65535 Server ID: 34020000002000000001 Click on the "Save" button, it will be valid when display "Save successful".
  • Page 33 ALF-25X-4KCAM Date Separator: set the date separator (default '/','.','-' Optional). Time Zone: Set the time zone (default UTC+08:00, other time zones optional). Time Type: Set the time types (default 24 hours, optional 12 hours). Enable NTP: Enable/disable NTP Update Interval: Set the NTP server automatic updated time interval. Valid after setting NTP server synchronization (default one day, 2-10 days Optional).

  • Page 34: Logout

    ALF-25X-4KCAM  After the version upgrade is completed, you need to restore the factory default values a, restore the factory default through web configuration; b, restore the factory default value through the menu; c, remote control shortcut key *#6 restore factory default;...

  • Page 35: Visca Protocol Return Command

    ALF-25X-4KCAM 5.1 VISCA Protocol Return Command Ack/Completion Message Command packet Note z0 41 FF Returned when the command is accepted. Completion z0 51 FF Returned when the command has been executed. z = camera address + 8 Error Messages Command packet...
  • Page 36 ALF-25X-4KCAM Command Function Command packet Note One Push WB Trigger(Enabled during One Push Trigger 8x 01 04 10 05 FF One Push WB mode) CAM_WB Mode 8x 01 04 35 pq FF pq = 00--33 WBMode 8x 01 04 A9 00 FF...
  • Page 37 ALF-25X-4KCAM Command Function Command packet Note 8x 01 04 53 0p FF P=0-7 0:OFF CAM_NR 8x 01 04 54 0p FF P=0-8 0:OFF p = 0 – 4 0：Default 1：0.45 2： CAM_Gamma 8x 01 04 5B 0p FF 0.50 3：0.55 4：0.63...

  • Page 38: Visca Protocol Inquiry Command

    ALF-25X-4KCAM Command Function Command packet Note 8x 01 06 01 VV WW 01 03 YYYY: Pan Position Left ZZZZ: Tilt Position 8x 01 06 01 VV WW 02 03 Right 8x 01 06 01 VV WW 01 01 Upleft 8x 01 06 01 VV WW 02 01...

  • Page 39: Pelco-D Protocol Command List

    ALF-25X-4KCAM CAM_ExpCompPosInq 8x 09 04 4E FF y0 50 00 00 0p 0q FF pq: ExpComp Position y0 50 02 FF CAM_BacklightModeInq 8x 09 04 33 FF y0 50 03 FF CAM_WDRStrengthInq 8x 09 04 51 FF y0 50 00 00 00 0p FF...

  • Page 40: Pelco-P Protocol Command List

    ALF-25X-4KCAM Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed Right 0xFF Address 0x00 0x02 Pan Speed Tilt Speed Upleft 0xFF Address 0x00 0x0C Pan Speed Tilt Speed Upright 0xFF Address...
  • Page 41 ALF-25X-4KCAM Call Preset 0xA0 Address 0x00 0x07 0x00 Preset ID 0xAF Query Pan Position 0xA0 Address 0x00 0x51 0x00 0x00 0xAF Query Pan Position Value High Value Low 0xA0 Address 0x00 0x59 0xAF Response Byte Byte Query Tilt Position 0xA0...

  • Page 42: Maintenance And Troubleshooting

    ALF-25X-4KCAM Maintenance and Troubleshooting 6.1 Camera Maintenance 1) Please power off the camera and disconnect the power adapter and socket if the device is not used for a long period of time. 2) Use a soft cloth or lint free cloth to clean the camera outer housings.
  • Page 43 ALF-25X-4KCAM 5) Serial port not working a. Check whether the camera serial device protocol, baud rate and camera address is set correctly. b. Check whether the control cable is connected correctly. c. Check that the camera working mode is set to the normal operating mode.

  • Page 44: Warranty

    ALF-25X-4KCAM 7. Warranty 1.1 This limited warranty covers defects in materials and workmanship in this product. 1.2 Should warranty service be required, proof of purchase must be presented to the Company. The serial number on the product must be clearly visible and not have been tampered with in any way whatsoever.
  • Page 45 ALF-25X-4KCAM 1.11 The Company is not obligated to provide the Customer with a substitute unit during the limited warranty period or at any time thereafter. 1.12 If this product is returned to the Company this product must be insured during shipment, with the insurance and shipping charges prepaid by the Customer.
