ALFATRON ELECTRONICS GmbH GERMANY

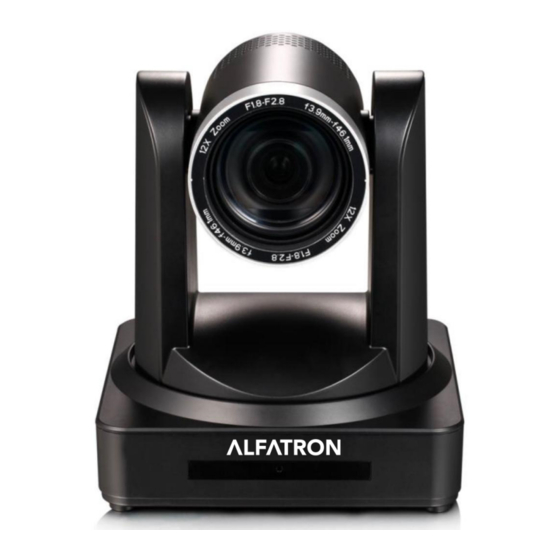

ALF-20X-NDIC Full HD PTZ Camera
User Manual
The ALF-20X-NDIC is a Full HD PTZ camera with a 20x Zoom lens. The features include advanced ISP processing
algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It
supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth
conditions.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ALFAtron ALF-20X-NDIC
Summary of Contents for ALFAtron ALF-20X-NDIC
- Page 1 ALF-20X-NDIC Full HD PTZ Camera User Manual The ALF-20X-NDIC is a Full HD PTZ camera with a 20x Zoom lens. The features include advanced ISP processing algorithms to provide vivid images with a strong sense of depth, high resolution, and fantastic color rendition. It supports H.264/H.265 encoding which makes motion video fluent and clear even under less than ideal bandwidth...
- Page 2 up to 60fps. Mechanism Lens By adopting step driving motor mechanism, ALF-20X-NDIC camera works extremely 20X optical zoom, with wide viewing angle of quiet and moves smoothly. 54.7 °free distortion. Multiple Audio/Video Compression Trinity image auto focus technology ...
- Page 3 ALFATRON ALF-20X-NDIC Technical Specification Model ALF-20X-NDIC Camera Parameter Optical Zoom f＝5.5~110mm Sensor 1/2.8-inch-high quality HD CMOS sensor Effective Pixels 16: 9, 2.07 megapixel Video Format HDMI/SDI video format 1080P60/50/30/25/59.94/29.97; 1080I60/50/59.94; 720P60/50/30/25/59.94/29.97 View Angle 3.3°(tele) 54.7°(wide) F1.6 – F3.5 Digital Zoom Minimum 0.1Lux...
- Page 4 ALFATRON ALF-20X-NDIC Video Compression H.264, H.265, Dual stream output Control Protocol VISCA/Pelco-D/Pelco-P; Baud Rate:115200/9600/4800/2400bps Audio Input Interface A-IN: Double track 3.5mm linear input; Audio Compression AAC/MP3/G.711A Audio compression HD IP Interface 100M IP Port(10/100BASE-TX); Support VISCA protocol control through IP port.
-
Page 5: Dimension(Mm)
Dimension(mm): Warranty Limited warranty in respect of Alfatron Products Only 1.1 This limited warranty covers defects in materials and workmanship in this product. 1.2 Should warranty service be required, proof of purchase must be presented to the Company. The serial number on the product must be clearly visible and not have been tampered with in any way whatsoever. - Page 6 ALFATRON ALF-20X-NDIC malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by the Company to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
- Page 7 ALFATRON ALF-20X-NDIC responsible for any costs related to any setting up this product, any adjustment of user controls or any programming required for a specific installation of this product. 1.13 Please be aware that the Company’s products and components have not been tested with competitor’s products and therefore the Company cannot warrant products and/or components used in conjunction with competitor’s products.
