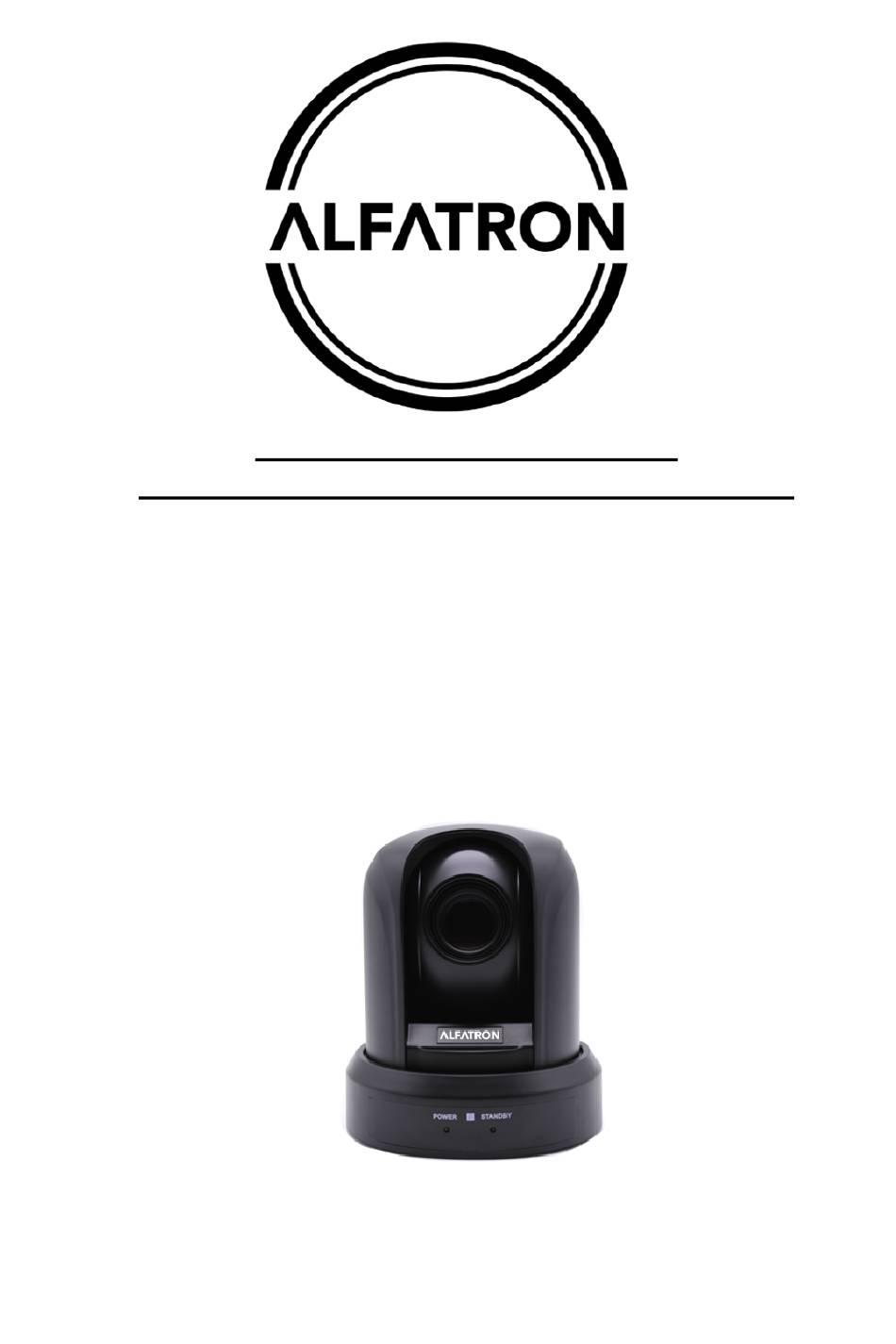

- Page 1 ALFATRON ELECTRONICS GmbH GERMANY ALF-10XU2-CAM Full HD USB2.0 PTZ Camera All Rights Reserved...
-
Page 2: Safety Precaution

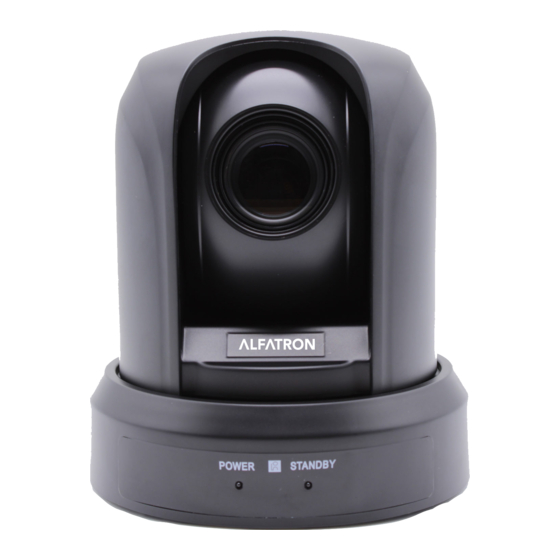

Introduction Alfatron ALF-10XU2-Cam is an HD PTZ camera equipped with 1080p with a 10x Zoom lens. This PTZ camera is suitable for medium to large size meeting rooms, boardrooms, and conference venues. -
Page 3: Camera Description
Alfatron ALF-10XU2-CAM Camera Description Lens. IR Sensor for the remote control. Front Panel Power indicator. Standby indicator. IR Sensor for the remote control. IR Select Switch. Rear Panel RS-422C/485 VISCA / PELCO. 12V DC input. VISCA RS-232C IN Connector. 10. USB 2.0. -
Page 4: Remote Controller
Alfatron ALF-10XU2-CAM Remote Controller Camera Select. Focus: Auto or Manual M-Open: open the menu. Back Light. Power. STD REV: (Press L/R Direction Set, and then Press 1 or 2) Position: Number Area: Preset: Press Preset then 1-9 for setup preset position... - Page 5 Alfatron ALF-10XU2-CAM...
- Page 6 Alfatron ALF-10XU2-CAM Remote Commander Operation A: Pan / Tilt Control 1: Power On, Pan /Tilt will be in initial position 2: Press the arrow to adjust the position while watching the video image, you can move direction by using the arrow keys step by step.
-
Page 7: Backlight Compensation
Alfatron ALF-10XU2-CAM One remote to control multiple cameras 1: A maximum of three cameras can be controlled by one remote control. 2: Press CAMERA SELECT 1 or 2 or 3 to select the camera you want to control. The button will light up once selected. -
Page 8: Bottom Switch
Alfatron ALF-10XU2-CAM Use Preset Position Press any of the 1-9 buttons to activate that preset. To Cancel Preset Position Press RESET, then Press the Preset number you want to cancel. Bottom Switch The bottom switch allows you to set the camera image right way up or, mounted to the ceiling and the image flipped. -
Page 9: Load Defaults
Alfatron ALF-10XU2-CAM Menu Description CAMERA ID This setting allows you to set the camera ID. Press the right arrow button and enter. Press Up or Down to select the ID. Then click the right button to confirm. Left to exit. -
Page 10: Dnr Level
Alfatron ALF-10XU2-CAM SAVE AND EXIT This setting allows you to set the camera control protocol. Press the right arrow button and enter. Press Up or Down to select. Then click the right button to confirm. Left to exit. DIGITAL ZOOM This setting allows you to turn digital zoom on or off. -
Page 11: Color Gain
Alfatron ALF-10XU2-CAM COLOR GAIN This setting allows you to set the color gain. Press the right arrow button and enter. Press Up or Down to select. Then click the right button to confirm. Left to exit. There are 200 Levels. -
Page 12: Technical Specifications
Alfatron ALF-10XU2-CAM Technical Specifications... - Page 13 Alfatron ALF-10XU2-CAM Limited warranty in respect of Alfatron Products Only 1.1 This limited warranty covers defects in materials and workmanship in this product. 1.2 Should warranty service be required, proof of purchase must be presented to the Company. The serial number on the product must be clearly visible and not have been tampered with in any way whatsoever.
- Page 14 Alfatron ALF-10XU2-CAM 1.10 The Company will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty: 1.10.1 Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition.;...
