Performance Tool M566DB Owner's Manual page 3

OPERATION
1. Do not put additional pressure on the machine. This will only reduce sanding efficiency
and shorten the tool's life. We recommend the air pressure of this grinder at 90 PSI.
2. When using the grinder be careful not to exert excessive force. Too much force could be
hazardous if it caused the cutting tool spindle to bend or break.
3. The burning of the work piece or excessive speed reduction indicates too much force
being applied. Changing to a free cutting tool may be better for the desired rate of speed
and stock removal.
4. Avoid hazardous conditions by making sure there is sufficient gripping force on the
spindle of the cutting tool by placing the spindle at least 7/16" inside the collet.
5. Lubricate the air motor with a good grade of air tool oil and drain the tank daily. Grit or
gum deposits in the tool may cut power and may be corrected by cleaning the air
strainer and flushing out the tool with gum solvent oil.
LUBRICATION & MAINTENANCE
Oil tool before each use. 4 to 5 drops of a good grade Air Tool Oil placed in the air inlet is
sufficient. Use proper air pressure and CFM rating listed for this tool.
Drain water from hoses and compressor tank. Water in the air supply line will cause
gumming and loss of power. Clean the air filter on the supply line and flush the tool with
gum solvent or a 50/50 mix of air tool oil and kerosene. It may be necessary to
disassemble the tool to properly clean and re-lubricate.
Air Tool
Oil
Whip
hose
Yes
5
Safety Trigger
Air Inlet
T r a n s .
F lu id
M o to r
B r a k e
O il
F lu id
Water
N o

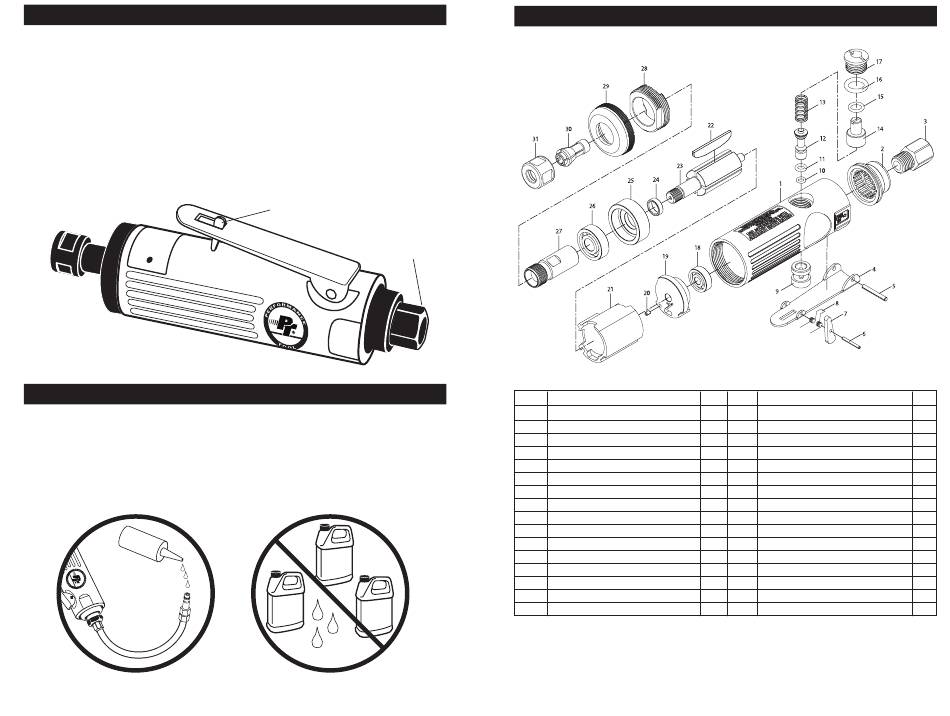

PARTS LIST
INDEX DESCRIPTION
1 Housing
2 Exhaust Deflector
3 Hosing Adaptor
4 Trigger
5 Trigger Pin
6 Trigger Safety Pin
7 Safety
8 Trigger Spring
9 Valve
10 O-Ring
11 O-Ring
12 Valve Stem
13 Spring
14 Air Regulator
15 Flowing O-Ring
16 Nut O-Ring
QTY INDEX DESCRIPTION
1 17 Nut
1 18 Rear Bearing
1 19 Rear Cover
1 20 Cylinder Pin
1 21 Cylinder
1 22 Rotor Blade
1 23 Rotor
1 24 Washer
1 25 Front Cover
1 26 Front Bearing
1 27 Spindle
1
28 Lock Nut
1 29 Lock Housing Cap
1 30 Collet Nut
1 31 Clamp Nut
1
QTY
1
1
1
1
1
4
1
1
1
1
1
1
1
1
1
6
