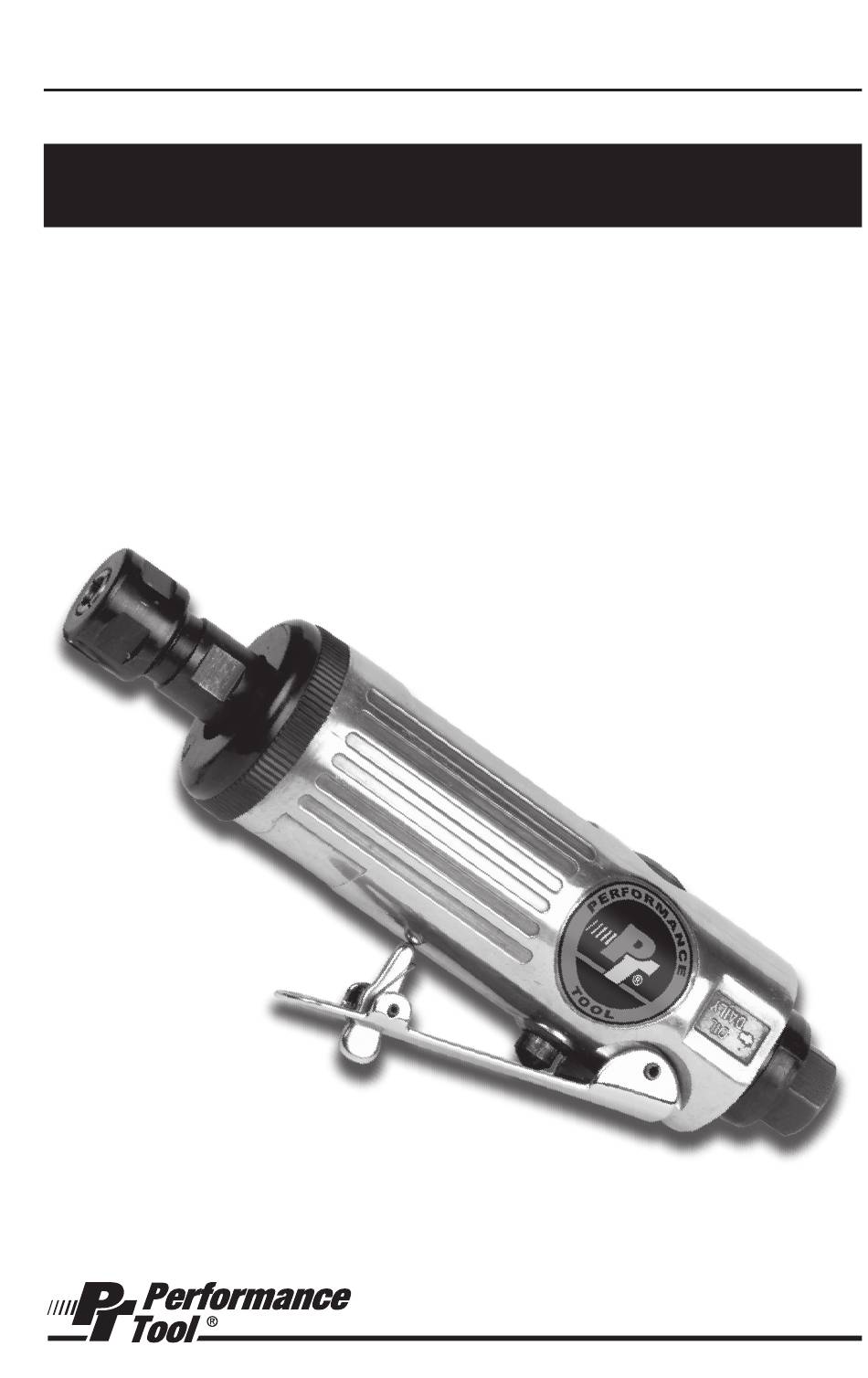

1/4" Heavy Duty Die Grinder
Stock Number M566DB
OWNER'S MANUAL
SPECIFICATIONS:
Collet size (IN.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/8, 1/4
Air pressure (P.S.I.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Average air consumption (C.F.M.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Free speed (R.P.M.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22,000
Air inlet (N.P.T.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4
Hose size (I.D.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3/8 in.
Length (IN.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6.8
Weight (LBS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 .3
Specifications are subject to change without notice.
WARNING!
READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND WARNINGS BEFORE
OPERATING THIS TOOL. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY
AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Performance Tool M566DB
Summary of Contents for Performance Tool M566DB
- Page 1 1/4" Heavy Duty Die Grinder Stock Number M566DB OWNER’S MANUAL SPECIFICATIONS: Collet size (IN.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/8, 1/4 Air pressure (P.S.I.) .
- Page 2 Only use accessories intended for use with this tool. Approved 1. Keep work area clean. Cluttered areas invite injuries. accessories are available from Performance Tool®. Use only accessories that are 2. Observe work area conditions. Do not use machines or power tools in damp or wet recommended by the manufacturer for your model.
- Page 3 OPERATION PARTS LIST 1. Do not put additional pressure on the machine. This will only reduce sanding efficiency and shorten the tool's life. We recommend the air pressure of this grinder at 90 PSI. 2. When using the grinder be careful not to exert excessive force. Too much force could be hazardous if it caused the cutting tool spindle to bend or break.
- Page 4 PERFORMANCE TOOL® does not authorize any other person to make any warranty or to assume any liability in connection with its products.
