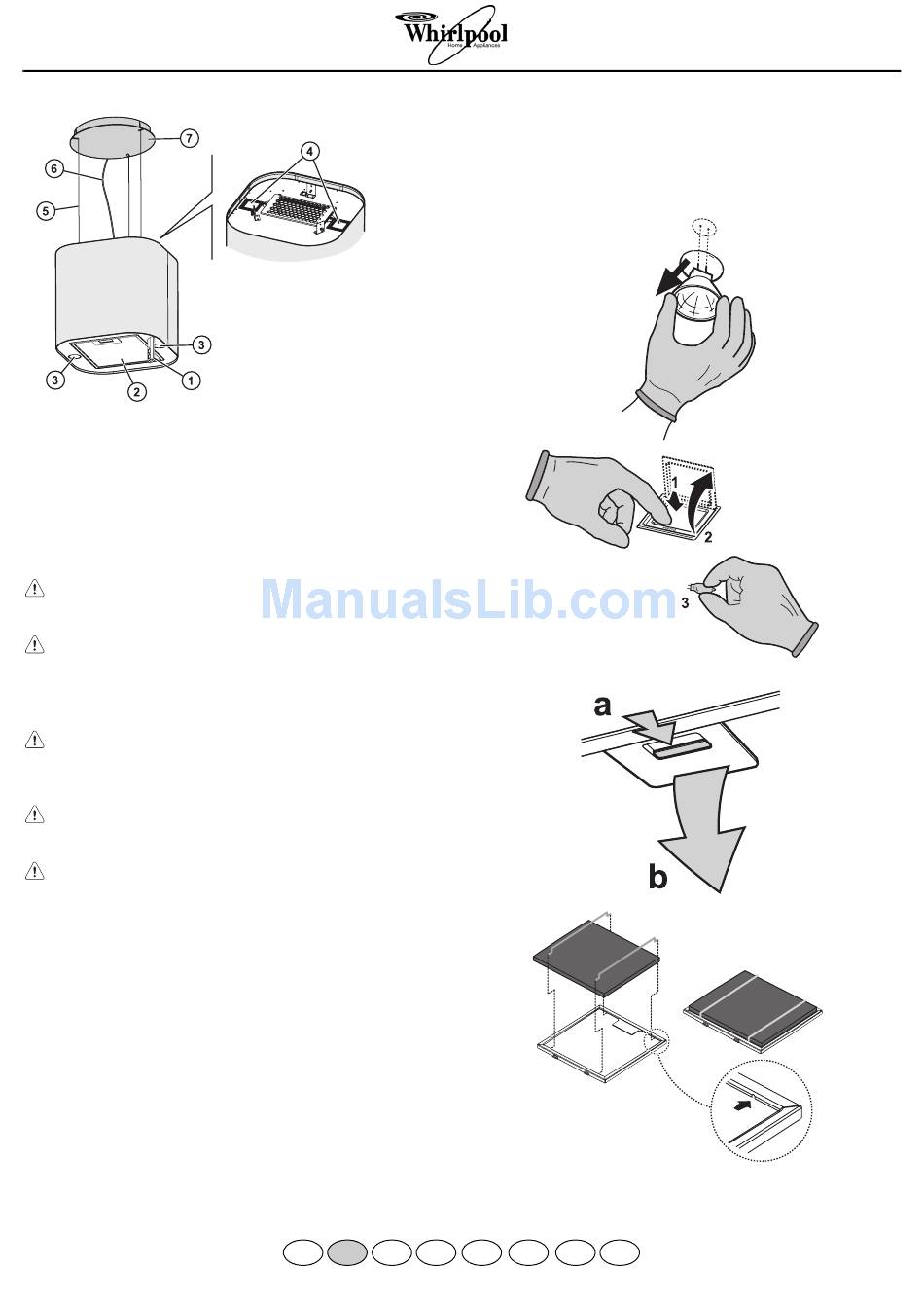

PRODUCT SHEET

1. Control panel
2. Grease filter
3. Bottom light
4. Top light
5. Support cables
6. Interconnection cable
7. Cover
Maintenance of bottom lamps
1. Disconnect the hood from the power supply.
WARNING: Wear gloves.
2. Remove the burnt-out lamp by prising on the edge (Fig.1).
3. Fit the new lamp (Fig.1).
WARNING: Only use halogen lamps 20W max. GU4 -
12V - Ø 35mm - 30° - Dichroic, taking care not to touch
them with hands.
Replacing the top lamps
1. Disconnect the hood from the power supply.
WARNING: Wear gloves.
2. Press on the lighting unit and open it completely (Fig. 2)
otherwise it will not close again.
3. Remove the burnt-out lamp and fit a new one.
WARNING: Only use max. 20 W halogen lamps, taking
care not to touch them with hands.
4. Close the lighting unit.
WARNING: The lighting unit must be completely
opened otherwise it will not close again.

Grease filters:

The metal grease filter has an unlimited life and should be
washed once a month by hand or in a dishwasher at a low
temperature and with short cycle. Cleaning in a dishwasher
may cause discolouring of the grease filter, but its filtering
efficiency is unaffected.
Grease filter maintenance:
1. Disconnect the hood from the power supply.
2. Remove the grease filter (Fig. 3) by pulling the spring
release handle.
3. Remove the carbon filter fitted on the grease filter.
Carbon filter maintenance
The carbon filter must be cleaned once a month in a
dishwasher at the highest temperature, using a normal
dishwasher detergent. Wash the filter on its own.
After washing, reactivate the carbon filter by drying it in the
oven at 100°C for 10 minutes.
Change the carbon filter every 3 years
5019 318 33271
D
GB
F
NL

Fitting the carbon filter:

1. Remove the grease filter (Fig. 3) (refer to the section
"Grease filter maintenance").
2.
Place the carbon filter on the grease filter.
3.
Clamp the carbon filter with the special metal catches.
(Fig. 4), to be inserted in the holes obtained in the frame.
4. Reinsert the grease filter complete with carbon filter.
E
P
I
GR
Fig. 1
Fig. 2
Fig. 3
Fig. 4
