MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips.
Page 5

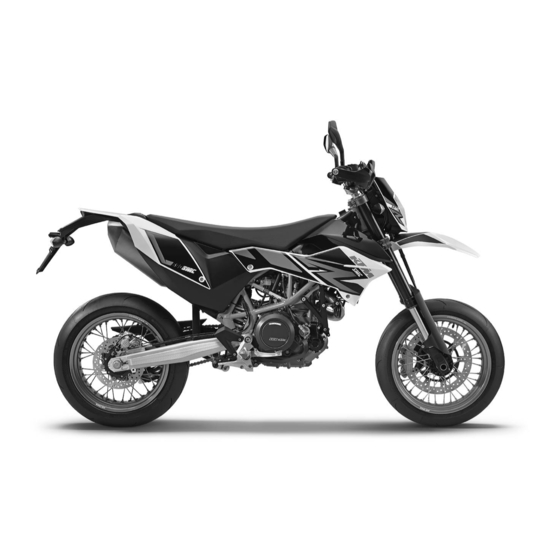

SETUP Unpacking and setting up the vehicle – Remove straps and box. S00791-10 – Remove the adhesive tape in the upper area of the motorcycle. S00809-10 – Roll down the film at the sides. Info To avoid damaging the motorcycle during unpacking, leave the other films on the vehicle until you have finished work on the vehicle.
Page 6
SETUP – Position the handlebar. – Position the handlebar clamps. Mount the four screws and tighten evenly. Guideline Screw, handlebar clamp 20 Nm (14.8 lbf ft) The marking of the handlebar scale are located centrally between the han- dlebar clamps. ...
– Mount heel protector. ( p. 11) – Refuel. ( p. 11) – Print out the current PDI form found on the KTM Dealer.net and perform the pre- delivery inspection. – Set kilometers or miles. ( p. 12)
Page 8
WORK Removing the seat – Pull on strap and raise the rear of the seat at the same time. – Pull back the seat and lift it off. 101977-10 Mounting the seat 101988-10 – Hook slot of the seat onto screw , press the rear downward and at the same time push it forward.
– Do not dispose of batteries with the household waste. Dispose of a defective battery in an environmentally friendly manner. Give the battery to your authorized KTM dealer or dispose of it at a collection point for used batteries. Warning Environmental hazard Hazardous substances cause environmental damage.
Page 10
WORK Preparatory work – Switch off all power consumers and switch off the engine. – Remove the seat. ( p. 6) – Remove the battery. ( p. 6) Main work – Connect the battery charger to the battery. Switch on the battery charger. Battery charger (58429074000) You can also use the battery charger to test rest potential and start potential of the battery, and to test the alternator.
WORK – Position the engine electronics control unit – Mount battery cover S00624-10 Finishing work – Mount the seat. ( p. 6) – Set the clock. ( p. 12) Opening the filler cap Danger Fire hazard Fuel is highly flammable. –...
Page 12
WORK Removing rear fairing Preparatory work – Remove the seat. ( p. 6) Main work – Remove screws S00811-10 – Remove screws – Open the filler cap. ( p. 9) – Take off the rear fairing. – Close the filler cap. ( p.
Page 13
WORK 3.11 Mounting heel protector Info The operations are the same for the left and right sides. Warning Forfeiture of homologation and insurance cover The vehicle is homologated as 2-seater. If the heel protector is fitted instead of the footrest bracket, the vehicle no longer conforms to the homologation and must not be operated in this form without alterations to the registration papers.
WORK – Press the SET button for two seconds. The fuel level warning lamp switches off. TRIP F is set to 0.0 and the dis- play returns to the previous display mode. Info If you do not press the SET button ...
Page 17
SUBSTANCES Super unleaded (ROZ 95/RON 95/PON 91) Standard/classification – DIN EN 228 (ROZ 95/RON 95/PON 91) Guideline – Only use unleaded super fuel that matches or is equivalent to the specified fuel grade. – Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.
