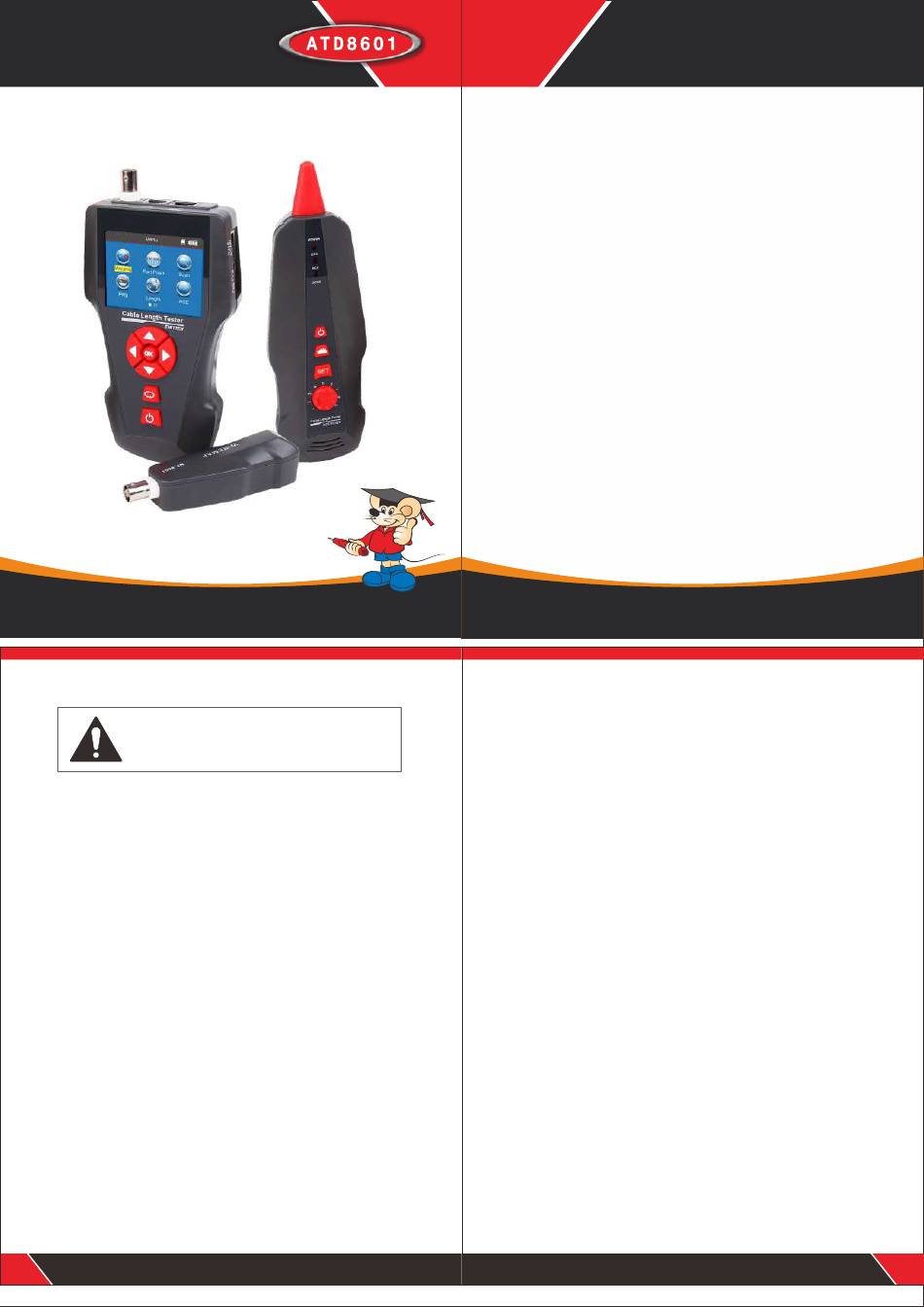

ATD8601
ATD8601
InstructionManual
InstructionManual
Read the precautions before
your operation.
Power supply for device is 3.7V rechargeable lithium battery.
●
●
Disconnect the 5V 1A Charger when complete charging in fear of
danger.
●
Please use battery according to the specification; otherwise, it
may result in damage to equipment.
●
Never put the equipment in the place with much dust, humidity
and high temperature (over 40
●
Please never dismount the equipment arbitrarily. The maintain
-ance and care shall be conducted by professional personnel.
Users can set the auto-off time according to his own needs.
●
●
Please take out the battery in launcher and receiver if the
equipment is not used for a long time so as to prevent that the
battery liquid is leaked in future.
Never use the equipment to detect power cord with electricity
●
(such as power supply circuit of 220V), otherwise, it may result
in damage to equipment and personal injury.
Never conduct related operation of communication line in
●
thunderstorm weather so as to prevent lightning stroke and
Impact on personal safety.
VER: V5
).
CONTENTS
Overview.............................................................01
Main functions ...................................................02
Benefits..............................................................02
Technical Parameters.........................................02
Instruction on Main interface..............................06
Charging function...............................................06
Operation steps..................................................07
a. Cable line-to-line test..........................................09
b. Port flash test.....................................................12
c. Cable length test.................................................14
d. Cable tracing test................................................21
e. Crosstalk test.....................................................23
f.POE test............................................................24
g.PING test...........................................................24
h.System set..........................................................26
Power off............................................................27
Accessories.......................................................27
Diagram of series products ................................28
