ATD Tools 5567 Owner's Manual

Fuel injection pressure tester

Download this manual

ATD-5567

Fuel Injection Pressure Tester

Owner's Manual

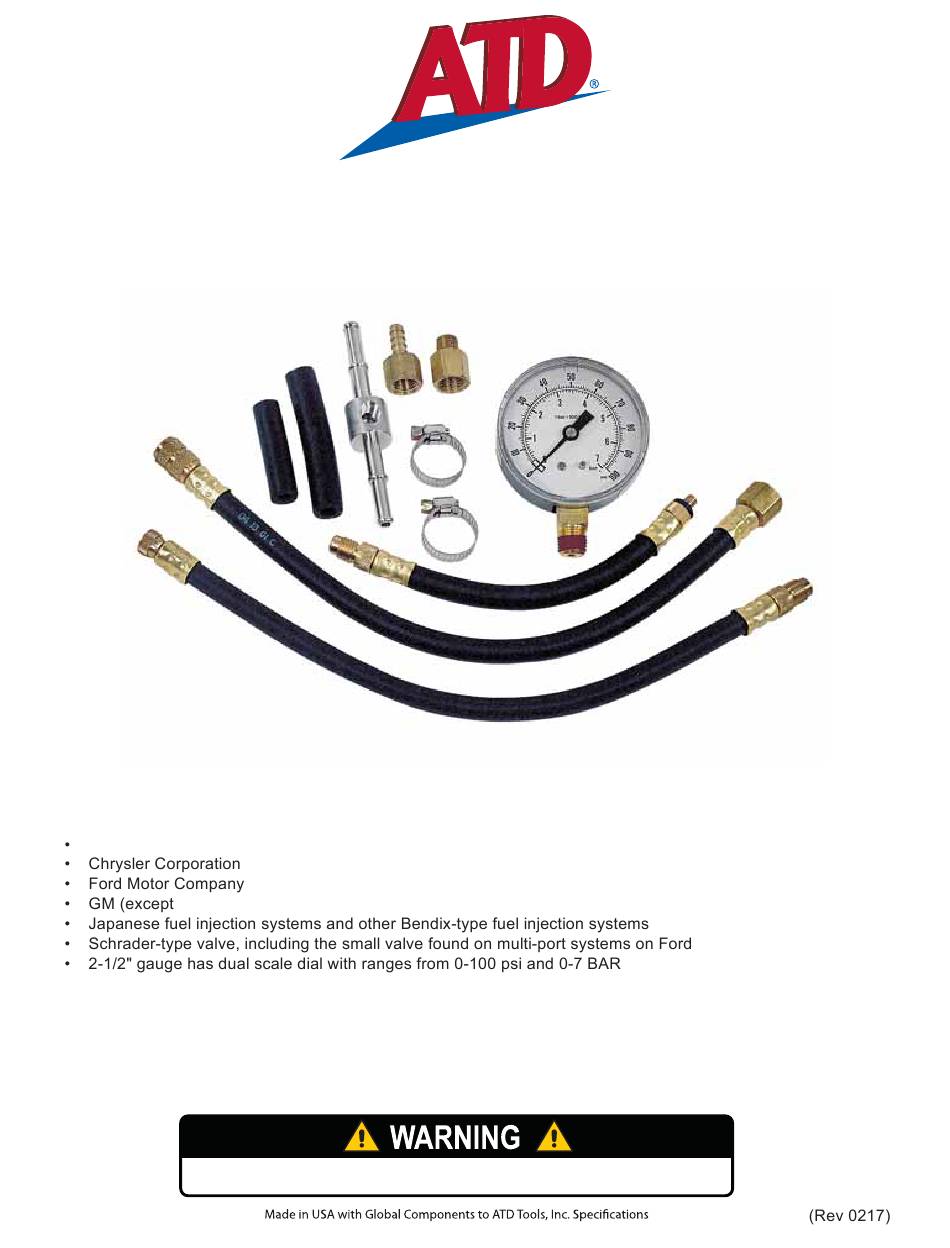

Basic fuel injection tester includes large and small Schrader adapters, M6-1.00 O-ring adapter and tee manifold.

Includes everything needed to test the following systems:

American Motors, Bosch AFC, MPC European and Japanese (except CIS)

TBI)

WARNING: This product contains chemicals, including lead, known to the State of California to cause cancer,

birth defects or other reproductive harm. Wash hands after handling.

Visit us at www.atdtools.com

Need help?

Do you have a question about the 5567 and is the answer not in the manual?

Page 1 ATD-5567 Fuel Injection Pressure Tester Owner’s Manual Basic fuel injection tester includes large and small Schrader adapters, M6-1.00 O-ring adapter and tee manifold. Includes everything needed to test the following systems: American Motors, Bosch AFC, MPC European and Japanese (except CIS)
Page 2 FUEL INJECTION TESTER Fuel Injection Fuel Pump Pressures – Consult factory manual or dealer when pos- sible since pressures may vary from year to year. WARNINGS: 1. Do not loosen hose or fitting on the car until you have placed a cloth around it. Fuel may be under pressure in the system and could spray out, creating a fire hazard and/or personal injury.
Page 3 V. Special Volkswagen Hook-up 1. Assemble special VW hook-up as “ V” in diagram, slipping bottom hose clamp on the bottom loosely. Tighten upper hose clamp. 2. Remove cap from special testing hose barb on car. 3. Push 1/4˝ hose onto hose barb on the car, and tighten lower hose clamp securely.
