Summary of Contents for Russell Taylors VC-22

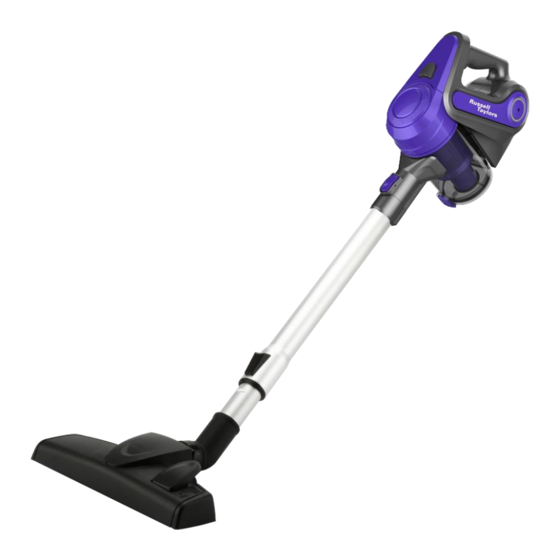

- Page 1 Cordless Vacuum Cleaner USER MANUAL VC-22...
- Page 2 IMPORTANT Before using, make sure to read all the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else, make sure to also include this manual.
- Page 3 If the supply cord or appliance is damaged, stop using the appliance ▪ immediately and seek advice from the manufacturer. Do not let the cord hang over the edge of a table or counter or let it meet ▪ any hot surfaces. The use of accessory attachments other than those supplied is not ▪...
-
Page 4: General Description
GENERAL DESCRIPTION 1. Connector on body 2. Button to release the dust tank 3. On/off switch 4. Handle 5. Filter inside 6. Opening release for dust tank 7. Crevice nozzle 8. Telescopic aluminum tube 9. Charging Port 10. Floor Brush... -
Page 5: Operation
OPERATION 1. Insert the telescopic aluminum tube into the suction hole opening; make sure it fits firmly. 2. Connect the nozzle onto the connection tube. When connecting the floor brush, please connect the extension tube first. The floor brush has two positions, one for hard and one for soft/textile surfaces - Choose the right one. -
Page 6: Cleaning And Maintenance
Caution: The suction hole opening must be always open and free of any obstructions. Otherwise, the motor will overheat and could be damaged. CLEANING & MAINTENANCE 1. Except for the main unit, other parts can be cleaned in warm soapy water. Rinse and dry them completely before reassembly. - Page 7 CLEANING AND MAINTENANCE - Cleaning or replacing the filter For best results clean the filter after every second or third use of the vacuum cleaner, or more frequently if the filter is visibly blocked. Clean the filter regularly to avoid the filter from getting clogged and the engine overheating.
- Page 8 9. Mount the holders and filters in the reverse sequence. •Water could penetrate the appliance if the filter is not thoroughly dry. This could result in (electrical) damage. •Do not clean the filter in a washing machine. •Do not dry the filter with a hairdryer.
-
Page 9: Troubleshooting Guide
TROUBLESHOOTING TROUBLESHOOTING GUIDE PROBLEM POSSIBLE REASON POSSIBLE SOLUTION 1. Check fuse or breaker. Replace VACUUM WILL NOT OPERATE 1. No power in electrical outlet. fuse/reset breaker. 1. Empty dust cup container. 1. Dust cup container is full. 2. Remove dust cup filter and check V ACUUM WILL NOT PICK-UP OR 2. - Page 10 Follow the correct maintenance order for your batteries: 1) Charge battery once it is down to 20% capacity. Do not allow battery to drop below 20% power before charging. Discharging the battery’s banks too far will harm the battery, permanently impacting the performance and endurance of the battery.
-
Page 11: Warranty Claims
need to be charged, thus increasing the battery’s lifespan. The battery must cool before being placed back into service or it may overheat, potentially damaging both the battery and electrical circuits. WARRANTY CLAIMS This product is covered by a 2-year warranty against manufacturing defects. For all warranty claims, please email support@russelltaylors.com and include a copy of invoice or order ID number as proof of purchase.
