- Page 1 VACUUM SERIES INSTRUCTION MANUAL...
- Page 2 Safety Instructions Warning: Basic safety precautions should always be observed when using an electrical appliance, including the following to reduce the risk of fire, electrical shock or injury. Store the vacuum in a dry place out of reach of children. ⚫...
- Page 3 0% and recharge the battery regularly. The batteries are not replaceable. If you have a defective battery pack, ⚫ please contact the Russell Taylors service team at support@russelltaylors.com. Product Warranty This appliance has been designed for domestic dry vacuum cleaning ⚫...
-
Page 4: Description Of The Device
DESCRIPTION OF THE DEVICE 1. Metal tube release button button 10.On/Off Switch 2. Metal tube. 11.Speed control button 3. Floor brush release 12.Speed Indicator lights（3 levels） button 13.Adapter 4. Motorized floor brush 14.Wall mount 5. Ergonomic handle 15.Crevice tool 6. Detachable battery 16.2 in 1 brush tool pack 7. - Page 5 INSTRUCTIONS TO INSTALLATION ➢ Metal Tube ➢ 1) Insert the metal tube in to the main body until a click sound is heard. 2) Press the metal tube release button and remove the tube. ➢ Floor Brush Installation 1) Insert the motorized brush into the end of the tube until a click is heard.
-
Page 6: Before First Use
BEFORE FIRST USE Charging Charging port Plug the adapter into the charging port and then plug the other side of the adapter into the power outlet. Note: Charge the battery before the first use. It is recommended to charge the battery full before the first use. Do not charge the battery for extended periods, as this may damage the battery. - Page 7 Indicator Lights (All green color) (A) While charging Charging from low to high: lights flashing in turn until all three lights Fault: All three lights flashing at the same time, please check if the brush roller is stuck or you can contact the customer service center. (B) During discharging or running.
- Page 8 INSTRUCTIONS TO USE Cleaning Accessories - Motorized floor brush: Suitable for rugs and hard floors. - Long crevice tool: Suitable for cleaning the trash in the corners, gaps, baseboard edges, and other hard-to- reach places. - 2 in 1 brush tool: Use the brush to clean upholstered surfaces, keyboards, lamps, curtain, blinds, vents, etc.
- Page 9 3. Press the speed control button to adjust the suction power levels. Wall mount installation: 1) Keep the bottom line of wall mount at least 120cm to the floor. 2) Screw the holder into the wall then hang the unit in the wall mount holder.
-
Page 10: Cleaning And Maintenance
CLEANING AND MAINTENANCE Dust Container and Filters Cleaning Note: Clean the dust container and filters monthly to maintain the performance of the vacuum cleaner. 1. Press the button to open the dust tank cover; Or twist and pour out the garbage from dust tank. - Page 11 Note: Clockwise to unlock Counter-clockwise to lock Post-Motor Filter & Filter Mask Cleaning Note: Clean the post-motor filter every month. 1. Turn the filter cover counter to remove it. 2. Lift out post-motor HEPA filter. 3. Shake to remove dust. Wash the HEPA under cold water. 4.
- Page 12 Floor Brush Cleaning 1. Remove the clip，Take out the roller brush。 2. Remove the hair and debris around the brush roller by fingers or knife. 3. Wash the brush roller under running water. 4. Completely dry the brush roller before assembling.
-
Page 13: Troubleshooting
5. Put the roller brush back，Install the clip back TROUBLESHOOTING If you encounter a problem with your device or if you suspect the device is not working properly, you can make a few simple checks before calling a technician. Problem Solution No power Before using the appliance, check that it is fully... - Page 14 Unplug the unit, check for clogged hair or dirt. If necessary, remove the rotating shaft from the motorized power brush by unlocking the latch, clean and brush is reposition the shaft by performing the reverse procedure. turning. Make sure that the axle has been properly inserted into the power brush and the latch is in the locked position.
Need help?
Do you have a question about the X1 and is the answer not in the manual?
Questions and answers

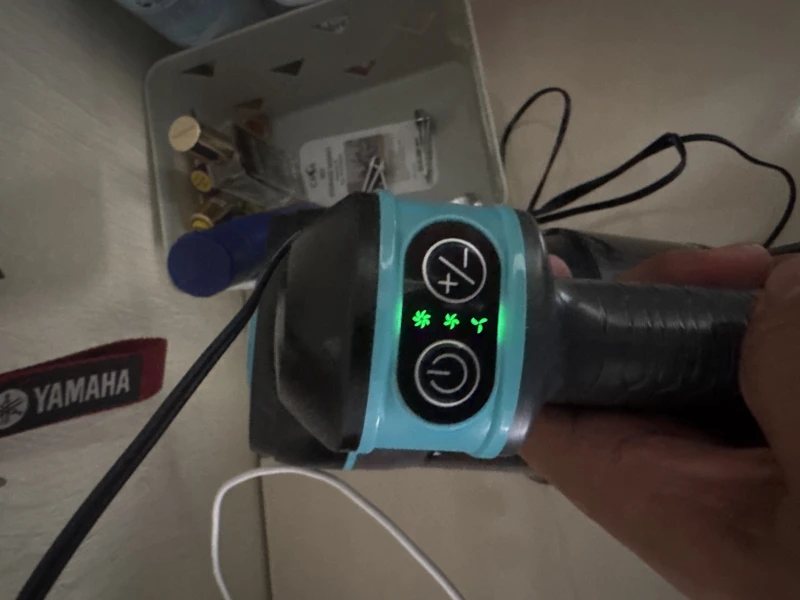

When im turn on, the 3 symbol come out and not working
When the Russell Taylors X1 is turned on and not working, and all three indicator lights are flashing at the same time, it indicates a fault. This may be due to a stuck brush roller.
