Randell 9560 Operator's Manual

OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
888-994-7636, fax 888-864-7636
unifiedbrands.net
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE.
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS CONTAINED
IN THIS MANUAL.
FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the
consignee to inspect the container upon receipt of same and to determine
the possibility of any damage, including concealed damage. Randell suggests
that if you are suspicious of damage to make a notation on the delivery
receipt. It will be the responsibility of the consignee to file a claim with the
carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
EQUIPMENT DESCRIPTION
MODEL LENGTH DEPTH
9560-1 18.5" 26"
9560-2 31.75" 26"
9560-3 45.5" 26"
9560-4 59.25" 26"
9560-5 73" 26"
9560-6 86.75" 26"
MODEL LENGTH DEPTH
9570-2 31.25" 26"
9570-3 43.75" 26"
9570-4 56.5" 26"
9570-5 69.25" 26"
9570-6 82" 26"
Information contained in this document is known to be current and accurate at the time of printing/creation. Reference our product line website for the most
updated product information and specifications. © 2023 Electrolux Professional, Inc. All Rights Reserved.
READ,
CUT OUT SIZE
12' x 20'
PAN
CAPACITY
UNIT CONTROL PANEL
1 16.5" x 22.63" 14.25" x 5.75"
2 30.125" x 22.63" 14.25" x 5.75"
3 43.75" x 22.63"
4 57.375" x 22.63"
5 71" x 22.63"
6 84.625" x 22.63"
CUT OUT SIZE
12' x 20'
PAN
CAPACITY
UNIT
2 28.25" x 22.63"
3 40.75" x 22.63"
4 53.375" x 22.63"
5 66.25" x 22.63"
6 79.9375" x 22.63"
This manual provides information for:

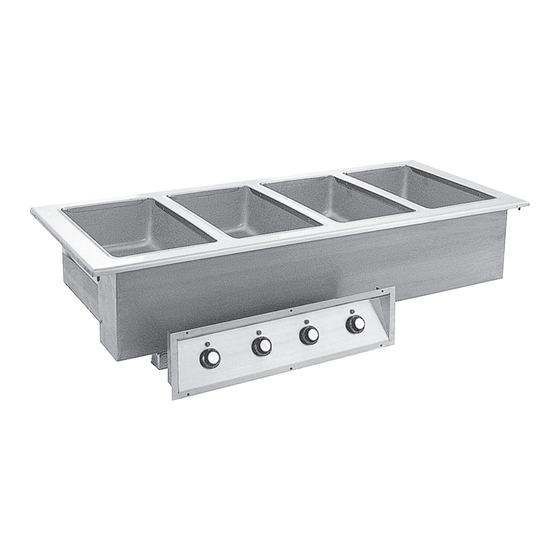

DROP-IN SERIES HEATED WELLS
MODELS 9560 & 9570
95604
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE: Due to a continuous program of product improvement, Randell reserves the
right to make changes in design and specifications without prior notice.
NOTICE: Please read the entire manual carefully before installation. If certain
recommended procedures are not followed, warranty claims will be denied.
MODEL NUMBER _________________________
SERIAL NUMBER _________________________
INSTALLATION DATE ______________________
The serial number is located on the control panel. An
example is shown here.
#
WATTAGE
ELEMENTS
1 1100
2 2200
20" x 5.75" 3 3300
26" x 5.75" 4 4400
32" x 5.75" 5 5500
38" x 5.75" 6 6600
#
ELEMENTS
CONTROL PANEL
14" x 5.75" 1
14" x 5.75" 1
14" x 5.75" 2
14" x 5.75" 2
14" x 5.75" 2
PART NUMBER MNL0030 REV. B (08/23)
9570-2
AMPERAGE @ 60HZ/1PH
(AMPS)
120V 208V 240V
9.2 5.3 4.6
18.3 10.6 9.2
27.5 15.9 13.8
36.7 21.2 18.3
45.8 26.4 22.9
55 31.7 27.5
AMPERAGE @ 60HZ/1PH
(AMPS)
WATTAGE
208V 240V
3000 14.4 12.5
3000 14.4 12.5
6000 28.8 25
6000 28.8 25
6000 28.8 25
SHIP WT
(LBS)
60
85
103
170
230
290
SHIP WT
(LBS)
110
135
160
185
210
