Randell RCS-24 Operator's Manual

OPERATOR MANUAL
IMPORTANT INFORMATION, KEEP FOR OPERATOR
2016 Gees Mill Road, Suite 200, Conyers, GA 30013
888-994-7636, fax 888-864-7636
unifiedbrands.net
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
FOR YOUR SAFETY Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
WARNING R290 flammable refrigerant in use. Improper installation,
adjustment, alteration, service or maintenance can cause property
damage, injury or death. Read the installation, operating and maintenance
instructions thoroughly before installing or servicing this equipment.
NOTIFY CARRIER OF DAMAGE AT ONCE It is the responsibility of the
consignee to inspect the container upon receipt of same and to determine
the possibility of any damage, including concealed damage. Unified
Brands suggests that if you are suspicious of damage to make a notation
on the delivery receipt. It will be the responsibility of the consignee to file
a claim with the carrier. We recommend that you do so at once.
Manufacture Service/Questions 888-994-7636.
EQUIPMENT DESCRIPTION
RCS-24-WS
MODEL LENGTH
RCS-24-WS
24"
RCS-24
24"
*Depth = 34" with 1" standoff bumpers
HEIGHT
DEPTH*
WORK SURFACE REAR OF UNIT
33" 36"
33" 36"
Information contained in this document is known to be current and accurate at the time of printing/creation. Unified Brands
recommends referencing our product line websites, unifiedbrands.net, for the most updated product information and
specifications. The company reserves the right of final interpretation of the user manual. Information subject to change without
notice. © 2021 Unified Brands. All Rights Reserved. Unified Brands is a wholly-owned subsidiary of Dover Corporation.
This manual provides information for:
RCS-24-WS
WITH INTEGRAL SCALE
RCS-24
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE: Due to a continuous program of product improvement, Unified Brands
reserves the right to make changes in design and specifications without prior notice.
NOTICE: Please read the entire manual carefully before installation. If certain
recommended procedures are not followed, warranty claims will be denied.
MODEL NUMBER _________________________
SERIAL NUMBER _________________________
INSTALLATION DATE ______________________
The serial number is located on the right side inside
the base cabinet behind the grilled hinged door. An
example is shown here.
RCS-24
INTEGRATED CHEESE BIN
SCALE STORAGE CU. FT.
41" YES 1.25
41" NO 1.25
PART NUMBER PP MNL2103, REV. A (06/21)

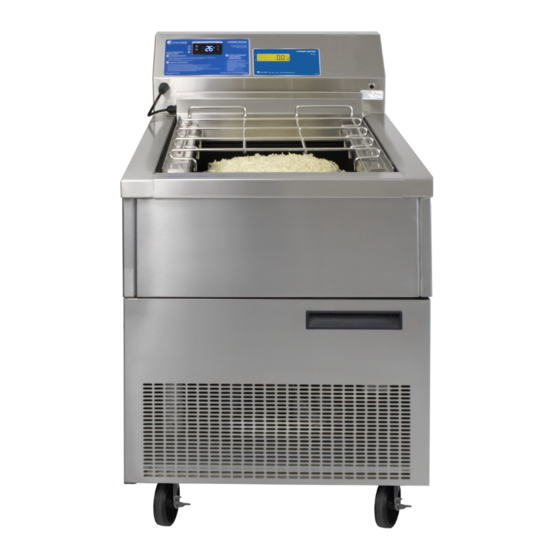

24" CHEESER STATION™
24" CHEESER STATION™
VOLT/CYCLE/
HP
PHASE
1/4 115/60/1
1/4 115/60/1
(SHOWN)
NEMA
AMPS SHIP WT.
PLUG
1.8 5-15P 180
1.8 5-15P 180
