Summary of Contents for Kobold NSED

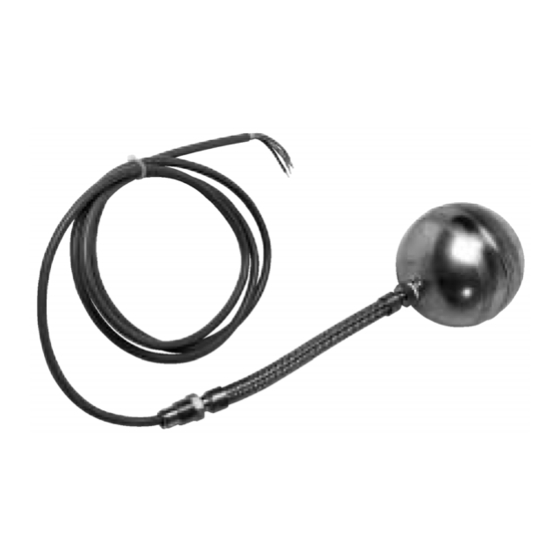

- Page 1 Operating Instructions Floating Switch Model: NSED / NSEK...
- Page 2 NSED / NSEK 1. Contents Contents ......................2 Note ......................3 Instrument Inspection ..................3 Regulation Use ..................... 3 Mechanical Connection ................. 4 Electrical Connection ..................5 General ....................5 ...
- Page 3 Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The instruction manuals on our website www.kobold.com are always for currently manufactured version of our products. Due to technical changes, the instruction manuals available online may not always correspond to the product version you have purchased.
- Page 4 NSED / NSEK 5. Mechanical Connection Before installation: Remove all transport packaging and ascertain that no packaging material is left in the instrument Please make sure that the allowable maximum operating pressure and operating temperature of the instruments will not be exceeded (see standard material combinations).
- Page 5 NSED / NSEK 6. Electrical Connection 6.1 General Warning! Make sure that the maximum voltage / power values of level switch will not be exceeded. When raising: black/ blue: closing black/ brown opening 6.2 Connection Examples NSEK K07/0923 page 5...
- Page 6 NSED / NSEK 7. Technical Information Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 8. Order Codes Operating instructions, data sheet, approvals and further information via the QR code on the device or via www.kobold.com 9.
- Page 7 NSED / NSEK 10. Disposal Note! Avoid environmental damage caused by media-contaminated parts Dispose of the device and packaging in an environmentally friendly manner Comply with applicable national and international disposal regulations and environmental regulations. Batteries Batteries containing pollutants are marked with a sign consisting of a crossed-out...
- Page 8 NSED / NSEK 11. EU Declaration of Conformance We, KOBOLD Messring GmbH, Nordring 22-24, 65719 Hofheim, Germany, declare under our sole responsibility that the product Floating Switch Model: NSED / NSEK to which this declaration relates is in conformity with the following EU directives...
