Summary of Contents for Kobold NSM

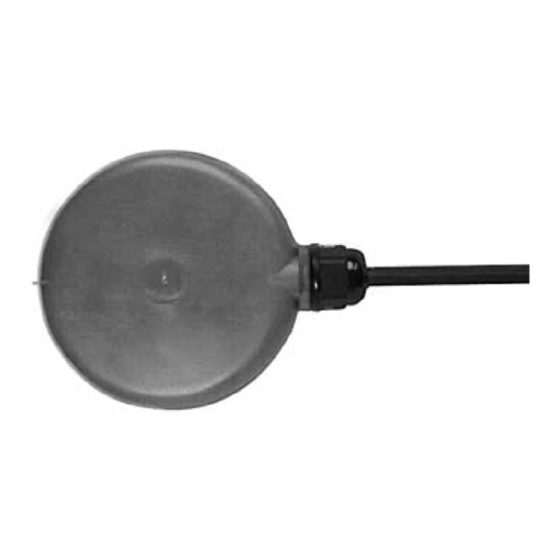

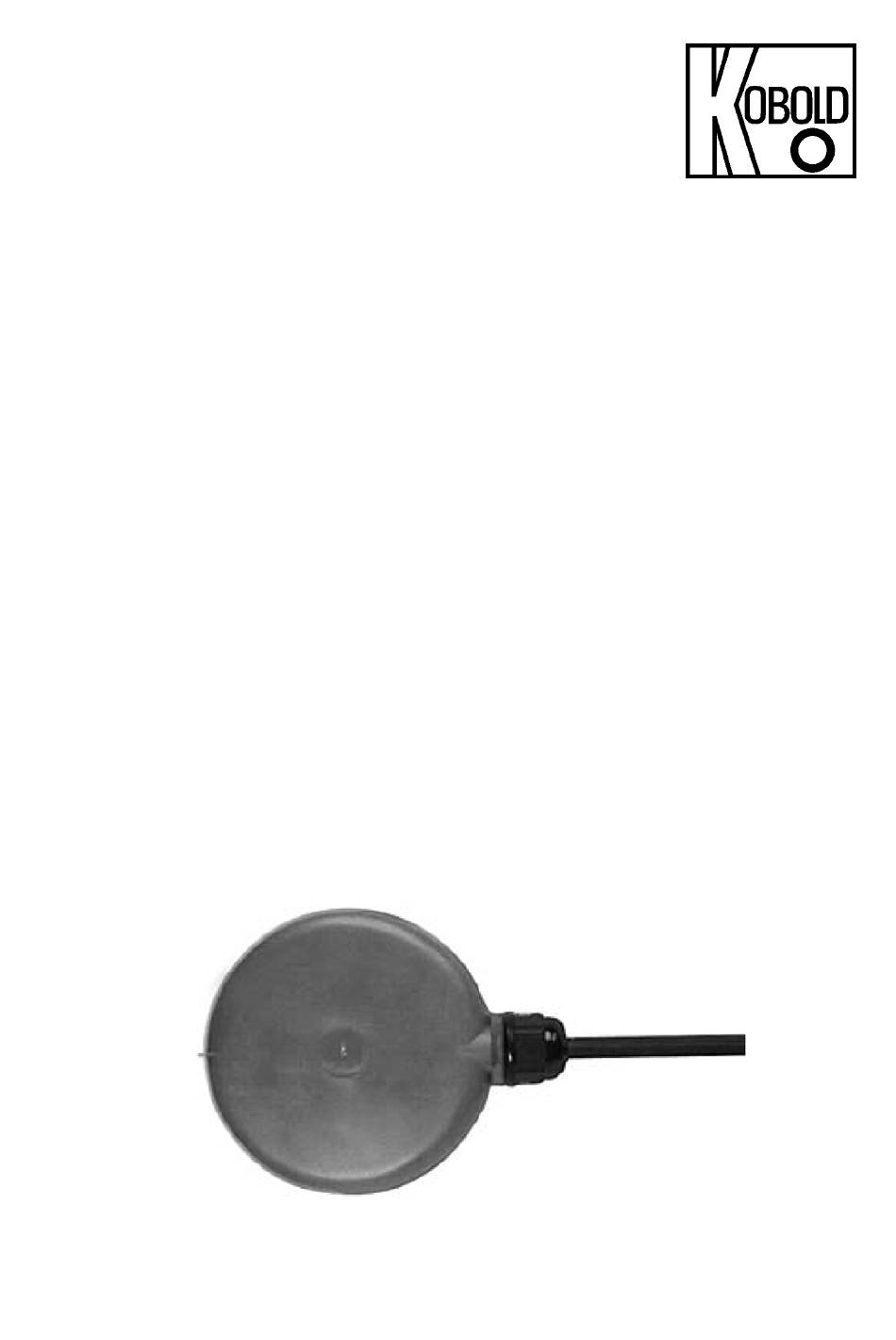

- Page 1 Operating Instruction Float Switch Model: NSM...
-
Page 2: Table Of Contents
Order Codes ............... 6 Dimensions ................. 7 EU Declaration of Conformance ......... 8 Manufactured and Marketed by: Kobold Messring GmbH Nordring 22-24 D-65719 Hofheim Tel.: 06192-2990 Fax: 06192-23398 Internet: http: //www.kobold.com e-mail: info.de@kobold.com Page 2 NSM K01/1016... -
Page 3: Note
Operating instruction 4. Regulation Use These units of type NSM are employed for purposes of monitoring the filling-level status of liquids. Only such liquids may be measured which are compatible with the materials used in the construction of these units. -
Page 4: Operating Principle
Attention: The bending radius of the cable is 15-times of the cable diameter. Neoprene cable: approx. 11 cm The cable should not be bound with strap-hardened cable binder and not in a vertical direction, if possible. The use of bending protection trumpets is recommended. Page 4 NSM K01/1016... -
Page 5: Electrical Connection
After connecting desired external devices to the limit-contact, the device is ready for use. 8. Maintenance Providing that, the medium to be measured is not contaminated, the NSM unit is maintenance-free. NSM K01/1016 Page 5... -
Page 6: Technical Information
250 VAC, max. 2 A Class of protection: IP 68 Hysteresis: min. 140 mm max. 500 mm 10. Order Codes Example: NSM-02NEO Description Order no. Standard: 2 m neoprene cable NSM-O2 NEO Option: silicone-rubber-insulated non-sheathed cable NSM-YY SIL Please specify cable length in clear text. -
Page 7: Dimensions
11. Dimensions NSM K01/1016 Page 7... -
Page 8: Eu Declaration Of Conformance
12. EU Declaration of Conformance We, Kobold-Messring GmbH, Hofheim-Ts., Federal Republic of Germany, declare that the product Float Switch Type: NSM... to which this declaration relates is in conformity with the standards noted below: EN 60730-1:2012 Automatic electrical controls for household and similar use -...
