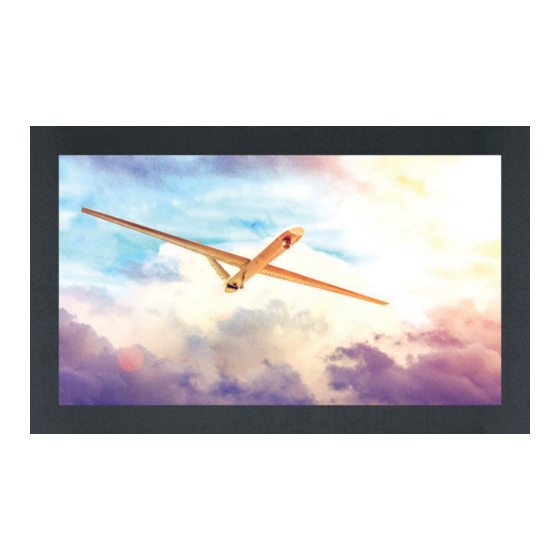

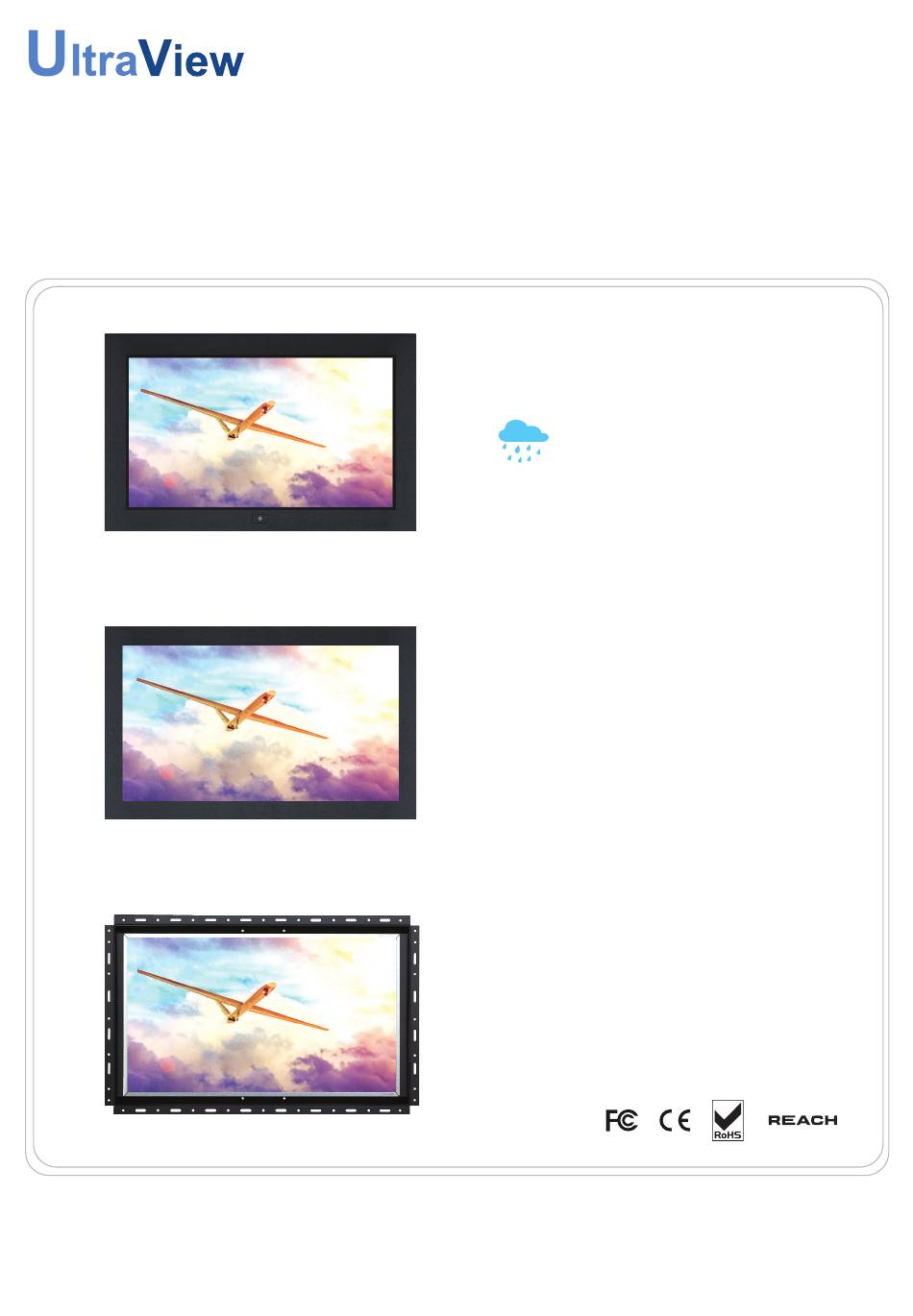

- Page 1 LCD display solutions User Manual Professional High Brightness FHD 24” LED Monitor HAP-F24 Aluminum front bezel HNAP-F24 Front NEMA4 / IP65 HDP-F24 Aluminum Front Panel HOP-F24 Universal Open Frame Designed and manufactured by Austin Hughes UM-UV-621-HF24-Q323V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, September 2023 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > HAP-F24 / HNAP-F24 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > HDP-F24 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 3 > HOP-F24 Package Content Structure Diagram &... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 5 < Part 1 > HAP-F24 / HNAP-F24 < 1.1 > Package Content High Brightness 24” FHD LED Monitor HAP-F24 / HNAP-F24 24” FHD LED Monitor X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1...
- Page 6 < 1.2 > Structure Diagram Front view Side View HAP-F24 / HNAP-F24 Bottom view Rear case Rear view LCD panel Protective 3mm glass 6mm aluminum front bazel Audio speaker, pair LCD membrane Remote sensor Product Dimension Packing Dimension Gross Model...
-
Page 7: Part. 1 > Hap-F24 / Hnap-F24
< 1.2 > Dimension High Brightness 24” FHD LED Monitor Front View Side View HAP-F24 / HNAP-F24 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-HF24-Q323V1 www.austin-hughes.com... - Page 8 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...
-
Page 9: Package Content
< Part 2 > HDP-F24 High Brightness 24” FHD LED Monitor < 2.1 > Package Content HDP-F24 24” FHD LED Monitor X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Audio HDMI HDMI HDMI Power DVI-D out - in - in... -
Page 10: Structure Diagram & Dimension
< 2.2 > Structure Diagram Front view Side View HDP-F24 Bottom view Rear case Rear view LCD panel 6mm aluminum front cover Audio speaker, pair LCD membrane Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 601.2 x 65.6 x 370.3 mm... -
Page 11: Part. 2 > Hdp-F24
< 2.2 > Dimension High Brightness 24” FHD LED Monitor Front View Side View HDP-F24 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-HF24-Q323V1 www.austin-hughes.com... - Page 12 < 2.3 > VESA mount Installation M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-UV-621-HF24-Q323V1 www.austin-hughes.com...
-
Page 13: Package Content
< Part 3 > HOP-F24 < 3.1 > Package Content High Brightness 24” FHD LED Monitor HOP-F24 24” FHD LED Monitor X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Audio HDMI HDMI HDMI Power DVI-D out - in - in... -
Page 14: Structure Diagram & Dimension
< 3.2 > Structure Diagram Front view Side View HOP-F24 Bottom view Rear case LCD panel Audio speaker, pair Rear view Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension Gross... -
Page 15: Part. 3 > Hop-F24
< 3.2 > Dimension High Brightness 24” FHD LED Monitor Front View Side View HOP-F24 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-HF24-Q323V1 P.11 www.austin-hughes.com... - Page 16 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided UM-UV-621-HF24-Q323V1 P.12 www.austin-hughes.com...
- Page 17 Intentionally Left Blank UM-UV-621-HF24-Q323V1 P.13 www.austin-hughes.com...
-
Page 18: Product Specifi Cations
< Part 4 > < 4.1 > Product Specifi cations Mechanical Design HAP-F24 HNAP-F24 HDP-F24 HOP-F24 Protection 6mm front bezel NEMA 4 / IP65 front cover open frame Front Panel Black, RAL 9005 Rear Casing Black, RAL 9005 VESA mount... - Page 19 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specifi cation HAP-F24 HNAP-F24 HDP-F24 HOP-F24 Product ( W x D x H ) 631.2 x 70.1 x 400.3 601.2 x 65.6 x 370.3 628.2 x 63.6 x 397.3...
-
Page 20: On-Screen Display Operation ( Osd )
< 4.2 > On-screen Display Operation ( OSD ) Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital &... - Page 21 High Brightness 24” FHD LED Monitor Color Color temperature : User / Warm / Cool / 5400k mode and Red / Green / Blue color balance Sharpness : Adjust the image from weak to sharp : Adjust the screen hue value Saturation : Adjust the saturation of the image color Dynamic...
-
Page 22: Option Table
< Part 5 > Options < 5.1 > Option Table Options HAP / HNAP ✓ ✓ ✓ SDI * ✓ ✓ ✓ DVI-D ** ✓ ✓ ✓ Composite ( BNC ) *** ✓ ✓ ✓ Audio ✓ ✓ ✓ Touchscreen ✓... - Page 23 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with UltraView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 24 LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters. Designed for use with UltraView LCD displays, Austin Hughes provides a MCS input module without using additional space or power and it comes standard with a 2-year warranty.
- Page 25 < 5.4 > Options : High Brightness 24” FHD LED Monitor Speaker Option Bottom view speaker DP Option - Display Port ( DP 1.0, HDCP 1.3 - HDMI 2.0 ( HDMI 2.0, HDCP 2.2 ) - HDMI 1.4 ( HDMI 1.4, HDCP 1.4 ) - Audio ( Audio input &...
- Page 26 < 5.5 > How to Use RC-2 Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds.
- Page 27 Intentionally Left Blank UM-UV-621-HF24-Q323V1 P.23 www.austin-hughes.com...
- Page 28 < 5.6 > Options : Touchscreen & driver HF24" USB Touchscreen Specifi cation Model e-Resistive Technology 5-Wire Resistive Touch Point Single Input Type Finger or Stylus Resolution 2048 x 2048 Touch Point Accuracy Response Speed 15 ms Activation Force ≤ 50 g Surface Hardness Light Transmission 80% ±...
- Page 29 Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.austin-hughes.com/resources/driver/ultraview Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to fi nish the setup Step 4.
- Page 30 < 5.7 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA 35 mA - Full load...
- Page 31 < 5.8 > Options : MIL-type or Lockable Connector High Brightness 24” FHD LED Monitor Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most...
- Page 32 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2023 Austin Hughes Electronics Ltd. All rights reserved. UM-UV-621-HF24-Q323V1 P.28 www.austin-hughes.com...
