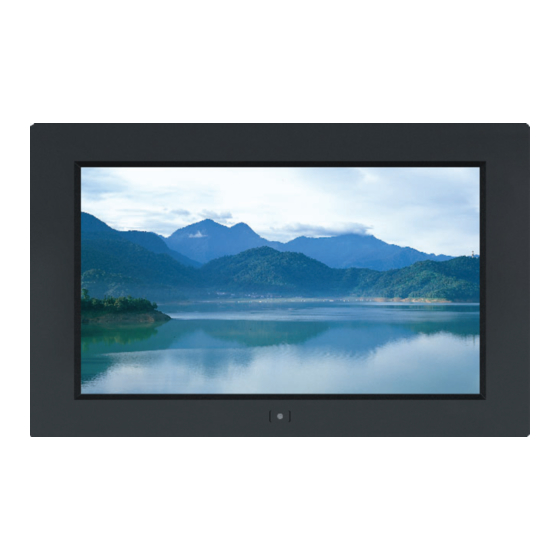

- Page 1 LCD display solutions User Manual 19” FHD LCD AP-F19 / HAP-F19 Aluminum front bezel NAP-F19 / HNAP-F19 Front NEMA4 / IP65 DP-F19 / HDP-F19 Aluminum Front Panel OP-F19 / HOP-F19 Universal Open Frame Designed and manufactured by Austin Hughes UM-UV-621-F19-Q323V1 www.austin-hughes.com...
- Page 2 Legal Information First English printing, July 2023 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
-
Page 3: Table Of Contents
Contents < Part. 1 > AP-F19 / NAP-F19 / HAP-F19 / HNAP-F19 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 2 > DP-F19 / HDP-F19 Package Content Structure Diagram & Dimension Mounting Hardware & Installation < Part. 3 >... - Page 4 Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content.
- Page 5 < Part 1 > AP-F19 / NAP-F19 / HAP-F19 / HNAP-F19 < 1.1 > Package Content 19" FHD LCD Display AP-F19 / NAP-F19 HAP-F19 / HNAP-F19 19” FHD LCD display X 1 6ft VGA cable X 1 Power adapter X 1...
- Page 6 < 1.2 > Structure Diagram Front view Side View AP-F19 / NAP-F19 HAP-F19 / HNAP-F19 Bottom view Rear case Rear view LCD panel Protective 3mm glass 6mm aluminum front bazel Audio speaker, pair LCD membrane Remote sensor Product Dimension Packing Dimension...
-
Page 7: Ap-F19 / Nap-F19 / Hap-F19 / Hnap-F19
< 1.2 > Dimension 19" FHD LCD Display Front View Side View AP-F19 / NAP-F19 HAP-F19 / HNAP-F19 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-F19-Q323V1 www.austin-hughes.com... - Page 8 < 1.3 > Installation ( I ) Panel mount M4*50mm screw M4*6mm screw Mounting bracket x 8 pcs x 8 pcs x 4 pcs Hardware set part no. UV-BK#2 Steps ■ Install 4 mounting brackets with 8 x M4*6mm screws ■...
-
Page 9: Package Content
< Part 2 > DP-F19 / HDP-F19 19" FHD LCD Display < 2.1 > Package Content DP-F19 / HDP-F19 19” FHD LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Mounting hardware X 1 pack - Mounting bracket x 4 pcs - M4* 6mm screw x 8 pcs - M4* 50mm screw x 8 pcs... -
Page 10: Structure Diagram & Dimension
< 2.2 > Structure Diagram Front view Side View DP-F19 / HDP-F19 Bottom view Rear case Rear view LCD panel 6mm aluminum front cover Audio speaker, pair LCD membrane Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight DP-F19... -
Page 11: Part. 2 > Dp-F19 / Hdp-F19
< 2.2 > Dimension 19" FHD LCD Display Front View Side View DP-F19 / HDP-F19 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-F19-Q323V1 www.austin-hughes.com... - Page 12 < 2.3 > VESA mount Installation M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-UV-621-F19-Q323V1 www.austin-hughes.com...
-
Page 13: Package Content
< Part 3 > OP-F19 / HOP-F19 < 3.1 > Package Content 19" FHD LCD Display OP-F19 / HOP-F19 19” FHD LCD display X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 Audio HDMI HDMI HDMI Power... -
Page 14: Structure Diagram & Dimension
< 3.2 > Structure Diagram Front view Side View OP-F19 / HOP-F19 Bottom view Rear case LCD panel Audio speaker, pair Rear view Universal open frame mounting LCD membrane Extended remote sensor membrane cable ( 66cm from AD board to sensor end ) Product Dimension Packing Dimension Gross... -
Page 15: Part. 3 > Op-F19 / Hop-F19
< 3.2 > Dimension 19" FHD LCD Display Front View Side View OP-F19 / HOP-F19 Rear View UNIT : mm 1mm = 0.03937 inch Bottom View UM-UV-621-F19-Q323V1 P.11 www.austin-hughes.com... - Page 16 < 3.3 > Installation ( I ) Universal mount ( II ) VESA mount ( 100*100mm ) M4 screw Hardware and M4*4 pcs for VESA mounting are not provided UM-UV-621-F19-Q323V1 P.12 www.austin-hughes.com...
-
Page 17: Product Specifi Cations
< Part 4 > < 4.1 > Product Specifi cations 19" FHD LCD Display Mechanical Design AP-F19 / NAP-F19 / DP-F19 / OP-F19 / HAP-F19 HNAP-F19 HDP-F19 HOP-F19 Protection 6mm front bezel NEMA 4 / IP65 front cover open frame... - Page 18 5~95%, non-condensing Altitude 40,000 ft Shock 10G acceleration ( 11ms duration ) Vibration 10~300Hz 0.5G RMS random vibration Physical Specifi cation AP-F19 / NAP-F19 / DP-F19 / OP-F19 / HAP-F19 HNAP-F19 HDP-F19 HOP-F19 Product ( W x D x H ) mm 508.5 x 65.6 x 318.1...
-
Page 19: On-Screen Display Operation ( Osd )
< 4.2 > On-screen Display Operation ( OSD ) 19" FHD LCD Display Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control (To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen... - Page 20 Color Color temperature : User / Warm / Cool / 5400k mode and Red / Green / Blue color balance Sharpness : Adjust the image from weak to sharp : Adjust the screen hue value Saturation : Adjust the saturation of the image color Dynamic luminous control : Control the dynamic brightness OSD Set...
-
Page 21: Option Table
< Part 5 > Options < 5.1 > Option Table 19" FHD LCD Display AP / HAP / Options HNAP ✓ ✓ ✓ ✓ ✓ ✓ SDI * ✓ ✓ ✓ ✓ ✓ ✓ DVI-D ** ✓ ✓ ✓ ✓ ✓... - Page 22 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with UltraView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 23 LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters. Designed for use with UltraView LCD displays, Austin Hughes provides a MCS input module without using additional space or power and it comes standard with a 2-year warranty.
- Page 24 < 5.4 > Options : Speaker Option Side View speaker DP Option - Display Port ( DP 1.0, HDCP 1.3 - HDMI 2.0 ( HDMI 2.0, HDCP 2.2 ) - HDMI 1.4 ( HDMI 1.4, HDCP 1.4 ) - Audio ( Audio input &...
- Page 25 19" FHD LCD Display DVI-D Option - DVI-D ( DVI-D, TMDS single link ) - Audio ( Audio input & output ) - Speaker Audio Power DVI-D HDMI out - in - in Video PC DVI-D option come with RC-2 remote controller x 1 ( please refer to P.22 Remote Controller (RC-2) ) BNC Option - BNC...
-
Page 26: Remote Controller ( Rc-2 )
< 5.5 > How to Use RC-2 Remote Controller INPUT MUTE -/-- FREEZE AUTO MENU SELECT ASPECT SLEEP ENTER BACK EXIT SWAP SOURCE POSITION AUDIO INPUT Select the source Switches on or off the TV Only use in TV mode. Select channels. For channel numbers 10 and 0 - 9 above, enter the second digit within two seconds. -
Page 27: Projected Capacitive ( 10-Point Touch )
< 5.6 > Options : Touchscreen & driver 19" FHD LCD Display F19" USB Touchscreen Specifi cation Model TPC-10 Multi-touch e-Resistive Technology Projected Capacitive 5-Wire Resistive Touch Point Single Input Type Finger or Stylus Resolution 4096 x 4096 2048 x 2048 Touch Point Accuracy ±... - Page 28 Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.austin-hughes.com/resources/driver/ultraview Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to fi nish the setup Step 4.
- Page 29 19" FHD LCD Display < 5.7 > Options : DC Power Model 125V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 50 mA...
-
Page 30: Mil-Type Or Lockable Connector
< 5.8 > Options : MIL-type or Lockable Connector Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl... -
Page 31: Options For Sunlight Readable : Auto Dimming
19" FHD LCD Display < 5.9 > Options for Sunlight Readable : Auto Dimming DA-01 Light sensor on OP model DA-01 Light sensor on AP model ( 66cm from AD board to sensor end ) DA-01 light sensor installed on the display front panel. Users can set auto dimming ON or OFF from OSD menu. - Page 32 < 6 > Ultraview F19 Family 300 cd/m Brightness 1000 cd/m Sunlight Readable Brightness 6mm aluminum front bezel 6mm aluminum front bezel AP-F19 HAP-F19 6mm aluminum front bezel 6mm aluminum front bezel NEMA 4 / IP65 front protection NEMA 4 / IP65 front protection...
- Page 33 Intentionally Left Blank UM-UV-621-F19-Q323V1 www.austin-hughes.com...
- Page 34 Intentionally Left Blank UM-UV-621-F19-Q323V1 www.austin-hughes.com...
- Page 35 Intentionally Left Blank UM-UV-621-F19-Q323V1 www.austin-hughes.com...
- Page 36 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2023 Austin Hughes Electronics Ltd. All rights reserved. UM-UV-621-F19-Q323V1 www.austin-hughes.com...
