MultiFill
003-561-005 up to 003-565-005
Liquid dosing system
Vloeistof doseersysteem
Flüssigkeitsdosiersystem
Pompe remplissage automatique
liquide
EN
Installation and operation instructions
Article number: 010-106-000
Date: February 2022
Doetinchem,
Version 2.6 - Adjusted instruction manual
The Netherlands
According to Annex VIIA of the Machinery Directive 2006/42/EC for completed machinery
www.hanskamp.nl/en
Advertisement
Related Manuals for Hanskamp MultiFill 003-561-005
Summary of Contents for Hanskamp MultiFill 003-561-005

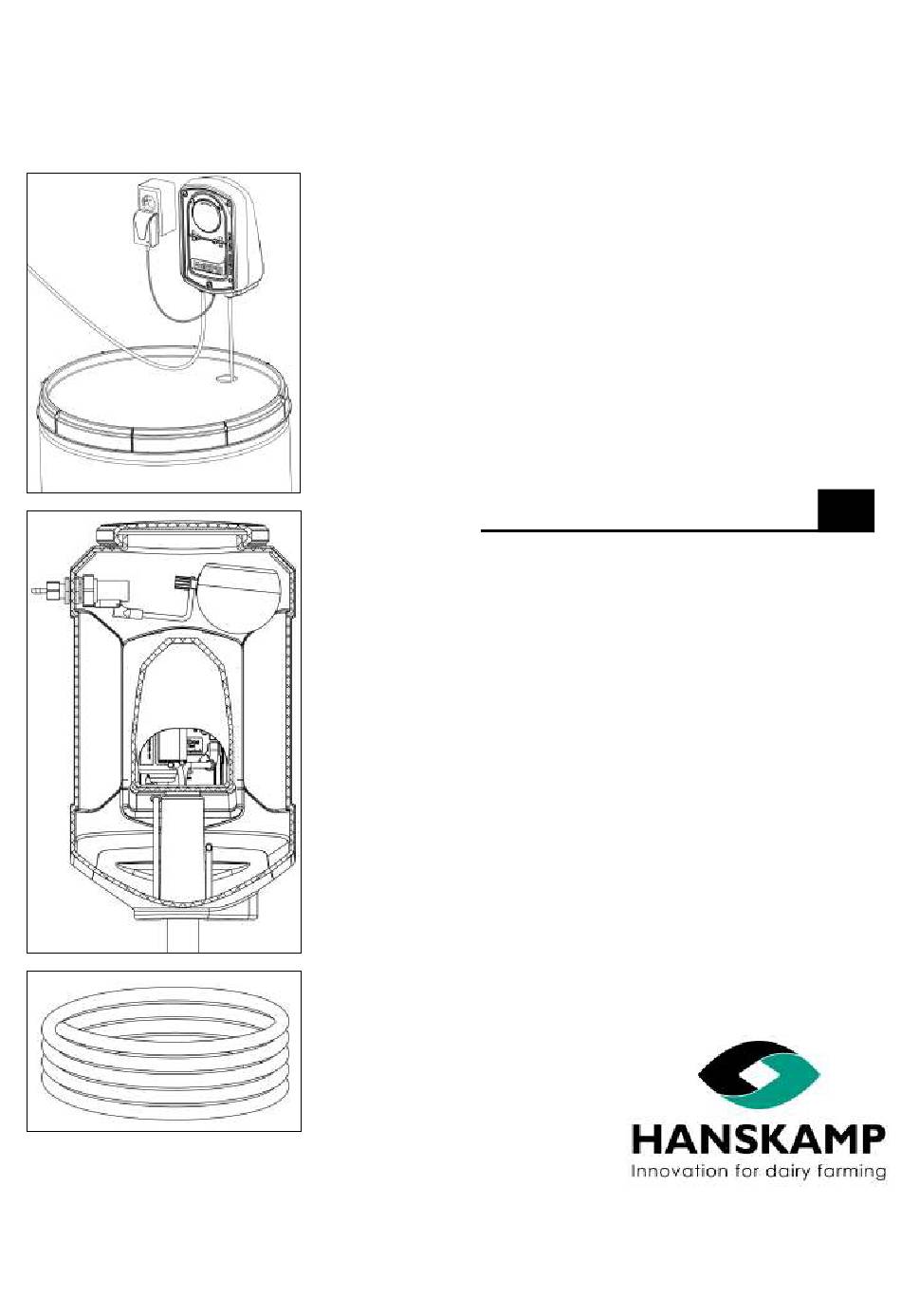

- Page 1 Liquid dosing system Vloeistof doseersysteem Flüssigkeitsdosiersystem Pompe remplissage automatique liquide Installation and operation instructions Article number: 010-106-000 Date: February 2022 Doetinchem, Version 2.6 - Adjusted instruction manual The Netherlands According to Annex VIIA of the Machinery Directive 2006/42/EC for completed machinery www.hanskamp.nl/en...
- Page 2 All information in this manual has been compiled with care. Hanskamp shall not be liable for errors or faults in this manual. The recommendations are meant to serve as guidelines.
- Page 3 The information in this manual is aimed at farmers and technicians. • Dairy farmers use the information to test and adjust the MultiFill or to list overviews. • Technicians use the information to install and set up the MultiFill. 3 - 20 Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en...
-
Page 4: Signal Words
Do not modify the equipment in any way. Unauthorized modification may impair the function and/or safety and could affect the life of the equipment, and persons. • Only use approved spare parts, and make sure they are installed by authorized technicians only. 4 - 20 Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en... - Page 5 Before the electrical supply is attached to the MultiFill, make sure all parts are installed firmly and that all the parts are in good condition. • Contact your nearest milking equipment dealer if you have any questions. 5 - 20 Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en...
- Page 6 General safety warnings are shown in this safety warnings section. Specific safety messages can be found in applicable parts of this manual when potential hazards may occur if the instructions or procedures are not followed. 6 - 20 Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en...
-
Page 7: Installation Instruction
Installation instruction General comment: The Hanskamp MultiFill dosing system is a refill system for automatically filling the MultiDos container. This installation instruction will guide you through the installation of the MultiFill system (fig. 1). Read this instruction carefully and follow the safety instructions. - Page 8 Use with low viscosity fluids only. Install large orifice (supply small orifice separately). Caution! Fill the container completely by hand the first time. Let the MultiFill refill only the last millilitres. 8 - 20 Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en...
- Page 9 Carefully open the cover of the motor housing. Push the cable of the power supply through the centre grommet. Strip the insulation at the ends of the wires. Distance between tube and plate: ± 8 mm 9 - 20 Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en...
- Page 10 Reset: power off -> power on On = alarm active + soundsignal Motor LED (red) Magnet LED (orange) On = signal on motor output On = magnet sensor detects magnet (not used) 10 - 20 Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en...
- Page 11 1x pressure hose = 50 m PVC hose Ø14x10 art. no. 001-007-001 Please note! Hanskamp can only guarantee proper operation if the length of the suction hose is 2 meters or less. Take the suction hose and push it, from below, onto the right-hand feedthrough coupling (art.
- Page 12 Please note! To prevent loss of liquid in case of leakage, the MultiFill stops automatically after 6 hours of continuous rotation and emits a sound signal. To restart the MultiFill, briefly disconnect the power supply and then reconnect it, using the power adapter. 12 - 20 Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en...
-
Page 13: Maintenance
6). A suitable repair kit can be obtained from Hanskamp. Also check the rollers and bearings for wear. For these too, Hanskamp can supply repair kits. Caution! Always disconnect the pump motor from the power supply before carrying out maintenance and/or disassembly. - Page 14 If the MultiFill is not connected and the stipulated securities are not complied with, this declaration of agreement becomes void and no rights can be derived from it. The Netherlands, Doetinchem 01-08-2019 H.J. Hanskamp 14 - 20 Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en...
- Page 15 Suction height 2 meters Pressure height 4 meters Max. length pressure hose 75 meters Control range Regulates between 2 and 0.8 bar Certificate NEN 3140 Power cord 3 meter cord with plug 15 - 20 Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en...
- Page 16 MultiFill Dosing system - Dosiersystem - Système de dosage - Doseersysteem Annex 2: Exploded view MultiFill and rotor (003-524-001) 003-514-000 003-514- 003-513-000 003-513- 003-508-000 003-507-000 003-504-001 003-503-000 Remove 003-516-000 16 - 20 Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en...
- Page 17 001-007-001 PVC hose Ø14x10 50 m 011-234-000 Housing for sensor PCB, grey 002-260-000 Float valve set MultiFill 082-342-002 Air tube PU/2 cm 4x2, transparent 082-342-029 Air tube PU/29 cm 4x2, transparent 17 - 20 Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en...
- Page 18 Temperature of fluid being transported as well as temperature of the operating environment. Frictional drag due to improper maintenance or wearing of rollers and guides. Twisting, kinking, or excess lengths of the HanskampQualityTube installed in the MultiFill. Wall thickness and thickness variation. 18 - 20 Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en...
- Page 19 No part of this publication may be reproduced or made public without prior permission in writing from Hanskamp AgroTech B.V. Although this publication was put together with the utmost care, Hanskamp AgroTech B.V. is not liable for any damage that might arise due to errors or gaps in this publication.
- Page 20 Dosing system - Dosiersystem - Système de dosage - Doseersysteem Hanskamp AgroTech B.V. Broekstraat 17 7009 ZB Doetinchem Visit us on: The Netherlands Tel: +31 (0)314 - 393 797 Fax: +31 (0)314 - 393 826 www.hanskamp.nl/en 20 - 20 Hanskamp AgroTech B.V. (The Netherlands) www.hanskamp.nl/en...
