Panasonic S-15MY3E Operating Instructions Manual
Hide thumbs
Also See for S-15MY3E:
- Installation instructions manual (188 pages) ,
- Operating instructions manual (72 pages)
Table of Contents
Advertisement
Quick Links

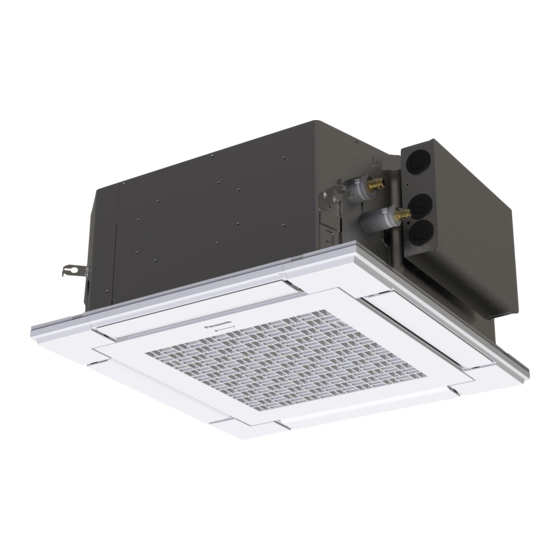

4-Way Cassette 60 × 60
Model No.
INDOOR UNIT
4-Way Cassette 60 × 60
(Type Y3)
S-15MY3E
S-36MY3E
S-22MY3E
S-45MY3E
S-28MY3E
S-56MY3E
● Connectable outdoor unit lineup
OUTDOOR UNIT
Refrigerant type : R410A
mini VRF (Type LE1, LE2)
2WAY VRF (Type ME2)
3WAY VRF (Type MF3)
Refrigerant type : R32
mini VRF (Type LZ2)
ENGLISH
Before operating the unit, read these operating instructions thoroughly and
keep them for future reference.
(Type Y3)
Panasonic Corporation
1006, Oaza Kadoma, Kadoma City,
Osaka 571-8501, Japan
Operating Instructions
Air Conditioner
WEB-ACXF55-33570-EN
Advertisement
Table of Contents
Related Manuals for Panasonic S-15MY3E
Summary of Contents for Panasonic S-15MY3E
- Page 1 Before operating the unit, read these operating instructions thoroughly and keep them for future reference. 4-Way Cassette 60 × 60 (Type Y3) Model No. INDOOR UNIT 4-Way Cassette 60 × 60 (Type Y3) S-15MY3E S-36MY3E S-22MY3E S-45MY3E S-28MY3E S-56MY3E ● Connectable outdoor unit lineup OUTDOOR UNIT...
-
Page 2: Table Of Contents
Safety Precautions Thank you for purchasing this Panasonic product. This product is a commercial air conditioner indoor unit. Installation Instructions attached. Contents The following symbols used in this manual, alert you to potentially dangerous conditions to users, service personnel or... - Page 3 WARNING If the refrigerant comes in contact Do not use modified with a flame, it produces toxic cord, joint cord, gases. extension cord or unspecified cord to prevent For safety, be sure to turn the overheating and fire. air conditioner off and also to disconnect the power before cleaning or servicing.
- Page 4 WARNING Do not sit or step on the unit. The appliance shall be stored You may fall down accidentally. in a room without continuously operating open flames (for example: an operating gas If refrigerant R32 is used and appliance) and ignition sources R32 refrigerant leakage detection (for example: an operating electric sensor is connected to the indoor...
- Page 5 WARNING CAUTION This appliance is not intended for If the alarm display J01 appears, use by persons (including children) there is something wrong R32 with reduced physical, sensory refrigerant leakage detection or mental capabilities, or lack of sensor or its wiring connection to experience and knowledge, unless the indoor unit.
-
Page 6: Precautions For Use
Precautions for Use Installation Disposal of Old Equipment Only for European Union and countries with This air conditioner must be installed properly by qualified recycling systems installation technicians in accordance with the Installation This symbol on the products, packaging, and/ Instructions provided with the unit. -
Page 7: Names Of Parts
Names of Parts INDOOR UNIT Label (attached to the lid of electrical component box) Air intake grille This air conditioner incorporates a biocidal product. (air intake) Ionized air generated by a device incorporated in the air conditioner deactivates bacteria and viruses in the air, and on surfaces, and inhibits mould growth on surfaces. -
Page 8: Maintenance
Maintenance WARNING „ Indoor unit (e.g., Type Y3) Air outlet For safety, be sure to turn the air conditioner off and disconnect the power before cleaning. (Otherwise, electric shock or injury may Air intake result because the fan is rotating at high speed.) Do not pour water on the indoor unit. -
Page 9: Nanoe™ X Function
nanoe™ X Function Display during operation of nanoe™ X Example: Initial screen of remote controller CZ-RTC5B CZ-RTC6 series room A 20:30 (THU) SET TEMP. MODE FAN SPEED COOL °C °C FLAP : Under operation of nanoe™ X : Under operation of nanoe™ X nanoe™... - Page 10 X function. If you wish to set the internal cleaning function to OFF with CZ-RTC6 series remote controller, use Panasonic H & C Control App. This app is compatible with the following remote controllers. Check the model number shown in the label on the bottom of the remote controllers.
-
Page 11: Troubleshooting
Troubleshooting Check before consulting or requesting services. Symptom Cause / Action Sound like streaming water is heard • Sound of refrigerant liquid flowing inside unit during operation or after operation. • Sound of drainage water through drain pipe Noise Cracking noise is heard during operation •... -
Page 12: Before Requesting Services
Troubleshooting Symptom Cause / Action No operation (When the power is turned on immediately / • Operation is not activated for the first approx. 3 minutes When operation is stopped and resumed because the compressor protection circuit is activated. immediately) Noise occurs during heating operation. -
Page 13: Connectable Outdoor Unit
Connectable Outdoor Unit Europe „ Refrigerant type : R410A Outdoor unit type 4 HP 5 HP 6 HP 8 HP 10 HP 1-phase U-4LE2E5 U-5LE2E5 U-6LE2E5 – – 3-phase U-4LE2E8 U-5LE2E8 U-6LE2E8 – – 3-phase – – – U-8LE1E8 U-10LE1E8 3-phase –... - Page 14 Connectable Outdoor Unit Asia „ Refrigerant type : R410A Outdoor unit type 4 HP 5 HP 6 HP 8 HP 10 HP U-4LE2H4 U-5LE2H4 U-6LE2H4 – – 1-phase U-4LE2H4E* U-5LE2H4E* U-6LE2H4E* – – U-4LE2H7 U-5LE2H7 U-6LE2H7 – – 3-phase U-4LE2H7E* U-5LE2H7E* U-6LE2H7E* –...
-
Page 15: Specifications
Specifications Indoor unit 4-Way Cassette 60 × 60 Model Name S-15MY3E S-22MY3E S-28MY3E S-36MY3E S-45MY3E S-56MY3E Power source 220 - 230 - 240 V～ 50 - 60 Hz Cooling capacity 5,100 7,500 9,600 12,300 15,400 19,100 BTU/h Sensible Latent Heating capacity... -
Page 16: Outdoor Unit
Specifications Outdoor unit mini VRF (Type LZ2) Model Name U-4LZ2E5 U-5LZ2E5 U-6LZ2E5 Power source 220 - 230 - 240 V～ 50 Hz Cooling capacity 12.1 14.0 15.5 Heating capacity 12.5 16.0 16.5 Sound pressure level 52 / 54 53 / 56 54 / 56 dB(A) (Cooling / Heating) - Page 17 Specifications Outdoor unit mini VRF (Type LZ2) Model Name U-8LZ2E8 U-10LZ2E8 Power source 380 - 400 - 415 V 3N～ 50 Hz 22.4 28.0 Cooling capacity 76,500 95,600 BTU/h 25.0 28.0 Heating capacity 85,300 95,600 BTU/h Sound pressure level dB(A) Sound power level dB(A) Unit dimensions (H×W×D)
- Page 18 Customer care number ( Toll free ) : 1800 103 1333 ,1800 108 1333 Please see the Panasonic website for further information on collection centers, etc. or call the customer care toll-free number http://www.panasonic.com/in/corporate/sustainability/panasonic-india-i-recycle-program.html Do’s & Don’ts: E-waste (Management) Amendment Rules 2018 S.No.
