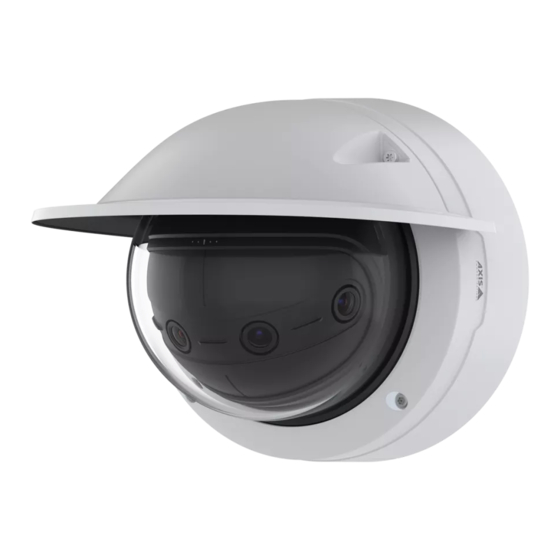

- Page 1 AXIS P38 Panoramic Camera Series AXIS P3818-PVE Panoramic Camera AXIS P3827-PVE Panoramic Camera Repainting instructions...
- Page 2 Risks with repainting There are several risks when disassembling or assembling an Axis product. There is always a certain yield loss during assembly. Training of operators and the use of correct tools mediates some of the problems but they can never be fully avoided. Some of the risks include: ESD Damage - Always handle the product in an ESD safe environment.
- Page 3 AXIS P38 Panoramic Camera Series Repaint the product Repaint the product Preparations • If applicable, disassemble the device according to the instructions in this document. • Clean all parts that will be repainted thoroughly to remove grease, dust, or oil.
- Page 4 AXIS P38 Panoramic Camera Series Repaint the product Disassembly Weathershield Screws (2x, TR20) Screws (4x, TR20) Dome Dome cover Camera unit...
- Page 5 AXIS P38 Panoramic Camera Series Repaint the product Spring clip Spring holder Mounting bracket 10 Lid 1. Remove the weathershield, if it’s already attached to the dome cover. 2. Remove the dome. 3. Remove the camera unit by pressing the two spring holders.
- Page 6 AXIS P38 Panoramic Camera Series Repaint the product 2. Apply a thin and even layer of spray paint according to the instructions of the paint manufacturer. 3. Let the paint dry. 4. To get a better coverage and clearer color, apply a second layer of spray paint.
- Page 7 Repainting instructions Ver. M2.2 AXIS P38 Panoramic Camera Series Date: August 2023 © Axis Communications AB, 2022 - 2023 Part no. T10185395...
