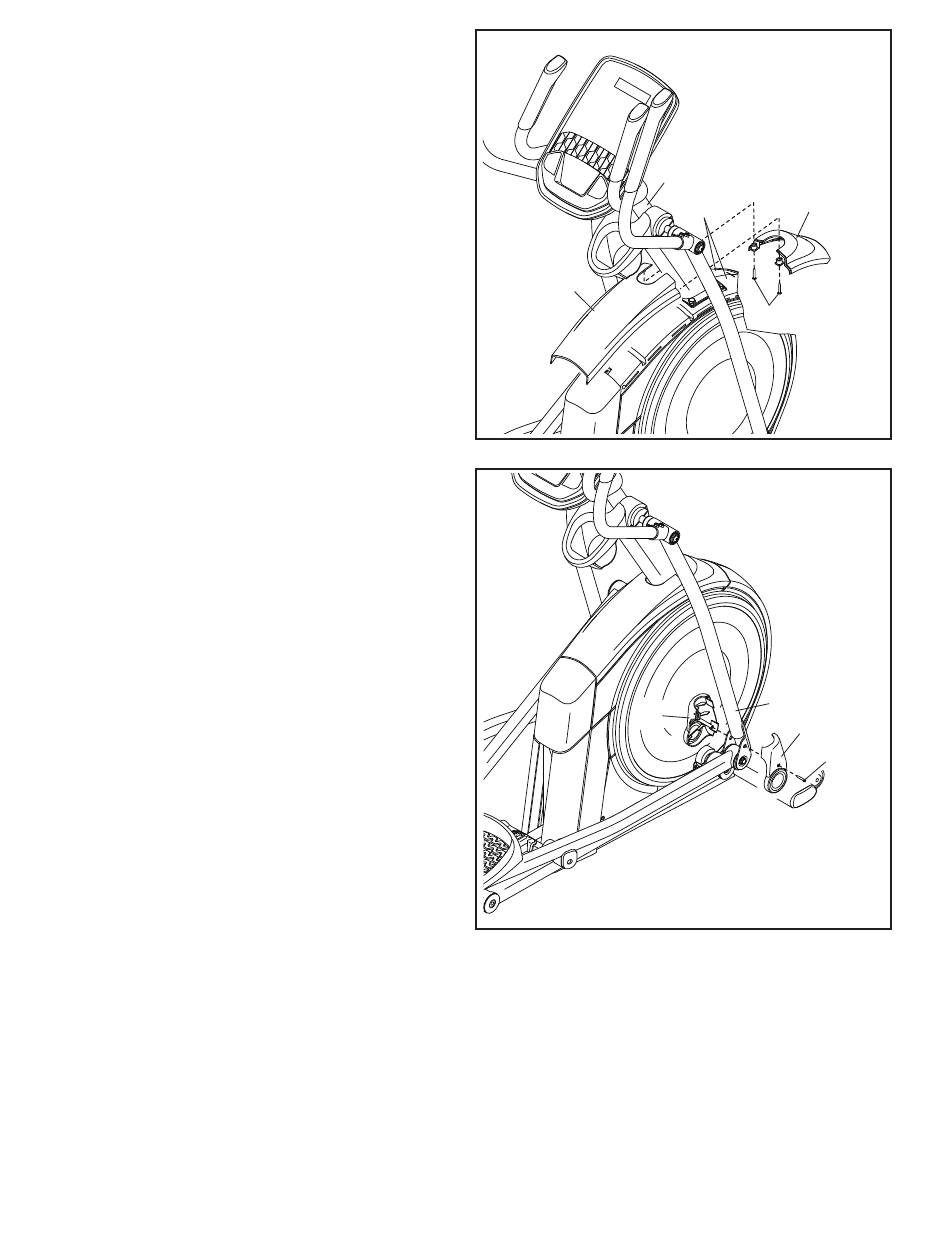

15. Orient the Front Shield Cover (117) and the
Center Shield Cover (75) around the Upright (4)
as shown. Then, attach them to each other with
two M4 x 16mm Screws (101).
Then, press the Front Shield Cover (117) and the
Center Shield Cover (75) into the Left and Right
Shields (73, 74).
16. Identify the Right Leg Inner Cover (83), orient it
as shown, and insert it through the Right Upper
Body Leg (60).
Next, identify the Right Leg Outer Cover (69),
orient it as shown, and press it onto the Right
Leg Inner Cover (83).
Attach the Right Leg Outer and Inner Covers
(69, 83) to each other with an M4 x 16mm
Screw (101).
Repeat this step on the other side of the
elliptical.
15
75
16
83
13
4
117
73, 74
101
60
69
101
