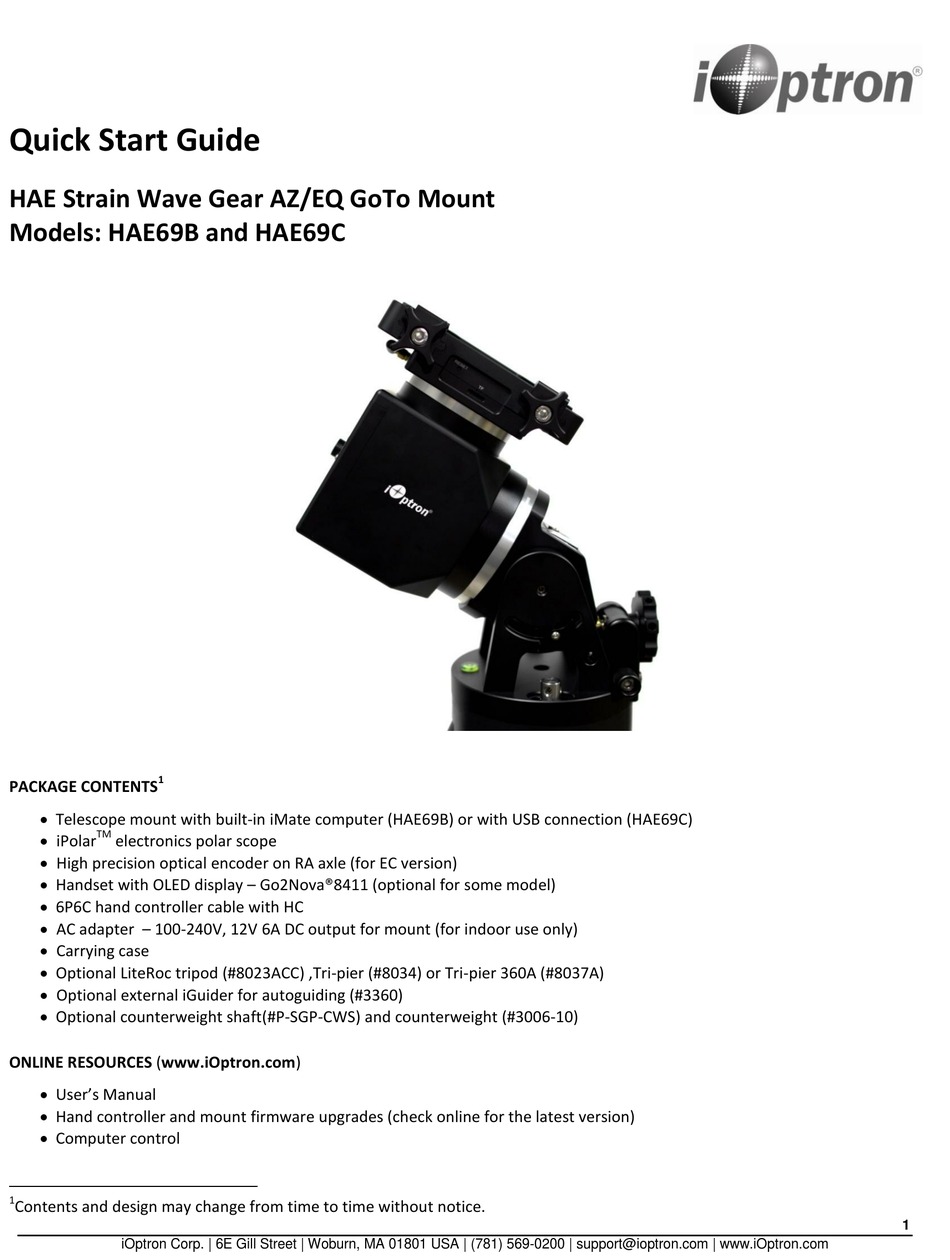

Quick Start Guide
HAE Strain Wave Gear AZ/EQ GoTo Mount
Models: HAE69B and HAE69C
1
PACKAGE CONTENTS
 Telescope mount with built-in iMate computer (HAE69B) or with USB connection (HAE69C)
 iPolar
TM
electronics polar scope
 High precision optical encoder on RA axle (for EC version)
 Handset with OLED display – Go2Nova®8411 (optional for some model)
 6P6C hand controller cable with HC
 AC adapter – 100-240V, 12V 6A DC output for mount (for indoor use only)
 Carrying case
 Optional LiteRoc tripod (#8023ACC) ,Tri-pier (#8034) or Tri-pier 360A (#8037A)
 Optional external iGuider for autoguiding (#3360)
 Optional counterweight shaft(#P-SGP-CWS) and counterweight (#3006-10)
ONLINE RESOURCES (www.iOptron.com)
 User's Manual
 Hand controller and mount firmware upgrades (check online for the latest version)
 Computer control
1
Contents and design may change from time to time without notice.
iOptron Corp. | 6E Gill Street | Woburn, MA 01801 USA | (781) 569-0200 | support@ioptron.com | www.iOptron.com
1
