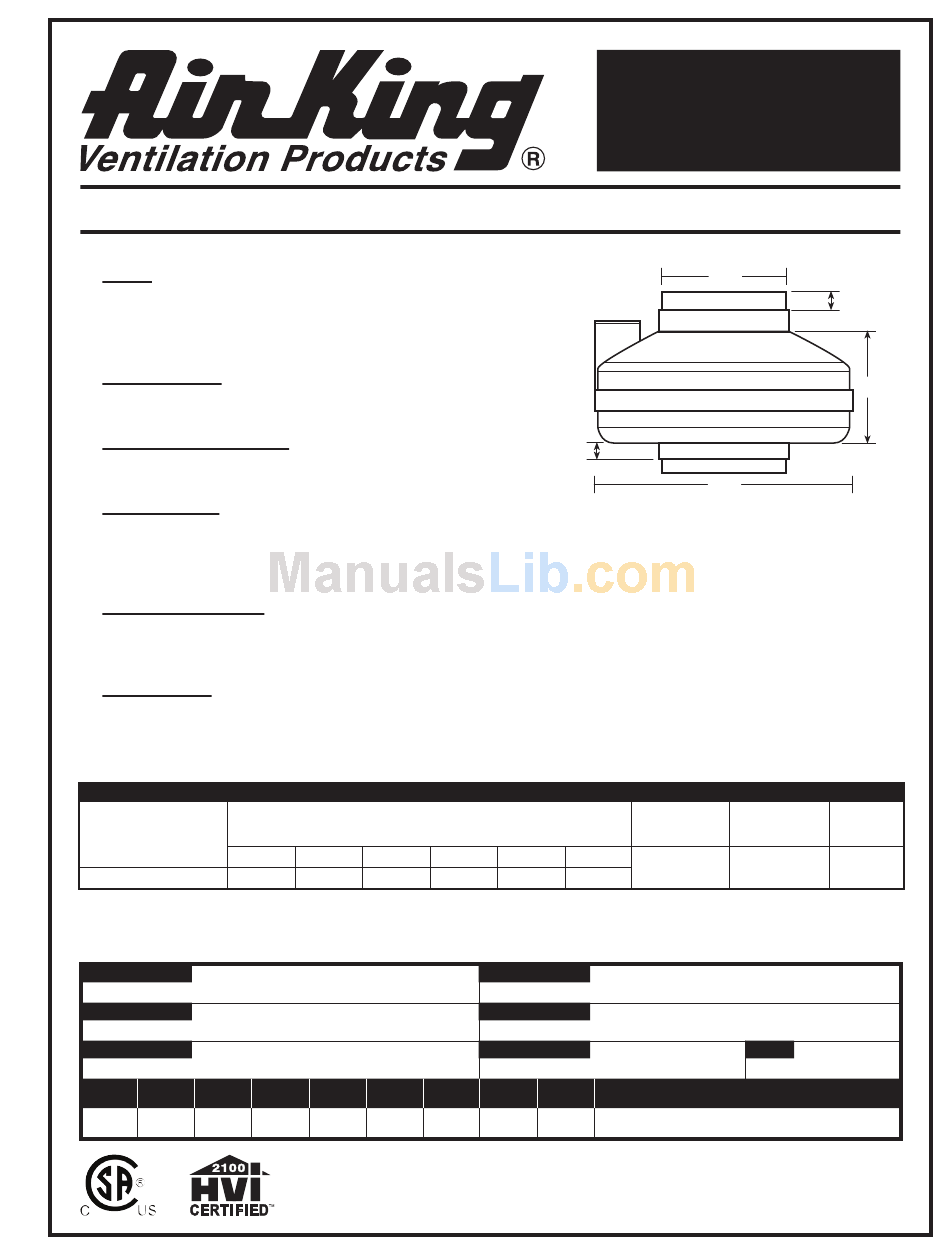

Air King AIDB4Y Specifications

Air king dryer booster fan specification sheet

Advertisement

• Motor

Enclosed 2 pole, life time lubrication, ball bearing motor.
Suitable for continuous operation. Maximum air temperature
140° F. 115 Volt, 60 Hz, .72 Amps

• Blower Wheel

Backward inclined, balanced polymeric single inlet blower wheel.

• Electrical Connections

1 / 2" electrical knockouts provided with internal terminal block.

• Unit Mounting

Suitable for most dryer boosting applications and can generally
be used for a maximum of 60 linear feet of ducting with a
maximum of six elbows using 4" rigid ducting.

• Automated Controls

Fully automatic fan control operates the booster fan whenever
the dryer is operating.

• Shipping Info

UPC Code: 0-83162-24021-7
Air Flow - CFM
PLEASE NOTE: The Home Ventilation Institute (HVI) does not currently have a sound test standard for remote mounted fans.
As a result sound levels (sones) are not listed. In most cases, a remote fan will be quieter than one mounted within the living area.
PROJECT
LOCATION
CONTRACTOR
FAN
MODEL
CFM
NUMBER NUMBER
Specifications subject to change without notice.
DRYER BOOSTER FAN

PERFORMANCE

Static Pressure (inches of w.g.)
0
0.2
0.4
167
150
133
IN
RPM
WATTS
W.G.
7 / 8
"
0.6
0.8
1.0
113
88
63
ARCHITECT
ENGINEER
SUBMITTED BY
AMPS
SONES
QTY
U.S.: 820 Lincoln Drive
West Chester, Pennsylvania 19380-4466
Tel: (877)-304-3785
Fax: (610) 696-8048
SPECIFICATIONS
AIDB4Y
DRYER BOOSTER FAN
3
7 / 8
"
9
1 / 2
"
HVI CFM
Fan Speed
@ .2 SP
RPM
150
2761
DATE
OPTIONAL EQUIPMENT
& REMARKS
Canada: 110 Glidden Road
Brampton, Ontario L6T 2J3
Tel: (905) 456-2033
Fax: (905) 456-1015
7 / 8
"
5
1 / 2
"
Power
Watts
78
Updated 9-07
