Air King America
820 Lincoln Avenue
West Chester, PA 19380
(877) 304-3785 • FAX (610) 696-8048

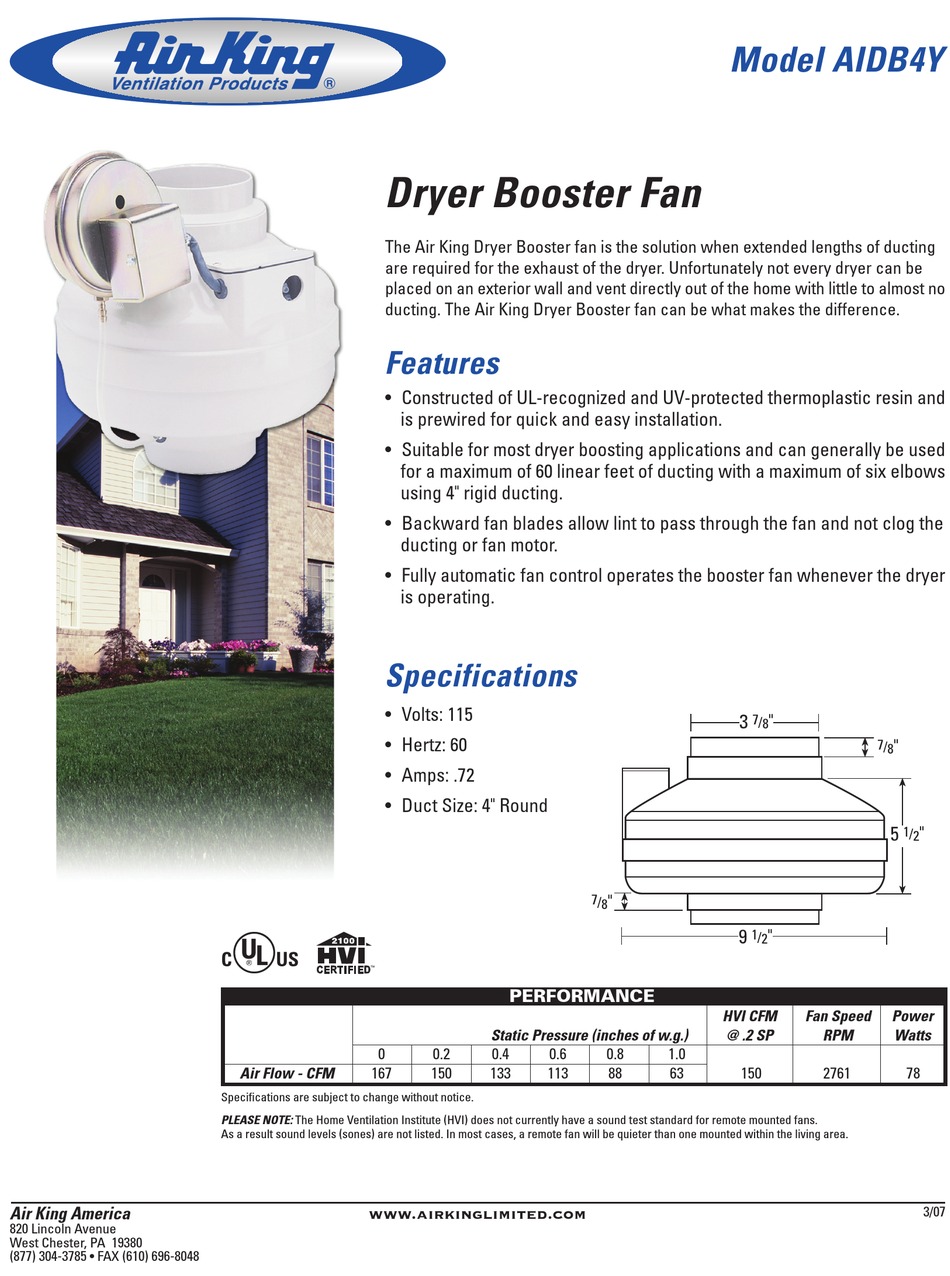

Dryer Booster Fan
The Air King Dryer Booster fan is the solution when extended lengths of ducting
are required for the exhaust of the dryer. Unfortunately not every dryer can be
placed on an exterior wall and vent directly out of the home with little to almost no
ducting. The Air King Dryer Booster fan can be what makes the difference.

Features

• Constructed of UL-recognized and UV-protected thermoplastic resin and
is prewired for quick and easy installation.
• Suitable for most dryer boosting applications and can generally be used
for a maximum of 60 linear feet of ducting with a maximum of six elbows
using 4" rigid ducting.
• Backward fan blades allow lint to pass through the fan and not clog the
ducting or fan motor.
• Fully automatic fan control operates the booster fan whenever the dryer
is operating.

Specifications

• Volts: 115
• Hertz: 60
• Amps: .72
• Duct Size: 4" Round
C
US
0
Air Flow - CFM
167
Specifications are subject to change without notice.
PLEASE NOTE: The Home Ventilation Institute (HVI) does not currently have a sound test standard for remote mounted fans.
As a result sound levels (sones) are not listed. In most cases, a remote fan will be quieter than one mounted within the living area.
www.airkinglimited.com
7 / 8
"

PERFORMANCE

Static Pressure (inches of w.g.)
0.2
0.4
0.6
0.8
150
133
113
88
Model AIDB4Y
3
7 / 8
"
9
1 / 2
"
HVI CFM
Fan Speed
@ .2 SP
RPM
1.0
63
150
2761
7 / 8
"
5
1 / 2
"
Power
Watts
78
3/07
