Installation
Process connection
ø43,4
ø50,4
ø56,4
ø63,9
ø83,4
ø90,9
ø74
ø54,85
ø84
ø56,4
ø63,9
12

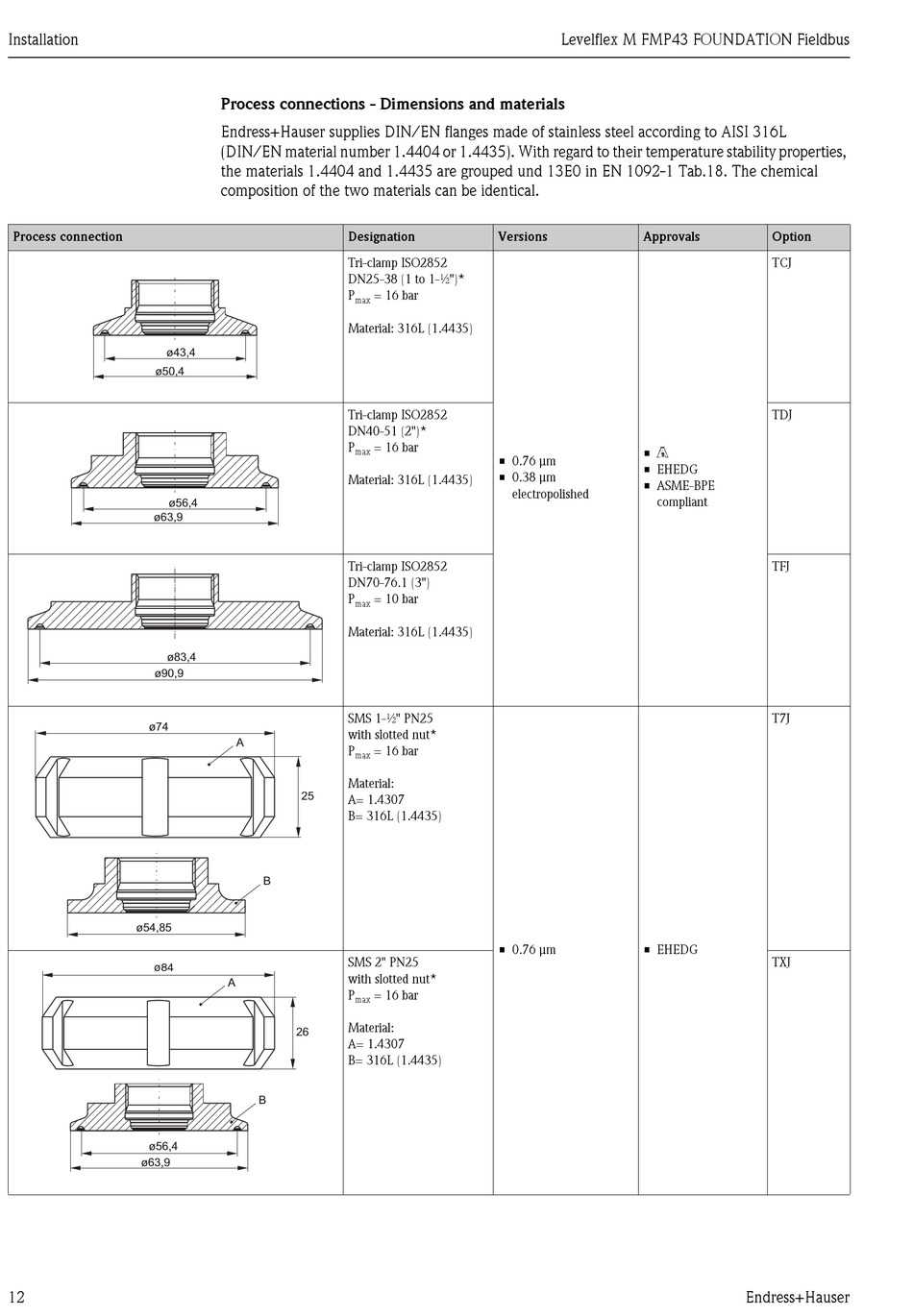

Process connections - Dimensions and materials
Endress+Hauser supplies DIN/EN flanges made of stainless steel according to AISI 316L
(DIN/EN material number 1.4404 or 1.4435). With regard to their temperature stability properties,
the materials 1.4404 and 1.4435 are grouped und 13E0 in EN 1092-1 Tab.18. The chemical
composition of the two materials can be identical.
Designation
Tri-clamp ISO2852
DN25-38 (1 to 1-½")*
P = 16 bar
max
Material: 316L (1.4435)
Tri-clamp ISO2852
DN40-51 (2")*
P = 16 bar
max
Material: 316L (1.4435)
Tri-clamp ISO2852
DN70-76.1 (3")
P = 10 bar
max
Material: 316L (1.4435)
SMS 1-½" PN25
with slotted nut*
A
P = 16 bar
max
Material:
25
A= 1.4307
B= 316L (1.4435)
B
SMS 2" PN25
with slotted nut*
A
P = 16 bar
max
Material:
26
A= 1.4307
B= 316L (1.4435)
B
Levelflex M FMP43 FOUNDATION Fieldbus
Versions Approvals
• 5
• 0.76 μm
• EHEDG
• 0.38 μm
• ASME-BPE
electropolished
compliant
• 0.76 μm • EHEDG
Option
TCJ
TDJ
TFJ
T7J
TXJ
