HighPoint RocketStor 6434TS Quick Installation Manual

4-bay / 8-bay sas/sata hot-swappable tower raid enclosure
Hide thumbs Also See for RocketStor 6434TS:

Advertisement

Quick Links

Download this manual

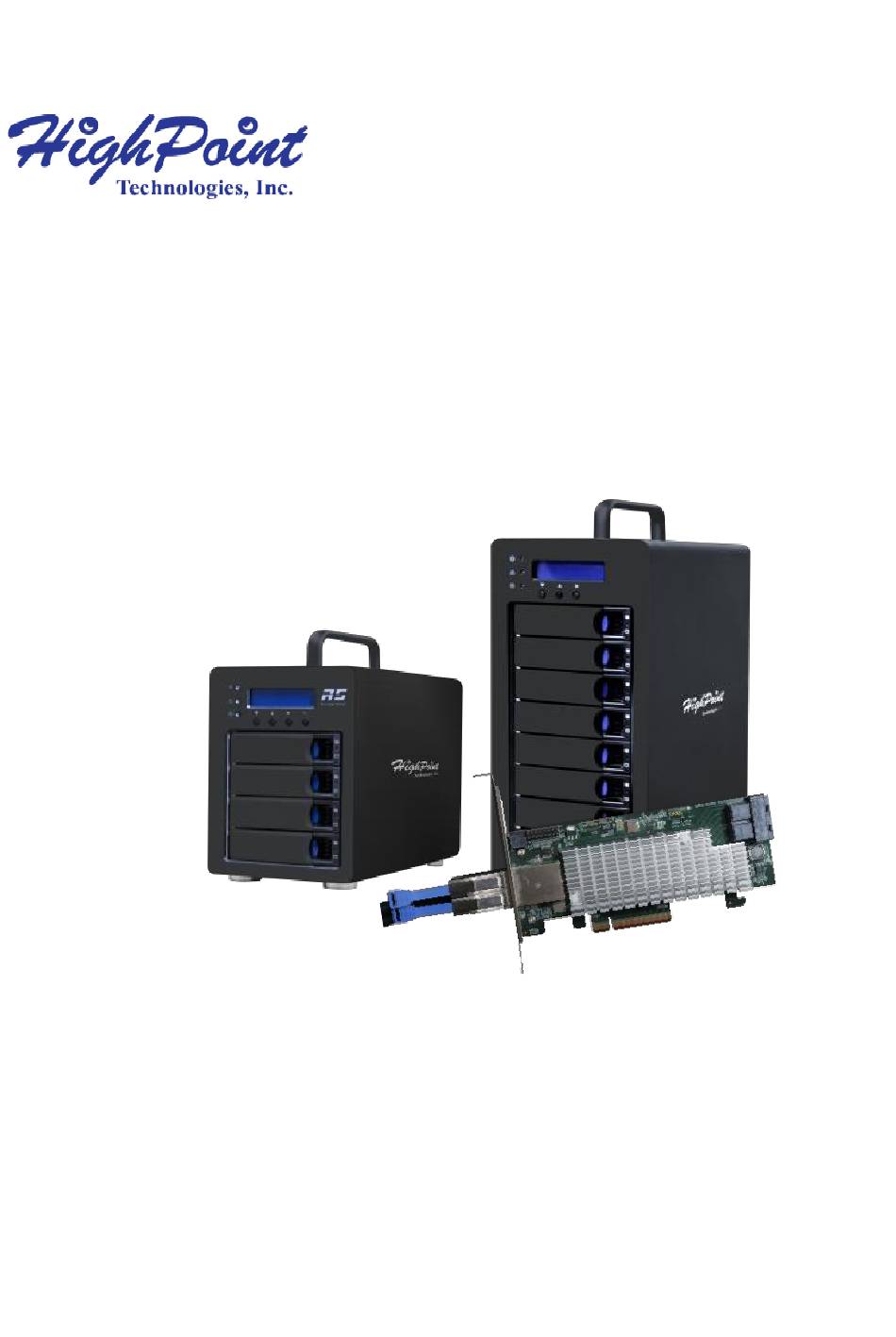

RocketStor 6434TS/6438TS
4-bay / 8-bay SAS/SATA Hot-Swappable Tower RAID
Enclosure
Quick Installation Guide
V1.00
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the RocketStor 6434TS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HighPoint RocketStor 6434TS

Summary of Contents for HighPoint RocketStor 6434TS

  • Page 1 RocketStor 6434TS/6438TS 4-bay / 8-bay SAS/SATA Hot-Swappable Tower RAID Enclosure Quick Installation Guide V1.00...

  • Page 2: System Requirements

    RocketStor 6434TS/6438TS Overview The RocketStor 6434TS/6438TS include a RocketStor 6434S/6438S, a RocketRAID 3742A HBA and SFF-8644 cables, which are stylish, high- quality storage tower enclosures that feature external 12Gb/s Mini-SAS ports and removable hot-swap bays which support any 2.5" or 3.5"...
  • Page 3 40x 2.5" SSD mounting screws • 1x UL Power Cord • 1x 16-Port SAS 12Gb/s PCIe3.0 x8 Host Adapter • 2x SFF-8644(Mini-SAS) Cable RocketStor 6434TS Kit Contents • 1x Quick Installation Guide • 1x 4-Bay Tower Enclosure • 4x Drive Trays •...
  • Page 4 RocketStor 6434TS/6438TS Hardware Front View RS6438TS RS6434TS...
  • Page 5 RocketStor 6434S/6438S Panel Layout Take RocketStor 6438S as an example Power LED LED display Warning LED Navigation keys Fail LED Disk Active LED Disk Present LED Disk Present LED: Solid Blue Disk Active LED: Flash Blue Power LED: Solid Blue (Normal Status) Warning LED: Flash Yellow.
  • Page 6 Power Switch Kensington Lock Slot Power supply cooling exhaust vent AC Power Input Mute Button Body cooling exhaust vent 2x SFF-8644 Mini-SAS connector Power Switch: Enclosure power switch AC Power Input: Connecting AC power cord Mute Button: Mute the internal enclosure alarm buzzer 2x SFF-8644 Mini-SAS Connector: SFF-8644 cable connector for HBA connection Kensington Lock Slot: Use a computer lock through the keyhole to...
  • Page 7 Disk Tray For 2.5-inch disk For 3.5-inch disk...

  • Page 8: Required Accessories

    Required Accessories Certified cable is available directly from HighPoint and our authorized resellers. For more information, please contact our Sales Department (sales@highpoint-tech.com). 1. RocketStor 6434S/6438S is used in conjunction with the RocketRAID 3742A, and the two are combined to form Turbo RAID Tower Enclosure - RS6438TS/6434TS, which are connected via SFF-8644.
  • Page 9 RocketStor 6434TS/6438TS Hardware Installation Note: Make sure the system is powered-off before installing the RAID Controller. SFF-8644 to SFF-8644 cable connects to the SFF-8644 connector on the left side of RocketRAID 3742A. The other end of the SFF-8644 to SFF-8644 connects to the...
  • Page 10 The channel of the RS6438TS is displayed as follows: The channel of the RS6434TS is displayed as follows: Connect to port a of RR3742A(Figure1), Connect to port b of RR3742A(Figure2): Figure1 Figure2 Connect RocketRAID 3742A into the PCIe 3.0/4.0 x8 or x16 slot of the motherboard.
  • Page 11 Optional Certified Cable & Controller Accessories Device Cables SFF-8644 to SFF-8644 cable 8644-HSAS-110 Length: 1M Thunderbolt™ 3 PCIe Expansion Chassis Thunderbolt™ 3 40Gb/s Ports, RocketStor 6661A Support Mac & PC platform...
  • Page 12 A variety of manuals, guides and FAQs are available for RocketStor 6434TS/6438TS. In addition, we recommend visiting the Software Downloads webpage for the management interfaces, and installation guides. Software Download: Installation Guide, HDD & SSD Compatibility Lists: https://www.highpoint-tech.com/rs6430ts-overview Certified Accessories: https://www.highpoint-tech.com/rr-accessories https://www.highpoint-tech.com/rr3700-overview FAQ & Troubleshooting: https://www.highpoint-tech.com/support-and-services...

  • Page 13: Customer Support

    If you encounter any problems while utilizing the RocketStor 6434TS/6438TS, or have any questions about HighPoint Technologies, Inc. products & solutions, feel free to contact our Customer Support Department. Web Support: https://www.highpoint-tech.com/support-and-services HighPoint Technologies, Inc. websites: https://www.highpoint-tech.com © Copyright 2022 HighPoint Technologies, Inc. All rights reserved.
