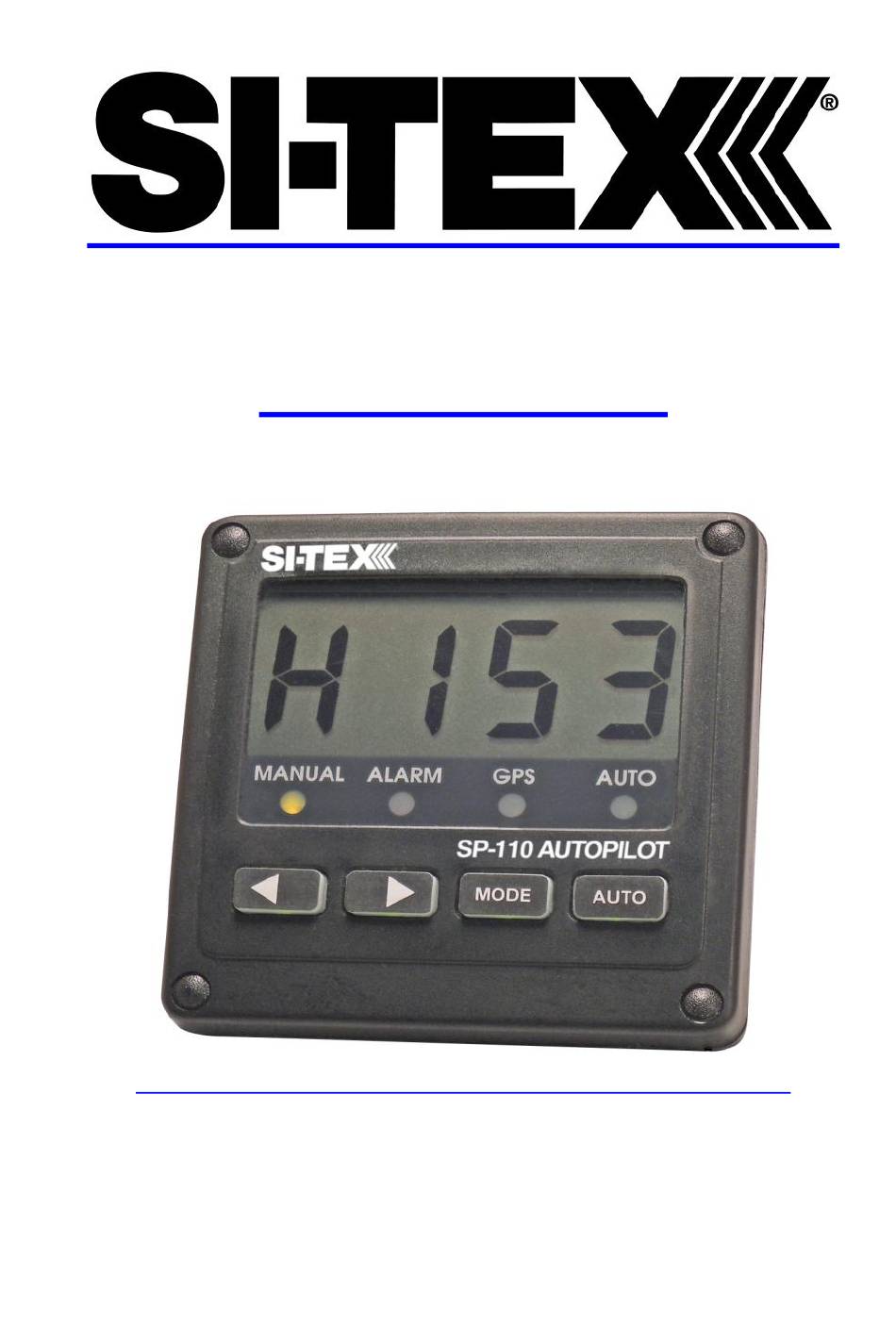

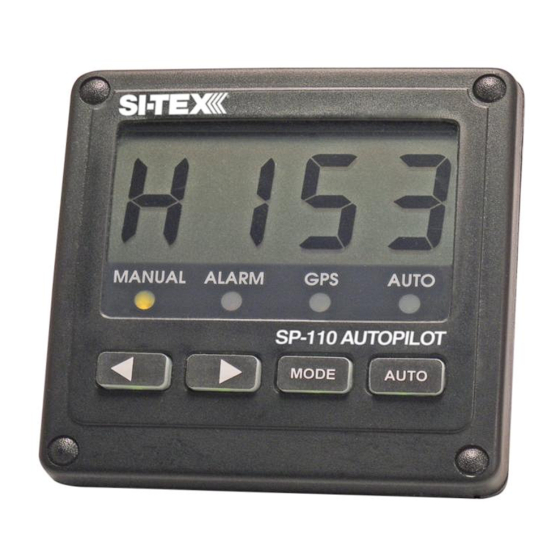

  • Page 1 SP-110 Autopilot OPERATION...
  • Page 2 Warning! WHEN USING THE AUTOPILOT AN ADEQUATE WATCH SHOULD BE MAINTAINED AT ALL TIMES. THE AUTOPILOT MUST BE PLACED IN MANUAL MODE WHEN EVER THE VESSEL IS STATIONARY THE AUTOPILOT SHOULD NOT BE USED WHILE NAVIGATING IN RESTRICTED WATERS SP-110 System Block Diagram SP-110 Display Drive...
  • Page 3 Basic Operation – Non Rudder Feedback Version Switch on power to autopilot. Display shows boat heading - example H123. MANUAL light (LED) will be on. Steer vessel to course. To engage autopilot for automatic steering: Press AUTO. Display will show heading for autopilot to steer - example A123. AUTO light (LED) will be on.
  • Page 4 Basic Operation – Rudder Feedback Version Switch on power to autopilot. Display shows boat heading - example H123. MANUAL light (LED) will be on. Steer vessel to course. To engage autopilot for automatic steering: Press AUTO. Display will show heading for autopilot to steer - example A123. AUTO light (LED) will be on.
  • Page 5 Jog Steering Switch on power to autopilot. Display shows boat heading - example H123. MANUAL light (LED) will be on. To operate steering: Press ◄ to turn rudder to port. Press ► to turn rudder to starboard. NOTE. Do not press either ◄ or ► for more than 4 seconds as the rudder may drive hard over into the stops.
  • Page 6 GPS as a Heading Source (no Compass) A compass is not used with this system. Display will show COG heading from GPS – example C123. If a compass is reconnected the display will change to compass heading – example H123. Refer to Basic Operation pages 3 or 4 to use the pilot.
