Log Placement - Country Flame Bayvue DV 30 Owner's Manual

NATURAL GAS
FRONT BURNER
MIDDLE BURNER
REAR BURNER
PROPANE
FRONT BURNER
MIDDLE BURNER
REAR BURNER

LOG PLACEMENT

The ceramic logs provided with this appliance are extremely fragile. Please handle these three logs with
the utmost care. Small chips off of the logs can be covered up using high temp paint. FIGURE 5 and the
following steps present log installation instructions.
INSIDE THE FIREBOX CAN CAUSE IMPROPER FUEL BURN, EXCESSIVE CARBON
MONOXIDE (a colorless, odorless, toxic gas) PRODUCTION AND RESULT IN SOOTING AN
ENTIRE HOUSE. MONITOR THE FIRST FEW FIRES TO ENSURE NO SOOTING.
STEP 1 Center the rear log down onto the log retainer's two keys into the log notches. See FIGURE 5a.
STEP 2 Set the front log into the log retainer using the two outside log grate arms as guides. See
FIGURE 5b. Rest front log arm against the back log. Note grooves for top log positioning.
STEP 3 The top log lays on the left grooves nested on the back and front logs. See FIGURE 5c.
STEP 4 Embers are placed into and over the front of the "V" shaped front burner. See FIGURE 5d.
Version 1.0h
Bayvue DV-46
0 – 2000 FEET
1/8 INCH
3/16 INCH
3/8 INCH
0 – 2000 FEET
1/8 INCH
FULL OPEN
FULL OPEN
TABLE 4: AIR SHUTTER ADJUSTMENT

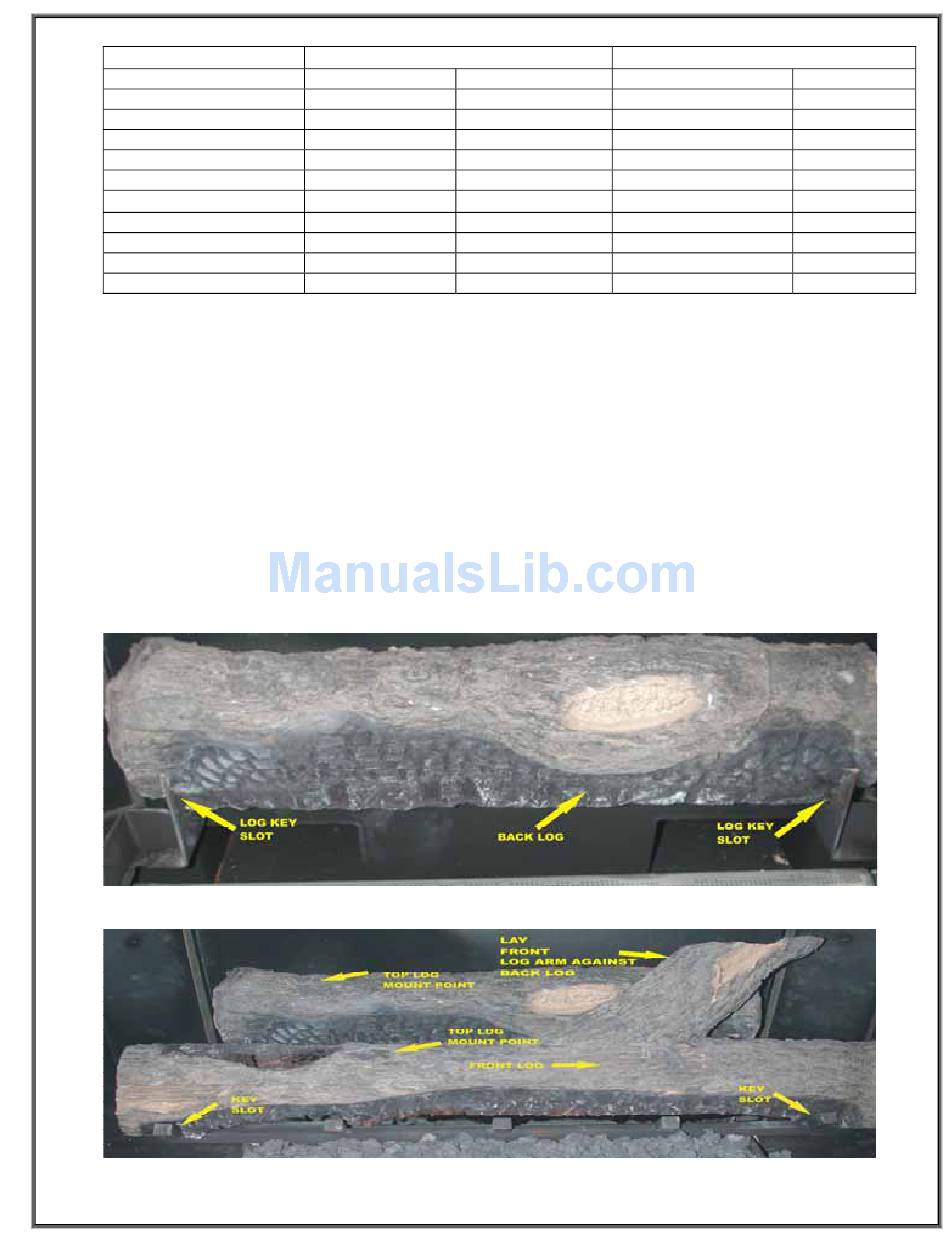

FIGURE 5a: REAR LOG PLACEMENT
FIGURE 5B: FRONT LOG PLACEMENT
> 2000 FEET 0 – 2000 FEET
SAME 1/8 INCH
SAME 1/4 INCH
SAME 3/8 INCH
> 2000 FEET 0 – 2000 FEET
SAME
SAME 5/32INCH
SAME
WARNING: IMPROPER LOG PLACEMENT
10
Bayvue DV-30
> 2000 FEET
SAME
SAME
SAME
> 2000 FEET
1/8 INCH SAME
SAME
3/8 INCH SAME
