MikroTik SXT 6 Quick Setup Manual

SXT 6
Quick Setup Guide and Warranty Information

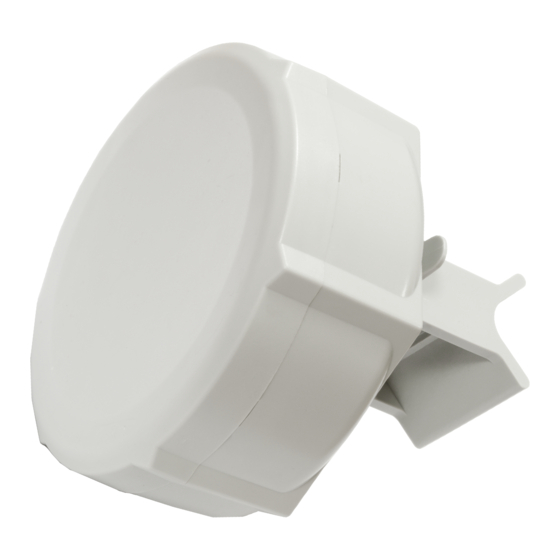

The SXT 6 comes as a complete set, and includes a built in 802.11a/n
dual chain wireless device, and a dual polarization 16dBi , 28 degree
antenna. It has one Gigabit Ethernet connector which supports MDI-X
auto detection.

First use

1. Connect an Ethernet cable to the port behind
the small plastic door
2. The SXT accepts 24V PoE from the supplied PoE injector
3. The default IP address from LAN is 192.168.88.1
for configuration
4. Username is admin and there is no password

Powering

The board accepts powering from the Ethernet port (Passive PoE) 7-30V DC, but due to possible losses, minimum
of 12V is recommended. Package contains a 24V adapter and a passive PoE injector.

Booting process

RouterOS is the operating system of all RouterBOARD routers. Please see detailed configuration guide here:
http://wiki.mikrotik.com/wiki/Category:Manual
This device doesn't come fitted with a Serial Port connector, so initial connection has to be done via the Ethernet
cable, using the MikroTik Winbox utility. Winbox should be used to connect to the default IP address of
192.168.88.1 with the username admin and no password.
In case IP connection is not available, Winbox can also be used to connect to the MAC address of the device. More
information here: http://wiki.mikrotik.com/wiki/First_time_startup
In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button
of the device when starting it until the LED light behind the small door turns off, and SXT will start to look for
Netinstall servers.

Mounting

With the clip pointed forward, slide the mounting bracket into the rail on the bottom of the case, until the clip
clicks into place. The SXT comes bundled with a hose clamp - guide the clamp through the opening in the bracket
and around the pole where it will be mounted. Tighten the hose clamp screw when alignment is complete. Two
screw holes are provided as additional security against accidental bracket movement.
The SXT device has a sliding door, behind which the Ethernet port and the reset jumpers are located. This door can
be also secured shut with a screw in the provided screw hole.
See www.routerboard.com for more information. Contact support@mikrotik.com for support questions. 07/12/15
