TIS -DMX-48 Manual Installation

INSTALLATION MANUAL

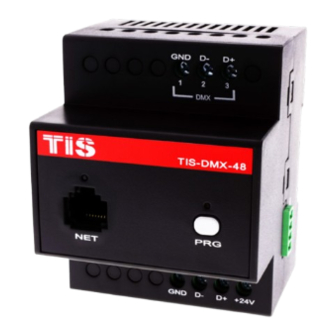

DMX 48 CHANNELS MODULE
Model: TIS-DMX-48
Ports
TIS Bus
Function
programmable options
Dimensions
Housing
BARCODE (UPC-A)
6 58921 79854 6
This controller can control 48 channels of all
devices working under the DMX512 protocol.
P R O D U C T S P E C I F I C AT I O N S
DMX
Number of devices on 1 line
Bus voltage
Current consumption (Normal)
Current consumption (Peak)
Protection
DMX
Width × length × height
Materials
Casing color
IP rating
Automation Made Easy

PRODUCT INFORMATION

Standard DMX connection
Max. 64
12-32 V DC
<30 mA / 24 V DC
<40 mA / 24 V DC
Reverse Polarity Protection
Numbers of Areas 24
12 Scenes
16 Sequence
90mm × 73mm × 76mm
Fire-proof ABS
Black Gray
IP 20
