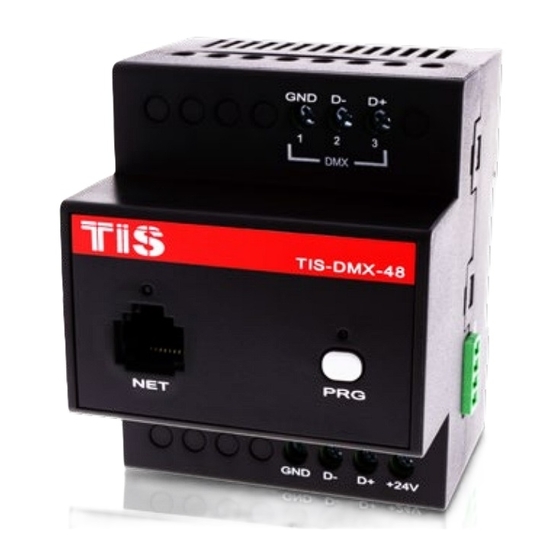

INSTALLATION MANUAL
DMX MASTER CONTROLLER
Din-rail DMX Actuator
Model: TIS-DMX-48
Ports
TIS Bus
Function
programmable options
Dimensions
Housing
BARCODE (UPC-A)
6
58921
79854
6
This product is a controller supporting 48 ballasts
for scene control and grouped and individual lights
control using the DMX standard.
P R O D U C T S P E C I F I C AT I O N S
DMX
Number of devices on 1 line
Bus voltage
Current consumption
Protection
DMX
Width × length × height
Materials
Casing color
IP rating
PRODUCT INFORMATION
Standard DMX connection
Max. 64
12-32 V DC
<25 mA / 24 V DC
Reverse polarity protection
Numbers of areas 24
12 Scenes
16 Sequence
76mm × 73mm × 90mm
Fireproof ABS
Black
IP 20
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TIS TIS-DMX-48
Summary of Contents for TIS TIS-DMX-48
- Page 1 INSTALLATION MANUAL DMX MASTER CONTROLLER Din-rail DMX Actuator Model: TIS-DMX-48 PRODUCT INFORMATION This product is a controller supporting 48 ballasts for scene control and grouped and individual lights control using the DMX standard. P R O D U C T S P E C I F I C AT I O N S...
- Page 2 SA , AUSTRALIA Wanchai, Hong Kong TIS Logo is registered trademark of TIS CONTROL. All of the specification are subject to change without notice. w w w . t i s c o n t r o l . c o m...
- Page 3 DIN rail by two mounting screw holes. Connect a Cat5e TIS network data D+ +24V cable to the TIS-BUS port as per the connection diagram. No need to loop the TIS-bus cable if 2 DIN Rail modules are TIS-DMX-48 connected together from the side bus train terminal.
- Page 4 MODEL : TIS-DMX-48 INSTALLATION STEPS Connect DMX terminal (see DMX female connectors type) 1, 2, 3 pins to the DMX GND (1), D- (2), and D+ (3) in the TIS module. DMX IN DMX OUT To the TIS BUS Network Male Connector Viewed from Front GND(white-orange)&(white-brown)
- Page 5 DMX MASTER CONTROLLER MODEL : TIS-DMX-48 TROUBLESHOOTING Reason: The Module address conflicts with other device in TIS network, you need to PRG Button Blinks Red Color press and hold the PRG button for 6 seconds Rapidly so the module can get new address Reason: Device is not powered on;...
