TIS RCU-8OUT-8IN Installation Manual

INSTALLATION MANUAL
ROOM CONTROL UNIT
8 INPUT 8 OUTPUT

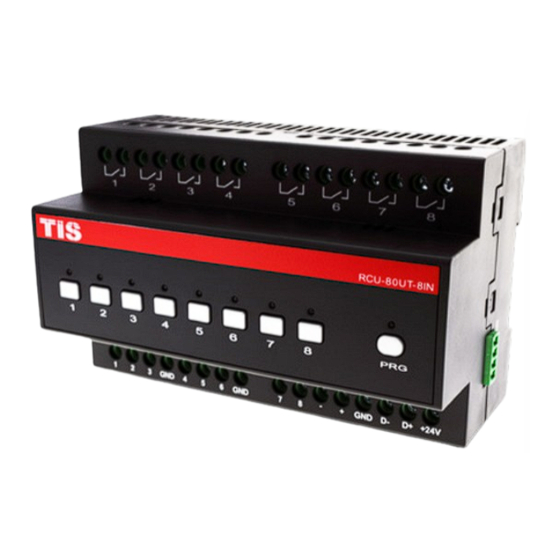

Model: RCU-8OUT-8IN
Output switching voltage
Output switching current
TIS Bus
Operating and display
elements
Functions
Dimensions
Housing
BARCODE (UPC-A)
6 58921 79821 8
This device is used to control ON/OFF for lights
and other devices, electrical locks, 3
motors, shutters, floor heaters, and fan coil units
(FCU), and it includes 8 Digital Inputs (dry inputs)
and one 0-10V dimming channel.
P R O D U C T S P E C I F I C AT I O N S
Number of channels
Nominal voltage
Max. switching Voltage
Analog Output
Nominal current per channel
Maximum total channels load
Max switching current
Max Continues current
Number of devices on 1 line
Bus voltage
Current consumption (Normal)
Current consumption (operation)
Protection
Programming button/LED (PRG)
1-8 buttons
Lighting control ON/OFF Dimming
Curtain control
Fan speed control
Dimming
Scenes
8 Digital inputs
Width × Length × Height
Materials
Casing color
Button color
IP rating
Automation Made Easy
PRODUCT INFORMATION
8
0 – 230 V AC 50/60 Hz
440VAC / 125VDC
Ch8 include 0-10V output for dimming
Ch1: 20A, Ch 2-8: 10A
90A
16A Resistive
8A florescent
10A VAC
Max. 64
12-32 V DC
<30 mA / 24 V DC
<40 mA / 24 V DC
Reverse Polarity Protection
For assignment of the physical address
Manually ON/OFF and Programming
8 channels controlled separately
Can set 4 group of curtains (open/close) option
Can set 2 group of Fan (low, med, high) option
Ch 8 used with 0-10V output for dimming
8 different scenarios
Programmable inputs to connect to normal wall
switches and sensors
145mm × 75mm × 91mm
ABS fire proof
Black Gray
Silver
IP 20
-party curtain
rd
