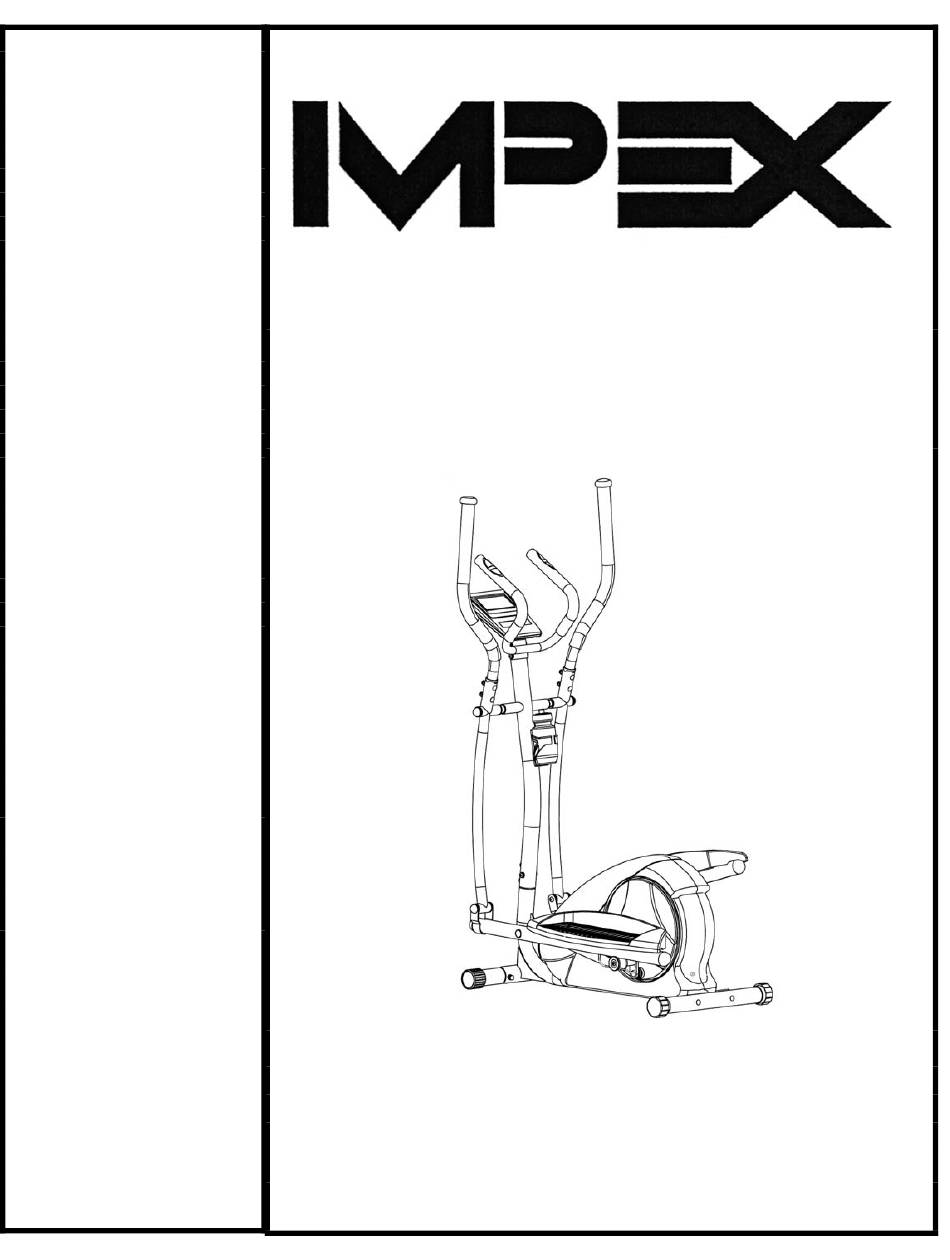

  • Page 1 Deluxe Elliptical Machine Hardware Pack Assembly Instruction BF-1201 Parts List Warranty Ordering Parts Model BF-1201 Retain This Manual for Reference 100714 OWNER'S MANUAL ® IMPEX INC. 2801 S. Towne Ave., Pomona, CA 91766 Tel: (800) 999-8899 Fax: (626) 961-9966 www.impex-fitness.com info@impex-fitness.com...

  • Page 2: Table Of Contents

    BEFORE YOU BEGIN ® Thank you for selecting the MARCY Deluxe Elliptical Machine BF-1201 by IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.

  • Page 3: Important Safety Notices

    BEFORE BEGINNING ANY EXERCISE PROGRAM, CONSULT YOUR PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES RESPONSIBILITY PERSONAL INJURY PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
  • Page 4 WARNING LABELS PLACEMENT The Warning Labels shown here have been placed on the Rear Stabilizer, Front Post, and Main Frame. If the labels are missing or illegible, please call customer service at 1-800-999-8899 for replacement. Apply the labels in location shown.

  • Page 5: Hardware Pack

    HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.

  • Page 6: Assembly Instructions

    ASSEMBLY INSTRUCTION Tools Required For Assembling the Machine: One Crossing Wrench and Allen Wrench, provided by manufacturer. NOTE: It is strongly recommended that two or more people assemble this machine to avoid possible injury. STEP 1 (See Diagram1) A.) Do not tighten the Nuts and Bolts until instructed to do so. B.) Attach the Front Stabilizer (#39) to the Main Frame (#32).
  • Page 7 STEP 2 (See Diagram 2) A.) Note: Extra help may be needed to hold the Front Post (#42) while connecting the computer wires. B.) Connect the Upper Computer Wire (#91) from the bottom of Front Post to the Lower Computer Wire (#92) from the main Fame (#32).
  • Page 9 STEP 3 (See Diagram 3) A.) Note: In order to install the Pedal Supports (#30 & #38), extra help may be needed. B.) Do not tighten Nuts and Bolts until instructed to do so. C.) Attach the Left Pedal Support (#38) onto the groove on left Roller Wheel (#49). D.) Insert the pivot on Left Pedal Support into the hole on the left Connecting Bracket (#54).
  • Page 10 STEP 4 (See Diagram 4) A.) Cover the heads of the two M8 x ¾” Hex Bolts (#6) pre-installed by factory with two M8 Nut Caps (#5). B.) Cover the two M8 Aircraft Nuts (#23) installed in Step-3 with two M8 Nut Caps (#5). DIAGRAM 4...
  • Page 11 STEP 5 (See Diagram 5) A.) Attach the two Pedals (#29) onto the Left & Right Pedal Support (#38 & #30). Secure each Pedal with three M8 x 1” Allen Bolts (#28). DIAGRAM 5...
  • Page 12 STEP 6 (see Diagram 6) A.) Insert the Right Stride Handle (#2) into the Right Connecting Rod (#15). Insert the Left Stride Handle (#44) into the Right Connecting Rod (#41). B.) Securely tighten each Handle with two M8 x 2” Carriage Bolts (#11), two Ø 5/8” Curved Washers (#24), two Ø...
  • Page 13 STEP 7 (See Diagram 7) A.) Attach the Water Bottle Rack (#18) to the Front Post (#42). Secure it with two M5 x 5/8” Philips Screws (#17). B.) Store the Water Bottle (#14) in the Rack. DIAGRAM 7...
  • Page 14 STEP 8 (See Diagram 8) A.) Attach the Stationary Handle (#27) to Front Post (#42). Secure it with four M8 x ¾” Allen Bolts (#21), four Ø 5/8” Lock Washers (#7), and four Ø 5/8” Flat Washers (#22). DIAGRAM 8...
  • Page 15 STEP 9 (See Diagram 9) A.) Remove the four M5 x 5/8” Computer Philips Screws (#43) from the Computer (#45). B.) Connect the Upper Computer Wire (#91) to the wire on Computer. C.) Plug the sensor wire (#93) on the Front Post (#42) into the Computer. D.) Attach the Computer to the bracket on Front Post.
  • Page 16 STEP 10 (See Diagram 10) A.) Plug the AC Adapter (#34) to110v outlet, and plug the power cord into the Main Frame (#32). Note: Only use the original AC Adapter from manufacturer. Do not use any Adapter, which is not from manufacturer. DIAGRAM 10...

  • Page 17: Exploded Diagram

    EXPLDOED DIAGRAM...

  • Page 19: Parts List

    PARTS LIST KEY NO. DESCRIPTION Q’ty Stride Handle Cover Cap Ø 1 1/8” x Ø 7/8” Spacer Right Stride Handle Ø 1 1/8” x ½” Bushing Ø 1 ½” Stride Handle Bushing Ø 1 1/8” x ¼” Spacer Stationary Handle Grip Connecting Bracket M8 Nut Cap Ø...

  • Page 20: Operation

    OPERATION POWER Plug the AC Adapter to power outlet before exercise. Un-plug AC Adapter when exercises are finished. SELECT EXERCISE PROGRAM Turn on Computer and select the desired exercise program. Please refer to the Computer Manual for exercise program selection. FOOT POSITIONING Step both feet on the two Pedals and hold the Stride Handles with two hands, and then start to exercise.

  • Page 21: Warranty

    IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
