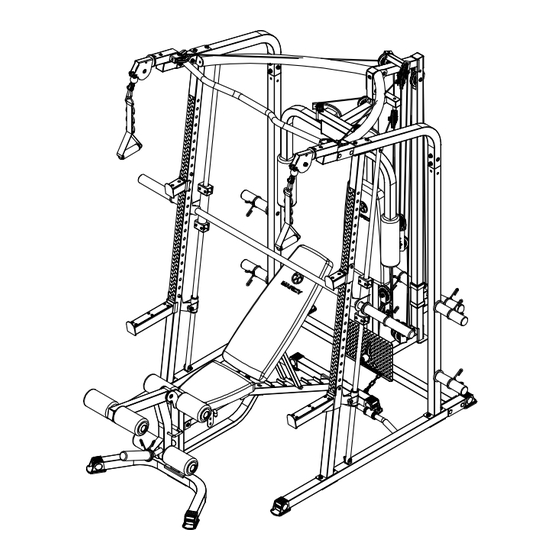

Impex MARCY MD-7492 Owner's Manual

Deluxe smith machine

Hide thumbs

page of 21

/ 21
Bookmarks

Quick Links

Download this manual

NOTE:

Please read all instructions

carefully before using this

product

Table of Contents

Safety Notice

Important Assembly

Information

Care and Maintenance

Parts List

Warranty

Ordering Parts

Model

MD-7492

Retain This

Manual for

Reference

220414

OWNER'S

MANUAL

SMITH MACHINE

IMPORTANT:

Please read this manual before commencing

assembly of this product.

2801 S. Towne Ave, Pomona, CA 91766

DELUXE

MD-7492

IMPEX

INC.

Tel: 800- 999-8899

www.marcypro.com

support@impex-fitness.com

Need help?

Do you have a question about the MARCY MD-7492 and is the answer not in the manual?

Questions and answers

Summary of Contents for Impex MARCY MD-7492

Page 1 Parts List Warranty Ordering Parts Model MD-7492 Retain This Manual for Reference 220414 IMPORTANT: Please read this manual before commencing assembly of this product. OWNER'S IMPEX ® INC. MANUAL 2801 S. Towne Ave, Pomona, CA 91766 Tel: 800- 999-8899 www.marcypro.com support@impex-fitness.com...
Page 2 To avoid unnecessary delays, please call our TOLL-FREE customer service number. Our Customer Service Agents will provide immediate assistance. Toll-Free Customer Service Number 1-800-999-8899 Mon. – Fri. 9 a.m. – 5 p.m. PST www.marcypro.com support@impex-fitness.com ©IMPEX INC. www.marcypro.com...
Page 3 PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
Page 4 Muscle soreness is common, especially when you first start exercising. If you are painfully sore for a long time, it may be time to change your program. Eventually, your muscle system will become accustomed to the stress and strain placed on it. ©IMPEX INC. www.marcypro.com...
Page 5 Although you may not feel like doing it, taking a rest day at least once a week is important because it gives your body a chance to heal it self. Continuously working your muscles will result in over- training, which will not benefit you in the long run. ©IMPEX INC. www.marcypro.com...
Page 6 The warning labels shown here have been placed on the Cross Brace, Rear Stabilizer, and Upper Frame. If the labels are missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the labels in the location shown. ©IMPEX INC. www.marcypro.com...
Page 8 Tools required for assembling this equipment: Allen Wrenches (provided by manufacturer), and Adjustable Wrench, or Socket Wrench, or Ratchet Wrench. NOTE: It is strongly recommended that this machine be assembled and moved by two or more people to avoid possible injury. ©IMPEX INC. www.marcypro.com...
Page 10 4. Examine the equipment regularly for signs of damage or wear. 5. Replace any defective components immediately and/or keep the equipment out of use until repair. 6. Failure to examine regularly may affect the safety level of the equipment. ©IMPEX INC. www.marcypro.com...
Page 11 If the tension is too loose, move the pulley up until desired tension is achieved. If the tension is too tight, move the pulley down . Bench Backrest Adjustment Angles Backrest angle adjustment ranges from -23 to 83 Seat angle adjustment ranges from 0 to 24 ©IMPEX INC. www.marcypro.com...
Page 12 Right Cross-Over 10 lb. plate creates 5 lb resistance Lat Pull (individual) 10 lb. plate creates 5 lb. resistance Lat Pull (linked) 100% 10 lb. plate creates 10 lb. resistance *Numbers are approximate. Actual resistance may vary. ©IMPEX INC. www.marcypro.com...
Page 13 Butterfly Pulley Base Butterfly Pulley Bracket Lifting Sleeve Guide Rod Safety Sleeve Row Plate Short Bar Short Bar Connector Cable Cross Pulley Bracket Upper Frame Connector Pulley Bracket Bracket 5½"×2" Bracket 4¾"×2" Bracket 3"×1¾" Safety Hook Striker Plate ©IMPEX INC. www.marcypro.com...
Page 14 Square End Cap □1¾" Square End Cap □1½" Round End Cap Ф1" Chain 15-links Carabiner clip Spring Collar Rivets Allen Bolt M6×½" Screw M6×⅝” Flat Head Allen Bolt M6×¼" Flat Head Allen Bolt M8×½" Carriage Bolt M10×3" ©IMPEX INC. www.marcypro.com...
Page 15 M10×1" Allen Bolt M10×¾" Allen Bolt M8×2½" Allen Bolt M8×2⅜” Allen Bolt M8×1¾" Allen Bolt M8×⅜” Aircraft Nut Aircraft Nut Aircraft Nut Washer Ф1” Washer Ф¾” Washer Ф⅝” Allen Key 6# Allen Key 5# Allen Key 4# ©IMPEX INC. www.marcypro.com...
Page 18 L-Shape Locking Pin Hex Bolt M12×6¾" Hex Bolt M12×3⅜” Allen Bolt M10×6" Allen Bolt M10×3⅛" Allen Bolt M10×2⅜” Allen Bolt M10×¾" Allen Bolt M8×1¾" Allen Bolt M8×¾" Carriage Bolt M10×2¾" Flat Head Screw M6×⅝” Large Washer Ф1⅛" ©IMPEX INC. www.marcypro.com...
Page 21 IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages of whatsoever natures.
