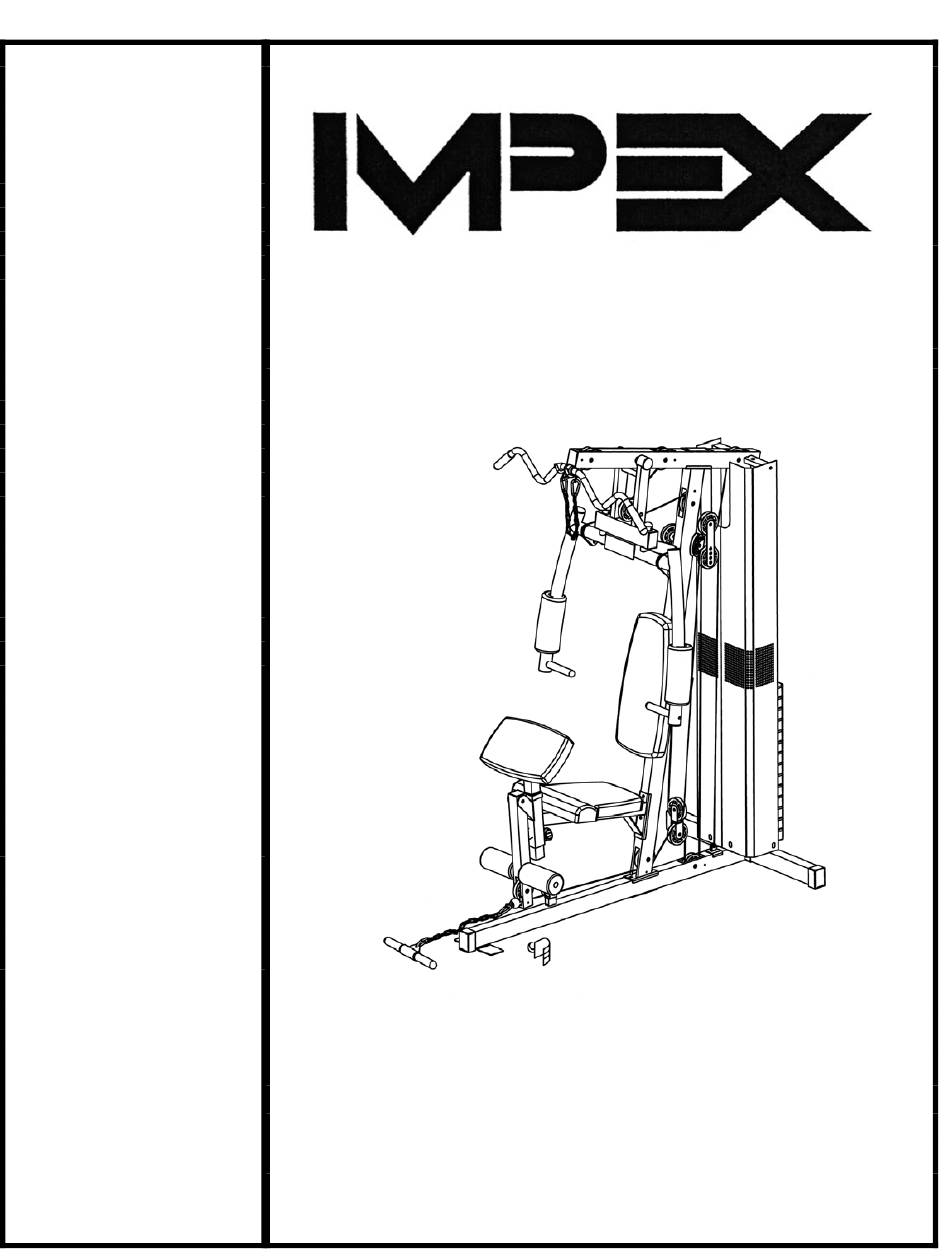

  • Page 1 PM-3200 Assembly Instruction Parts List Resistance Chart Warranty Ordering Parts Model PM-3200 Retain This Manual for Reference 110525 OWNER'S ® MANUAL IMPEX INC. 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746 Tel: (800) 999-8899 Fax: (626) 961-9966 www.impex-fitness.com info@impex-fitness.com...
  • Page 2: Table Of Contents

    RESISTANCE CHART…………...............………. 24 WARRANTY....................…………. 25 ORDERING PARTS..................………… 25 BEFORE YOU BEGIN Thank you for selecting the PLATINUM MARCY PM-3200 HOME GYM by ® IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction.
  • Page 3: Important Safety Notices

    PHYSICIAN. THIS IS ESPECIALLY IMPORTANT FOR INDIVIDUALS OVER THE AGE OF 35 OR PERSONS WITH PRE-EXISTING HEALTH PROBLEMS. READ ALL INSTRUCTIONS BEFORE USING ANY FITNESS EQUIPMENT. IMPEX INC. ASSUMES NO RESPONSIBILITY FOR PERSONAL INJURY OR PROPERTY DAMAGE SUSTAINED BY OR THROUGH THE USE OF THIS PRODUCT.
  • Page 4 WARNING LABEL PLACEMENT The warning labels shown here have been placed on the Rear Base Frame and Upper Frame. If the labels are missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the labels in the location shown.
  • Page 5: Hardware Pack

    HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
  • Page 6 HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
  • Page 7 HARDWARE PACK NOTE: The following parts are not drawn to scale. Please use your own ruler to measure the size.
  • Page 8: Assembly Instructions

    ASSEMBLY INSTRUCTION Tools Required for Assembling the Machine: Two Adjustable Wrenches, two Allen Wrenches, and one Philips Screwdriver. NOTE: It is strongly recommended this machine to be assembled by two or more people to avoid possible injury. STEP 1 (See Diagram 1) A.) Push two Ø...
  • Page 9 DIAGRAM 1...
  • Page 10 STEP 2 (See Diagram 2) A.) Do not tighten Nuts and Bolts until instructed to do so. B.) Slide the 14 Weight Plates (#34) onto the Guide Rods (#13). Make sure the deep grooves on the Plates are all facing down and toward back of the machine. If the locking holes on the guide rods are more than 2-3 inches from the upper most, then you have installed the Guide Rods upside down.
  • Page 11 DIAGRAM 2...
  • Page 12 STEP 3 (See Diagram 3) A.) Attach the Front Press Base (#6) to the Upper Frame (#4). Secure it with one 6 1/8” Front Press Axle (#37), one Ø ¾” Washer (#84), one Ø ¾” Lock Washer (#88), one M10 x 1” Allen Bolt (#73), and one Ø...
  • Page 13 DIAGRAM 3...
  • Page 14 STEP 4 (See Diagram 4) A.) Attach the Main Seat Support (#1) to the Front Vertical Frame (#3). Secure it with two M10 x 3 ¾” Carriage Bolts (#79), one 4 ¾” x 1 ¾” Bracket (#22), two  ¾” Washers (#84), and two M10 Aircraft Nuts (#83).
  • Page 15 CABLE LOOP DIAGRAM...
  • Page 16 STEP 5 (See Diagram 5 & Cable Loop Diagram) A.) Attach the 118” Upper Cable (#59) to the opening on the front of the Upper Frame (#4). Note: The Ball Stopper on the cable should be underneath the Frame. B.) Attach a Pulley (#62) to the opening. Secure it with one M10 x 2 ½” Allen Bolt (#69), two Ø...
  • Page 17 DIAGRAM 5...
  • Page 18 STEP 6 (See Diagram 6 & Cable Loop Diagram) A.) Attach one end of the 110” Butterfly Cable (#61) onto the hook on the Right Butterfly Base (#7). B.) Draw the Cable to the right Swivel Pulley Bracket (#26). C.) Attach a Pulley to the bracket. Secure it with one M10 x 1 ¾” Allen Bolt (#71), two Ø ¾” Washers (#84), and one M10 Aircraft Nut (#83).
  • Page 19 DIAGRAM 6...
  • Page 20 STEP 7 (See Diagram 7 & Cable Loop Diagram) A.) Attach the 157” Lower Cable (#60) to the opening on the bottom of the Leg Developer (#11). B.) Attach a Pulley (#62) to the opening. Secure it with one M10 x 2 ½” Allen Bolt (#69), two Ø...
  • Page 21 DIAGRAM 7...
  • Page 22 STEP 8 (See Diagram 8) A.) Attach a Chain (#66) to the Lower Cable (#60) by using a Hook (#67). Attach the Shiver Bar Handle (#19) to the Chain by using another Hook. Adjust the length of the Chain to obtain the desired Arm Curl exercise. Replace Shiver Bar Handle with Ankle Strap (#68) for various exercises.
  • Page 23 Set up the Lock Combination A.) The combination is pre-set at 0-0-0 by the factory. B.) Turn the dials to 0-0-0 and aligned to the Combination Set Up Line. C.) Pull out the shackle and turn 180 D.) Press down on the shackle. E.) Turn the dials (aligned to the Combination Set Up Line) to your desired combination.
  • Page 24: Parts List

    PARTS LIST KEY NO. DESCRIPTION Q’ty 2” x 2 ¾” End Cap Main Seat Support Lock Ring Rear Base Frame 2” Sleeve Front Vertical Frame M18 Lock Knob Upper Frame M18 Quick Release Lock Pin Base Frame Ø 1” Cone-shaped End Cap Front Press Base Ø...
  • Page 25: Resistance Chart

    PM3200 WEIGHT RESISTANCE CHART WEIGHT PLATE Station Front Press Lat Pull Butterfly Low Pulley Leg Developer WEIGHT PLATE Station Front Press Lat Pull Butterfly Low Pulley Leg Developer Note: Each plate weights 10 lbs. Numbers are approximate. Actual weights may vary. Values for Butterfly are for each arm.
  • Page 26: Warranty

    IMPEX. IMPEX is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or other damages with respect to any economic loss, loss of property, loss of revenues or profits, loss of enjoyments or use, costs of removal, installation or other consequential damages or whatsoever natures.
