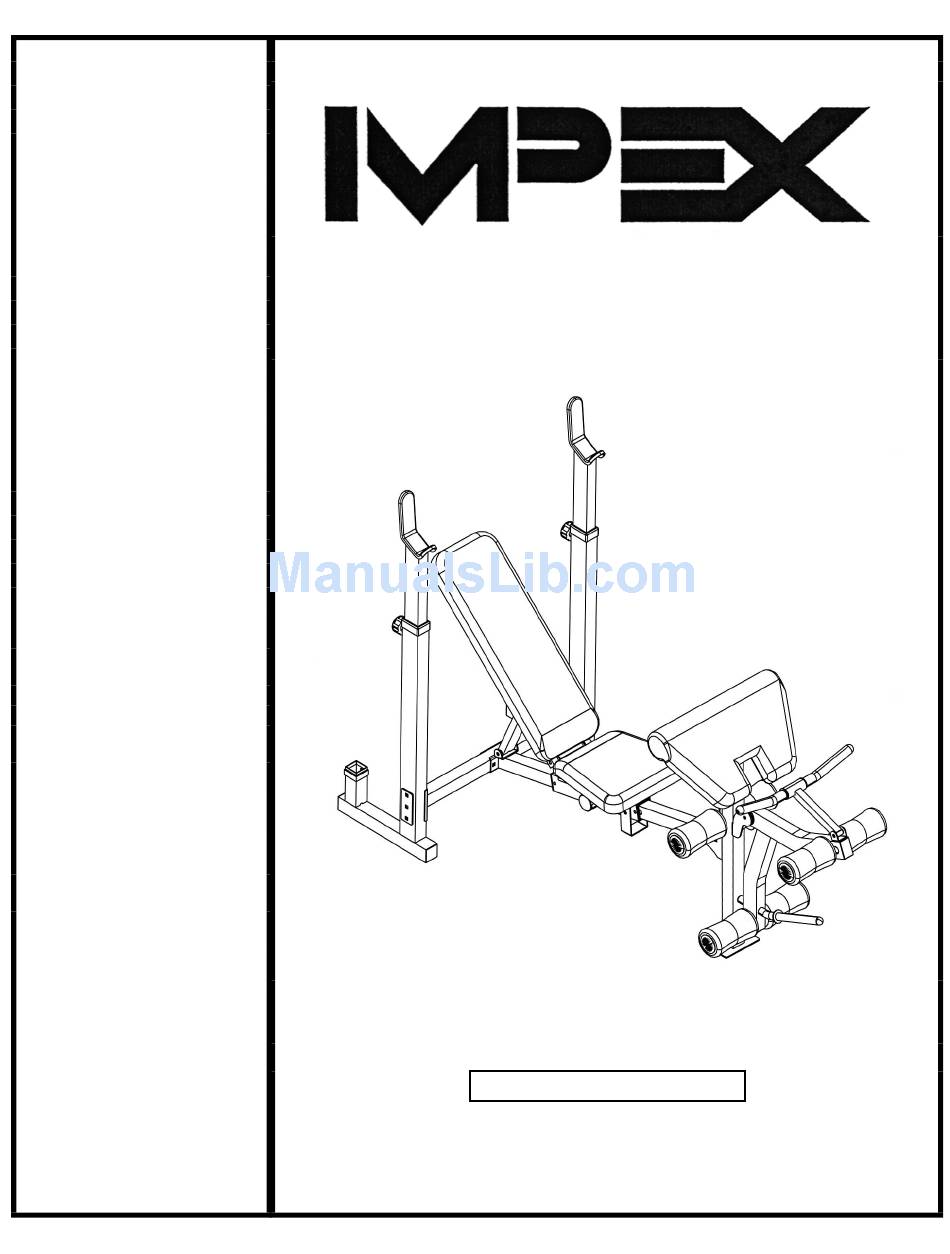

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents
APEX STANDARD BENCH
Safety Notice
AX-697
Hardware Identifier
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
AX-697
Retain This
Manual for
Reference
04-06-05
OWNER'S
IMPEX INC.
MANUAL
14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
info@impex-fitness.com
Advertisement
Table of Contents
Related Manuals for Impex AX-697
Summary of Contents for Impex AX-697
- Page 1 NOTE: Please read all instructions carefully before using this product Table of Contents APEX STANDARD BENCH Safety Notice AX-697 Hardware Identifier Assembly Instruction Parts List Warranty Ordering Parts Model AX-697 Retain This Manual for Reference 04-06-05 OWNER'S IMPEX INC. MANUAL 14777 DON JULIAN RD., CITY OF INDUSTRY, CA 91746...
-
Page 2: Table Of Contents
ORDERING PARTS..................BEFORE YOU BEGIN Thank you for selecting the APEX Bench AX-697 by IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction. -
Page 3: Important Safety Notice
IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1. -
Page 4: Hardware Pack
HARDWARE PACK... -
Page 5: Assembly Instruction

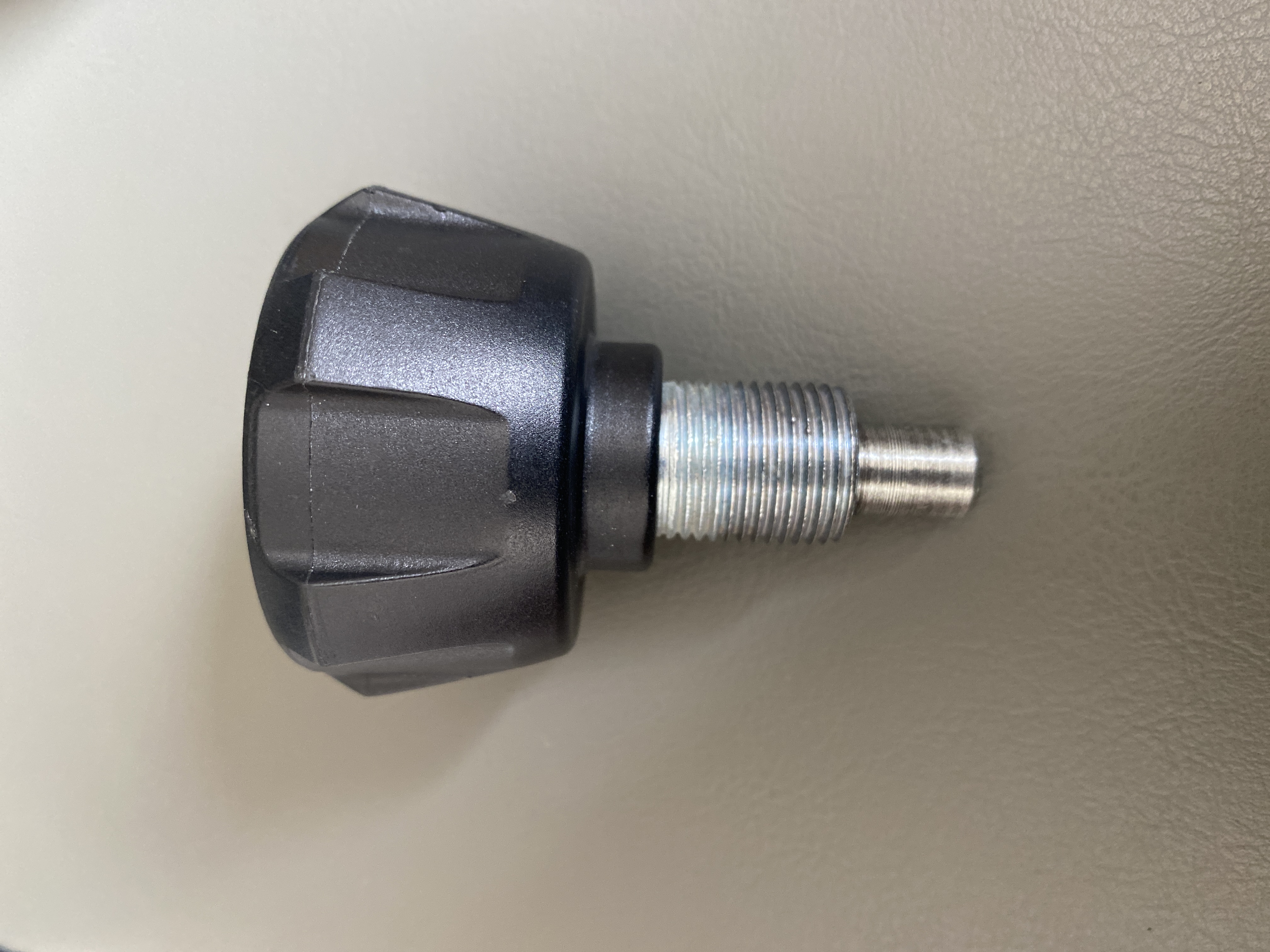

ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches and Allen Wrenches NOTE: It is strongly recommended two or more people assembling this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Connect the Right Upright Beam (#1) and Left Upright Beam (#2) by a Cross Brace (#3) in the mid-span. - Page 6 STEP 2 (See Diagram 2) A.) Slide the Sliding Block (#5) onto the Main Seat Support (#4). Align the holes and secure it with a Lock Knob (#23). B.) Attach the Main Seat Support to the Cross Brace (#3). Secure it with two M10 x 2 ½” Carriage Bolts (#38), one 4 3/8”...
- Page 7 STEP 3 (See Diagram 3) A.) Attach the Seat Bracket (#6) to the pivot on the Sliding Block (#5). Push two ¾” x 3/8” Bushings (#53) through the holes on the Seat Bracket into both ends of the pivot. B.) Attach the Backrest Supports (#12) to the Bushings. Secure it with one M10 x 7 ¼” Hex Bolt (#42), two ¾”...
- Page 8 STEP 4 (See Diagram 4) A.) Attach the Seat Incline Adjustment (#19) to the two front holes on the bottom of Seat Bracket (#6). Place the Seat (#18) onto the Seat Bracket. Align the holes and secure it with four M8 x ¾” Allen Bolts (#35) and four 5/8”...
- Page 9 STEP 5 (See Diagram 5) A.) Insert one Foam Tube (#31) halfway through the hole on the Leg Developer Holder (#8). Insert two Foam Tubes (#31) halfway through the holes on the Leg Developer (#9). B.) Push six Foam Rolls (#32) onto the Tubes from both ends. Plug six Foam Roll End Caps (#33) into the ends.
-
Page 11: Parts List
PARTS LIST KEY NO. DESCRIPTION Q’ty Left Upright Beam Right Upright Beam Cross Brace Main Seat Support Sliding Block Seat Bracket Crutch Leg Developer Holder Leg Developer Arm Curl Stand Backrest Incline Support Backrest Support Curl Bar Handle Support Curl Bar Handle Grip Arm Curl Pad Backrest Board... -
Page 12: Impex Inc
IMPEX INC. LIMITED WARRANTY IMPEX Inc. ("IMPEX") warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the Frame from the date of purchase. This warranty extends only to the original purchaser.
