VERSION
# 20-0 8 - 06
1 /9

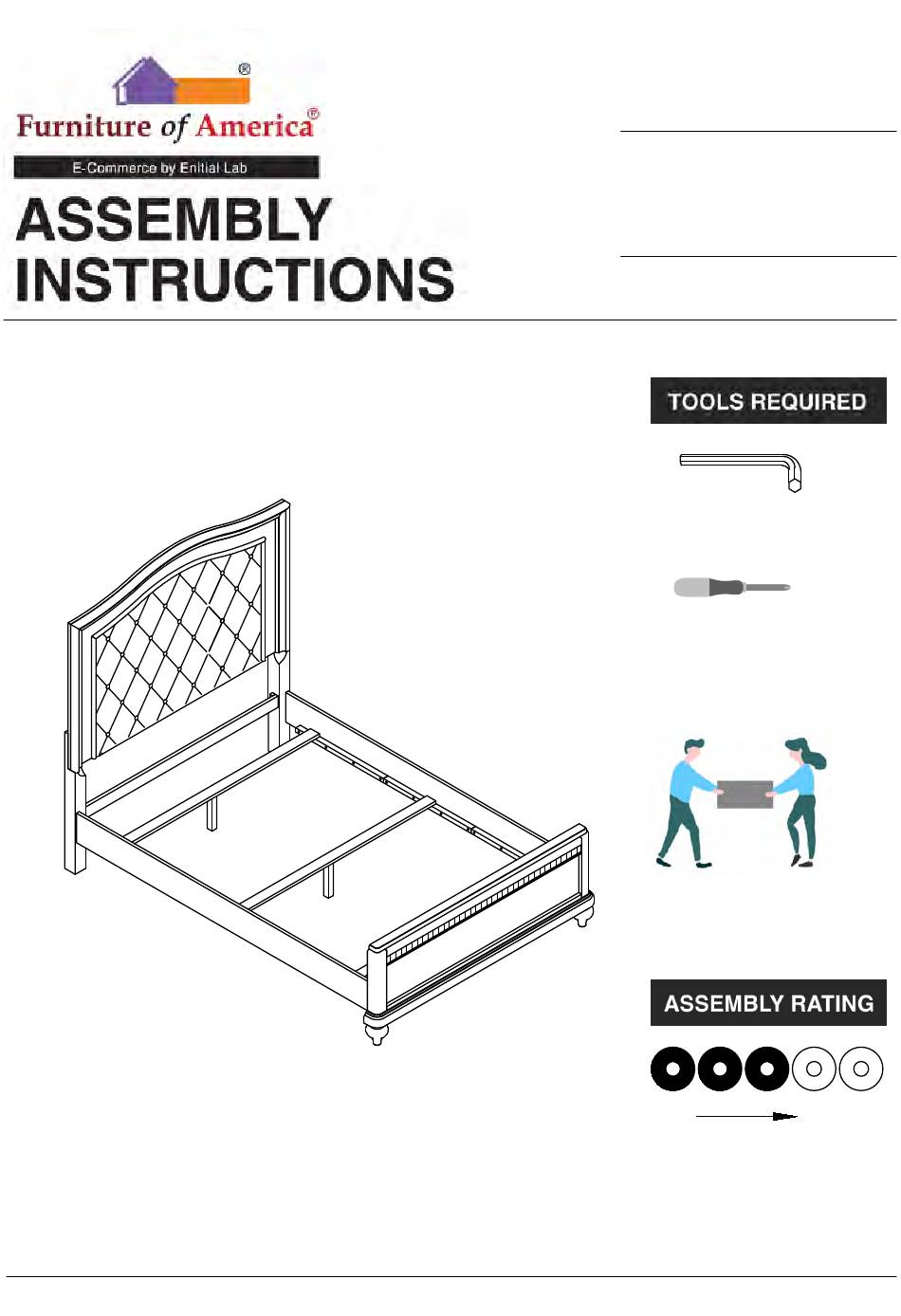

MODEL #
CM7171Q /F
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
3 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM7171Q /F
Summary of Contents for Furniture of America CM7171Q /F
- Page 1 MODEL # CM7171Q /F Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 3 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 9...
- Page 5 CM7171Q /F #1 1pc #2 2pcs #3 1pc #4 1pc Headboard Leg Cross bar (L&R) Footboard Headboard Panel #5 2pcs #6 3pcs #7 2pcs #8 3pcs Ø1/4" Support Leg Side Rail Bed Slat Bun Foot 195x30x30mm #A 8pcs #B 8pcs...
- Page 6 CM7171Q /F is packed in 3 cases Carton Disignation Part Hardware #A 8pcs Headboard Panel #B 8pcs #C 8pcs CM7171Q /F -HB Headboard Leg(L&R) #D 6pcs #E 1pc Cross bar Footboard Bun Foot CM717 0Q/F -FB Bed Slat Support Leg...
- Page 7 ASSEMBLY INSTRUCTIONS 2) Align HB legs (#2R/L) to the holes of the headboard (#1). Secure by using bolts Part #1 x1pc (#A). Part #2 x2pcs Part #3 x1pc Hardware #A x8pcs Hardware #B x8pcs Hardware #C x8pcs # 2L 1) Prepare 8 bolts assembly by inserting lock washer (#B), then flat washer (#C) onto bolts (#A).
- Page 8 ASSEMBLY INSTRUCTIONS Part #6 x3pcs Part #8 x3pcs Attach support legs (#8) to each slats (#6). Adjust the adjustable foot of the support legs (#8) according to ground level. Part #5 x2pcs Align and hook side rails (#5) to the latch of the headboard (#1) and footboard (#4). Make sure it is firmly in place.
- Page 9 ASSEMBLY INSTRUCTIONS Hardware #D x6pcs Align slats (#6) to the side rails (#5), then secure by using screws (#D). 9 / 9...
