VERSION # 20-11-07
1 / 9
MODEL #
CM7176F
Questions?
GIVE US A CALL: 1-888-980-5122
MON – FRI 8:30AM – 5:30PM (PST)
TOOLS REQUIRED
3 - People
Recommended
ASSEMBLY RATING
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM7176F
Summary of Contents for Furniture of America CM7176F
- Page 1 MODEL # CM7176F Questions? GIVE US A CALL: 1-888-980-5122 MON – FRI 8:30AM – 5:30PM (PST) TOOLS REQUIRED 3 - People Recommended ASSEMBLY RATING EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 Furniture America FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 9...

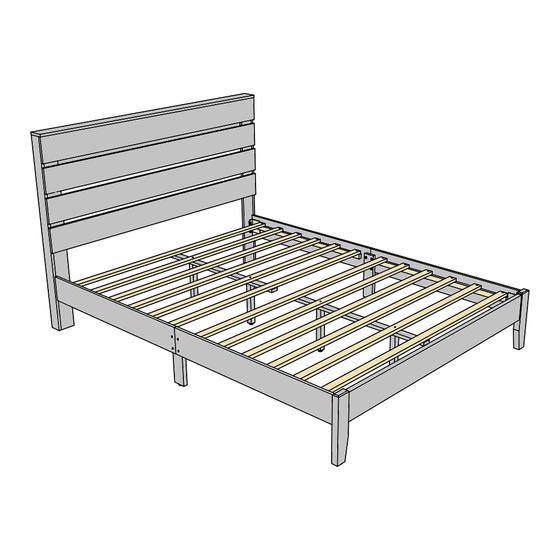

- Page 5 FULL BED CM7176F #3 1pc #4 2pcs #5 2pcs #6 2pcs #2 3pcs Top Front Side Rail Headboard Right Footboard Footboard Side Rail Bed Slat - Bed Slat Bed Center Slat Leg Left Leg Right 1387x45x18mm - 815x45x18mm Support -...
- Page 6 ASSEMBLY INSTRUCTIONS Align Headboard Leg(#4) to the Top front Headboard(#1), then secure by using pan head screw(#F) Part #1 x1pc Part #4 x2pcs Hardware #F x6pcs Sticker L Left Sticker R Right Back View NAIL LEG Hardware #H x12pcs Turn-over the fixed part (#1) &...
- Page 7 ASSEMBLY INSTRUCTIONS Back View Part #2 x3pcs Align the Front Headboard Panel (#2) on the fixed dowel(#H) as shown. Hardware #F x12pcs Lift Headbord with Secure Headboard Leg Upside down (L&R)(#4)and Front Headboard position as shown Panel (#2) with Pan Head Screw(#F) by thighten with Screw Driver (NOT PROVIDED) as shown..
- Page 8 ASSEMBLY INSTRUCTIONS Insert Dowel (#G) to the Footboard Panel (#3) and attach Footboard Leg(L&R) (#7) & (#8) accordingly secure with JCBC (#B), Spring washer (#C) and Bend-Washer (K) . Tighten with Part #3 x1pc Allen Key (#I) as shown. Part #7 x1pc Part #8 x1pc...
- Page 9 ASSEMBLY INSTRUCTIONS Align the Side Rail (#5) and (#6) to Headboard & Footboard then secure by tightening bolts. #12 #11 Part #10 x12pcs Part #11 x4pcs Part #12 x2pcs leveler Hardware #B x4pcs Hardware #E x24pcs Align the Bed Slat Support Leg (#11), Bed Slat (#10)
