Summary of Contents for BOERPLAY Little-Play Glippini

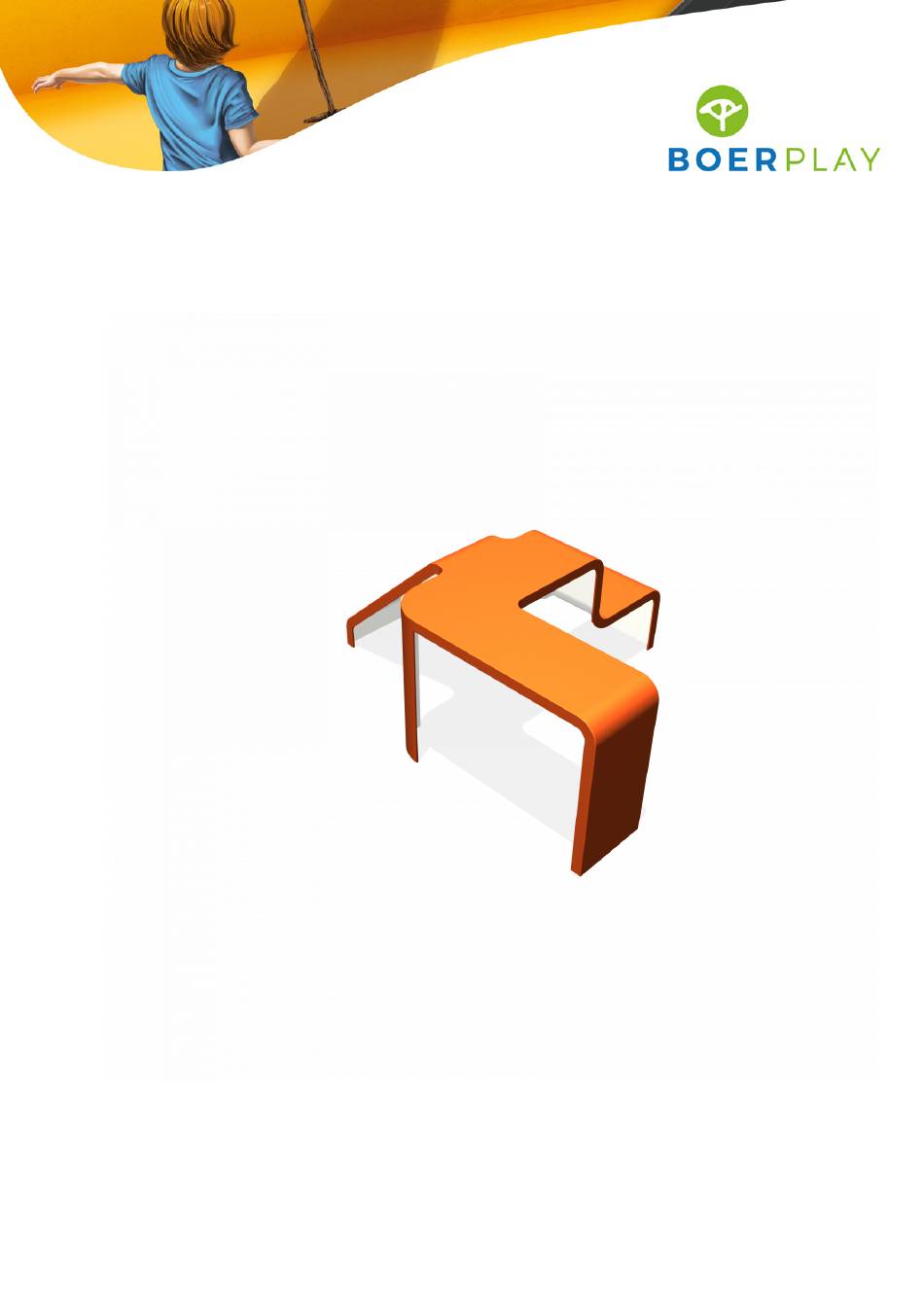

  • Page 1 Little-Play Glippini LTPE381.756...
  • Page 2 0,00 m 0,39 m 0,68 m 1,50 m 0,55 m 0,25 m 0,00 m Benaming TOE LTP 381 756 Title Tekening Opmerking Drawing Comment BOER Datum Afmetingen Dimensions 18-4-2013 Date SPEELTOESTELLEN...
  • Page 3 4,50 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE LTP 381 756 Title Tekening Opmerking Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 18-4-2013 Date SPEELTOESTELLEN...
  • Page 4 0,30 m 0,69 m 1,48 m 0,55 m 1,47 m 0,32 m Grondmarkering Ground level marker 0,36 m Benaming TOE LTP 381 756 Title Tekening Opmerking Drawing Comment BOER Datum Bodemplan Groundplan 18-4-2013 Date SPEELTOESTELLEN...
  • Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
  • Page 6 LTPE381.756 Little-Play Glippini LOGBOOK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type indication Play triggers Product code LTPE381.756 Name of equipment Little-Play Glippini Maximum height of fall <...
  • Page 7: Maintenance

    LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear.
  • Page 8 Dit toestel is geen speeltoestel conform het warenwetbesluit attractie- en speeltoestellen, en is dus niet als zodanig gecertificeerd. This equipment is not playground equipment, so it has not been certified as such.
  • Page 9 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Glippini Little Play Benaming MOD LTP 756 Glippini Title Tekening Opmerking Little Play Drawing Comment BOER Datum Samenstelling module Assembly module 14-11-2016 Date SPEELTOESTELLEN...
  • Page 10 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Zeskantbout ISO 4014 M12 x 40 - VZ 8.8 Carrosseriering M12 x 35 - VZ 8.8 POER MODEL 9 Benaming MOD OBT 009 001 Poer Model 9 Title Tekening Opmerking Gewicht 33,5 kg Drawing Comment BOER...

This manual is also suitable for:

Ltpe381.756
