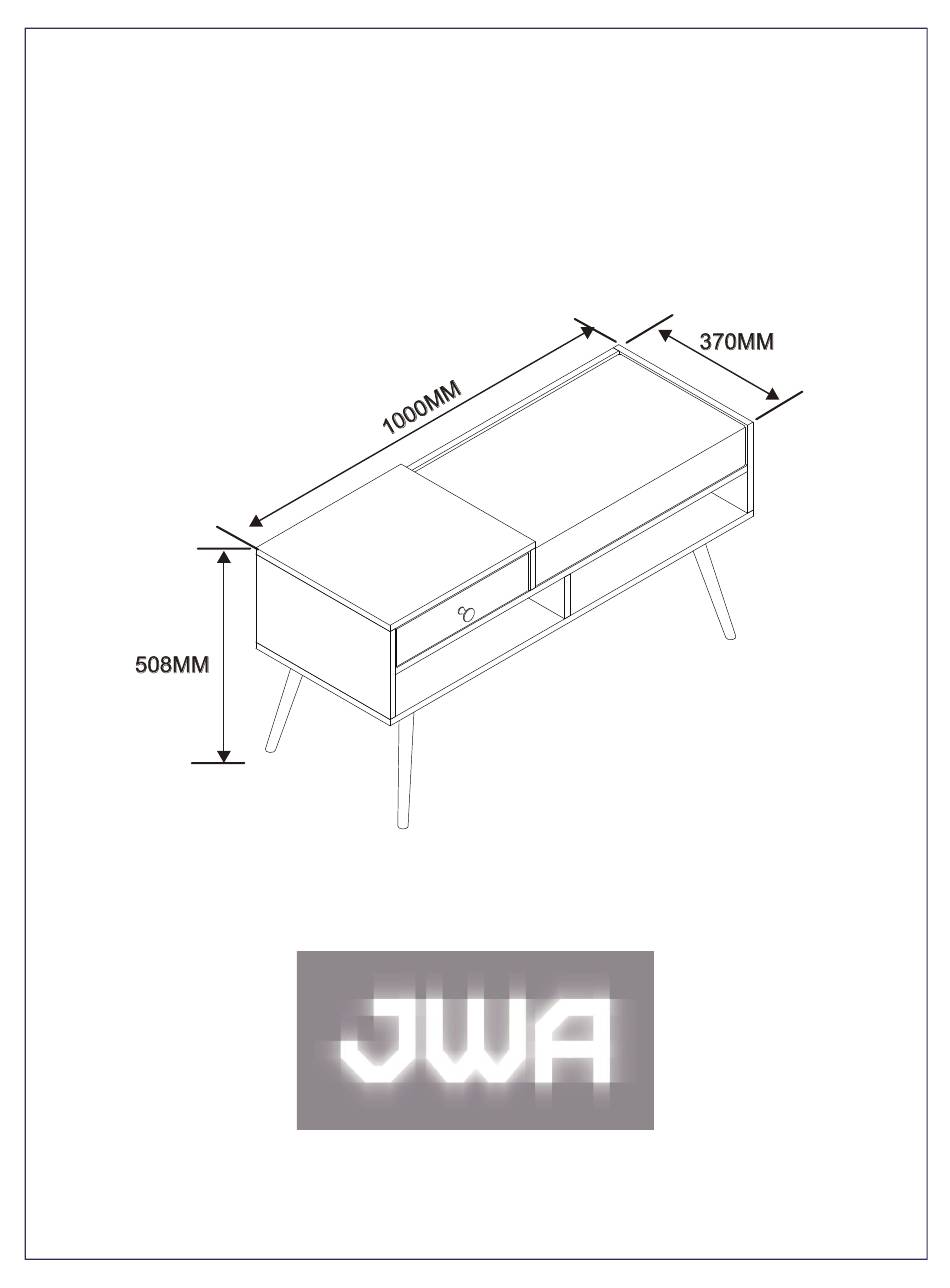

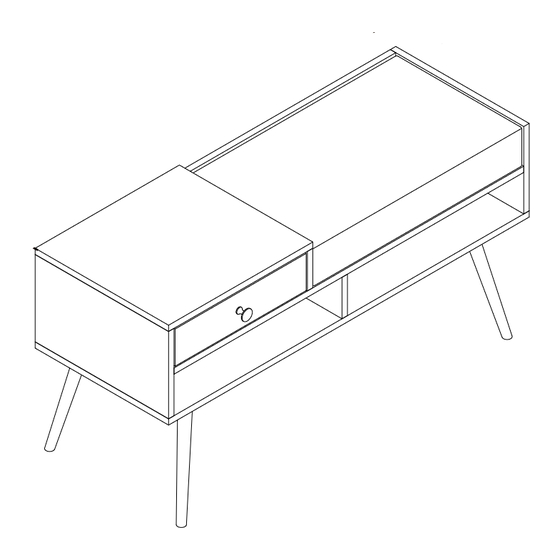

- Page 1 ASSEMBLY INSTRUCTION MARTOS BENCH ITEM CODE 70192 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 3: Parts List
PARTS LIST M7X39mm M14.8X12mm M8X30mm M3.5X14mm 16pcs 16pcs 27pcs 6pcs M5X40mm 13pcs 2pcs 1pcs 4pcs M4X14mm M4X14mm M4x30mm M3.5x14mm 20pcs 4pcs 2pcs 1pcs 1pcs SIDE PANEL TOP PANEL MIDDLE PANEL DRAWER SIDE PANEL SHELF DRAWER SIDE PANEL SIDE PANEL DRAWER BACK PANEL MIDDLE PANEL DRAWER BASE DRAWER FRONT... - Page 4 STEP 1:...
- Page 5 STEP 2: STEP 3:...
- Page 6 STEP 4: STEP 5:...
- Page 7 STEP 6: STEP 7:...
- Page 8 STEP 8: STEP 9:...
- Page 9 STEP 10: STEP 11:...
- Page 10 STEP 9: STEP 9:...
- Page 11 ASSEMBLY COMPLETE...
- Page 12 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 13 To protect your furniture, we suggest the following: • Avoid placing your furniture in direct sunlight. • Do not place furniture directly under windows. • Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the finish.
