Summary of Contents for JWA 70190

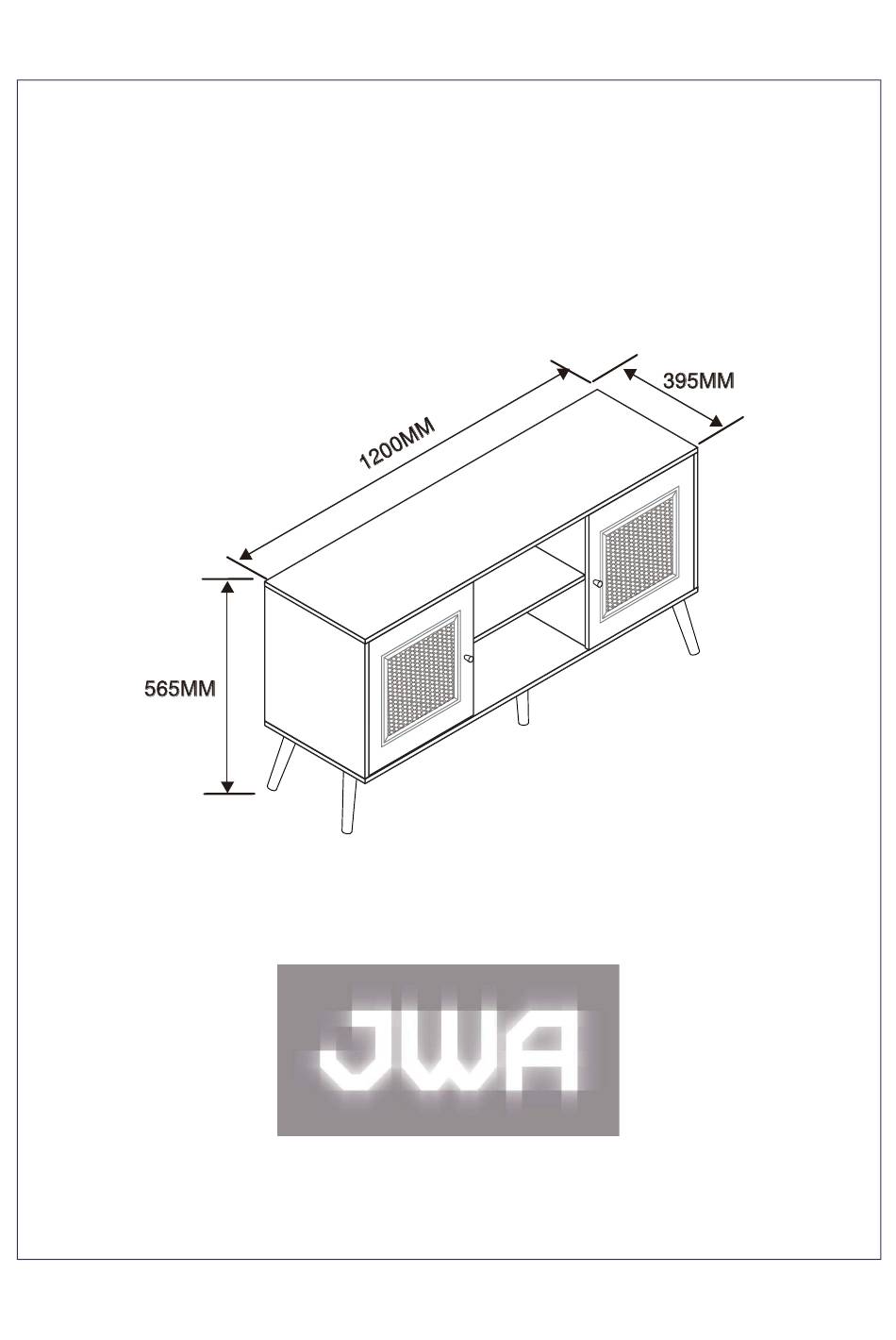

- Page 1 ASSEMBLY INSTRUCTION CLEMENTINE ETU ITEM CODE 70190 Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when li ing. Product should be assembled as near as possible to the point of use 3. -
Page 3: Parts List
PARTS LIST M7X39mm M14.8X12mm M8X30mm M5X40mm 8pcs 8pcs 20pcs 12pcs M4X14mm 4pcs 20pcs 4pcs 4pcs M3.5X14mm M3X16mm 16pcs 2pcs 18pcs 1pcs M4x30mm M3.5x14mm 1pcs 1pcs MIDDLE PANEL TOP PANEL BACK PANEL MIDDLE PANEL DOOR SHELF DOOR SIDE PANEL SIDE PANEL FILLER BOTTOM PANEL... - Page 4 CAM LOCK INSTALL METHOD AS FOLLOWS 1.1cm Step 1 Step 2 Step 3 Lock Fix cam nut into the bottom of hole then tighten it.
- Page 5 STEP 1: STEP 2:...
- Page 6 STEP 3: STEP 4:...
- Page 7 STEP 5: STEP 6:...
- Page 8 STEP 7: STEP 8:...
- Page 9 STEP 9: I I I I I I I...
- Page 10 ASSEMBLY COMPLETE...
- Page 11 SAFETY BRACKETS INSTRUCTIONS 1. Attach one Mounting Plate to the wall with the Large Screws. Make sure to attach the Mounting Plate into a stud. If mounting into brick or masonry you will need to acquire wall anchors. 2. Attach the second Mounting Plate to the furniture frame with the Short Screws.
- Page 12 To protect your furniture, we suggest the following: Avoid placing your furniture in direct sunlight. Do not place furniture directly under windows. Do not place sharp materials (knife, fork, etc.) directly onto your furniture as sharp material may scrape and damage the nish.
