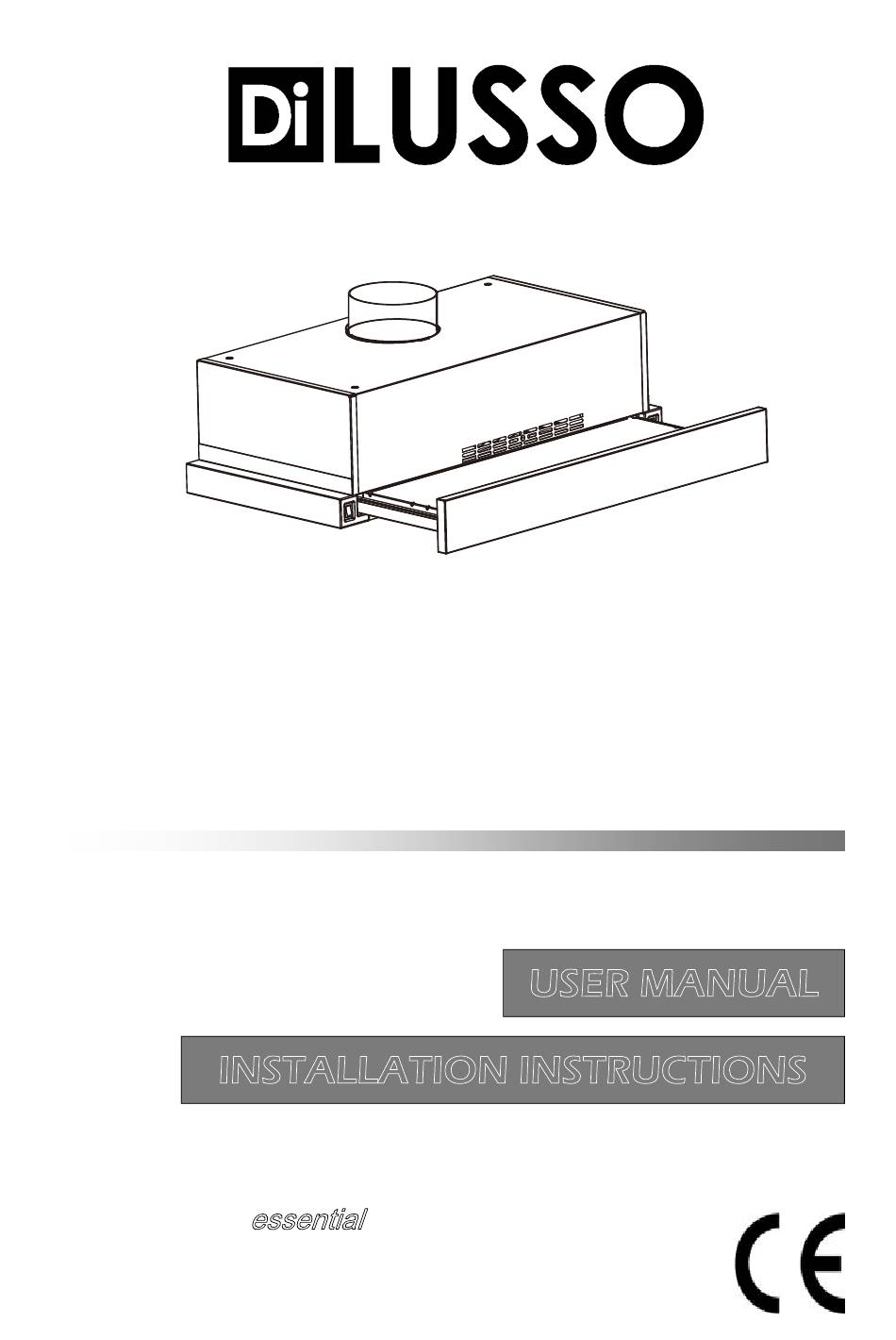

- Page 1 TH619DSL TH919DSL TH633DSL TH933DSL TELESCOPIC HOOD USER MANUAL INSTALLATION INSTRUCTIONS To avoid the risk of accident or damage to the essential appliance, it is to read the following instruction prior to product installation and / or first time usage...
-
Page 2: Table Of Contents
Table of Contents Important Notes -------------------------------------------- 3 ・ Specifications ----------------------------------------------- 5 ・ Vent System Requirements ----------------------------- 5 ・ Ducted & Re-circulating Mode -------------------------- 6 ・ Description of Parts ---------------------------------------- 8 ・ Instruction for Use ----------------------------------------- 10 ・ Technical Information ------------------------------------- 11 ・... -
Page 3: Important Notes
Important Notes Dear Customer Thank you for choosing our product. This appliance is easy to use; however please read this handbook carefully before installing and operating it. Here- in, you will find the correct method of installation and tips for best use and maintenance of the product. - Page 4 ・ For any repairs, always contact authorised Customer Service Centre and ask for original spare parts. Repairs by untrained people may lead to damage and void of warranty. ・ Packaging cling film, polystyrene and plastic wrappings must be kept out of reach of babies and young children to avoid suffocation.
-
Page 5: Specifications
Specifications TH619DSL TH919DSL TH633DSL TH933DSL Input : 220-240V~ 220-240V~ 220-240V~ 220-240V~ / 50-60 Hz / 50-60 Hz / 50-60 Hz / 50-60 Hz Absorption : 130W 130W 260W 260W Lamps : 2 x 2W 2 x 2W 2 x 2W... -
Page 6: Ducted & Re-Circulating Mode
Ducted Vs Re-Circulating Mode Your cooker hood is configured to be operated in the ducted or recirculating mode (depending on model). Ducted Mode (Vented Mode) Cooking fumes are vented outdoors through suitable connection of 150mm diameter. In this mode, only the aluminum filters are installed. - Page 7 Re-circulating Mode (Depending on models) Fumes are filtered for grease and odours through the aluminium grease filters and the charcoal filters respectively and re-introduced into the kitchen environment. In re-circulating mode, both aluminium grease filters and the charcoal filters must be installed. IMPORTANT! Recirculation holes cover must be removed.
-
Page 8: Description Of Parts
Description of Parts... - Page 9 Quantity Part Rangehood body with integrated motor, controls & light Flaps Outlet adaptor Outlet cover Recirculation holes cover Charcoal filter (Optional) Aluminium filter User manual Mounting screws M5*40 Mounting gasket...
-
Page 10: Instruction For Use
Instructions for Use By pressing the button shown below, you will be able to control the functions of the extractor. Speed Light To achieve better extraction, we recommend to switch on the extractor a few minutes before starting to cook (3—5 minutes) so that the air flow is continuous and stable when extracting fumes. -
Page 11: Technical Information
Technical Information TH619DSL TH633DSL TH919DSL TH933DSL... -
Page 12: Installation
Installation To fix the rangehood to the kitchen unit. The lower part of the hood must be located at a minimum height of 70cm above the hob for electric and gas cookers. If the instructions of a gas cooker indicate a greater distance these must be observed. When the rangehood is working at the same time as other non-electrical cooking equipment, the outlet air pressure must not exceed 4 Pa. -
Page 13: Cleaning & Maintenance
Cleaning & Maintenance Before carrying out any cleaning or maintenance activities, ensure that the appliances is disconnected from the mains and follow the safety Instructions. Aluminium Filter Cleaning To withdraw the filters from their locations release the anchoring points. Clean the filter either putting in the dishwasher (refer to notes) or leaving it standing in hot water to simplify the removal of grease or, if wished, by means of special sprays (protecting the non metallic parts). - Page 14 Changing Bulbs Disconnect the mains beforehand and check that the bulbs to be replaced are not hot. Take off the lamp cover. Loosen the lamp anticlockwise. Replace with 2W E14 LED lamp. LED spec : ・ CTH06-78A(D15) ・ Max wattage : 2W ・...
-
Page 15: Troubleshooting
Troubleshooting Symptoms Possible Causes Action Check that the plug is connected Does not function No power supply Check that the main switch is turned on Poor airflow Aluminum filters grease Clean the filters and fix clogged it back when it is dry Motor running but no Butterfly valve jammed Contact technician... - Page 16 Schematic Diagram...
