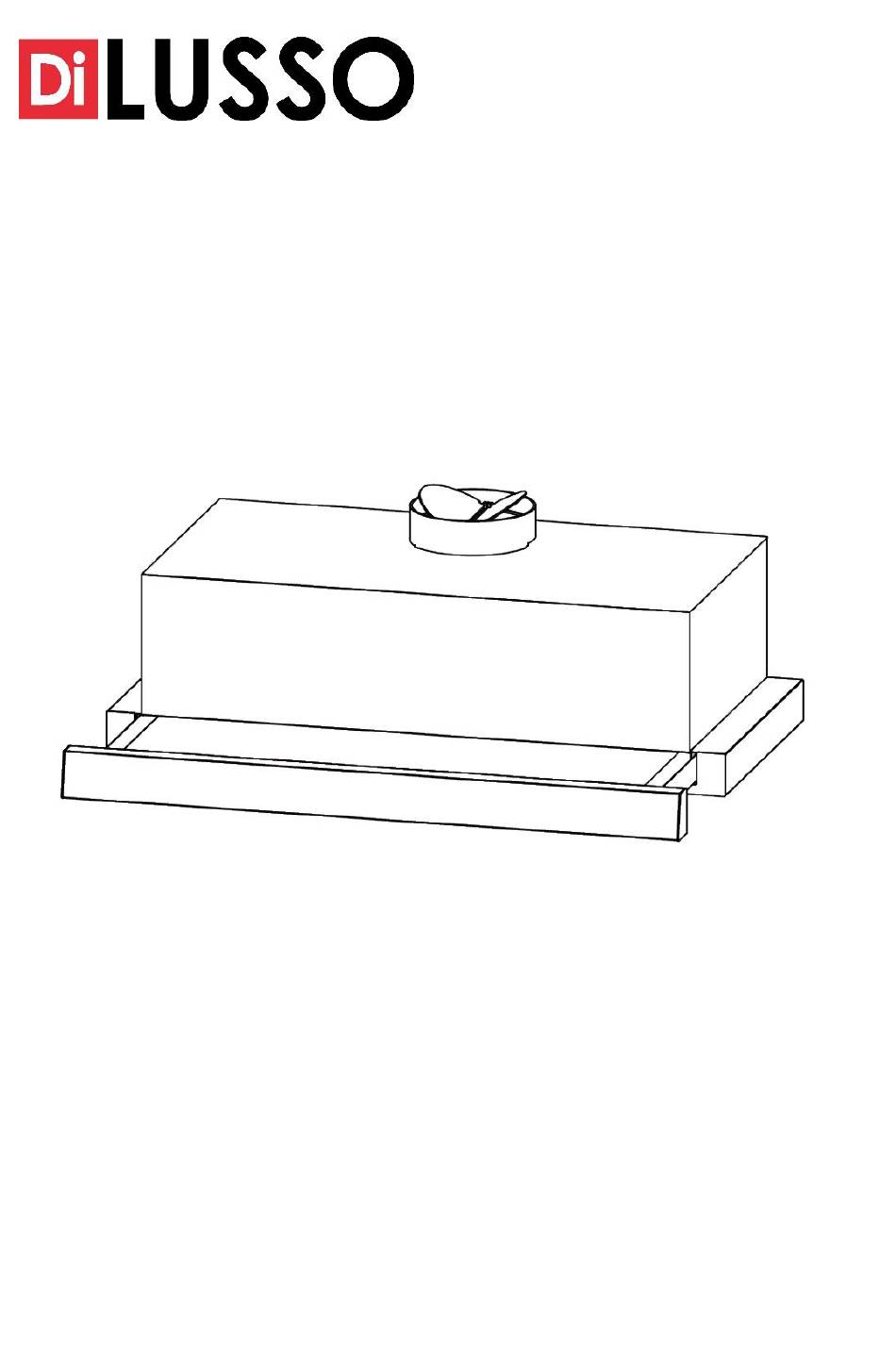

- Page 1 TELESCOPIC HOOD TH602MSL TH604MSL INSTALLATION MANUAL USER MANUAL Read this manual carefully before operation to avoid risk of accident or damage to the appliance Images in this manual are for reference only, refer to physical unit for exact dimensions.
-
Page 2: Table Of Contents
TABLE OF CONTENTS SECTION PAGE Important Notes Components Dimensions Installation How to Use Maintenance Troubleshooting... -
Page 3: Important Notes
Congratulations on the purchase our cooker hood. Before installing and/or using the cooker hood carefully read all the instruction. IMPORTANT NOTES The instructions for use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance. INSTALLATION The manufacturer will not be held liable for any damages resulting from incorrect or improper installation. -
Page 4: Components
COMPONENTS Ref. Qty. Product Components Hood Body, complete with: Controls, Light, Motor, Filter. Butterfly valve The Activated Charcoal filter (1 / 2 optional ) Screws 5 x 50 Wall Plugs... -
Page 5: Dimensions
DIMENSIONS unit：mm Min. Min. Model TH602MSL TH604MSL... -
Page 6: Installation
INSTALLATION METHOD 1 Referring to the above diagram, align the position of the hood with the cabinet. Insert the 4 screws (supplied) into the screw holes and tighten. Screws should be fastened firmly, ensure that the hood is securely fastened to the cabinet and is stable before using. - Page 7 To mount on the wall, insert and secure 2 screws (supplied) into the relative position of the 2 screw holes on the back of hood. Also install screws in the security hole positions, to further stabilise the hood. Ensure hood is secure and stable before using. Warning Right Wrong...
- Page 8 DUCTED MODE Insert the butterfly valve into the flue hole, and turn clockwise to secure. The butterfly valve must be used for ducted mode. When installing the ducted version, connect the hood to the outlet vent using either a flexible or rigid pipe ɸ 150 or ɸ 120 mm, the choice of which is left to the installer.
-
Page 9: How To Use
HOW TO USE Before using Check the condition of the appliance： Check whether there are visible defects. Check that all parts of the appliance have been securely fitted. Switching on/off Pull out the fascia and locate the switches on the right. There are 2 speeds for the motor and on/off switch of the light. -
Page 10: Maintenance
MAINTENANCE GREASE FILTERS CLEANING ALUMINIUM FILTERS The filters must be cleaned every month of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher. Press the anchoring hinge to release them. Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards. - Page 11 LIGHTING LIGHT REPLACEMENT Before changing the light bulbs(s), unplug the appliance from the mains or switch off the circuit breaker at the fuse box. 1. Remove the aluminum grease filter. 2. You can remove the bulb by rotating the bulb, the replacement bulb specifications are as per table below.
-
Page 12: Troubleshooting
