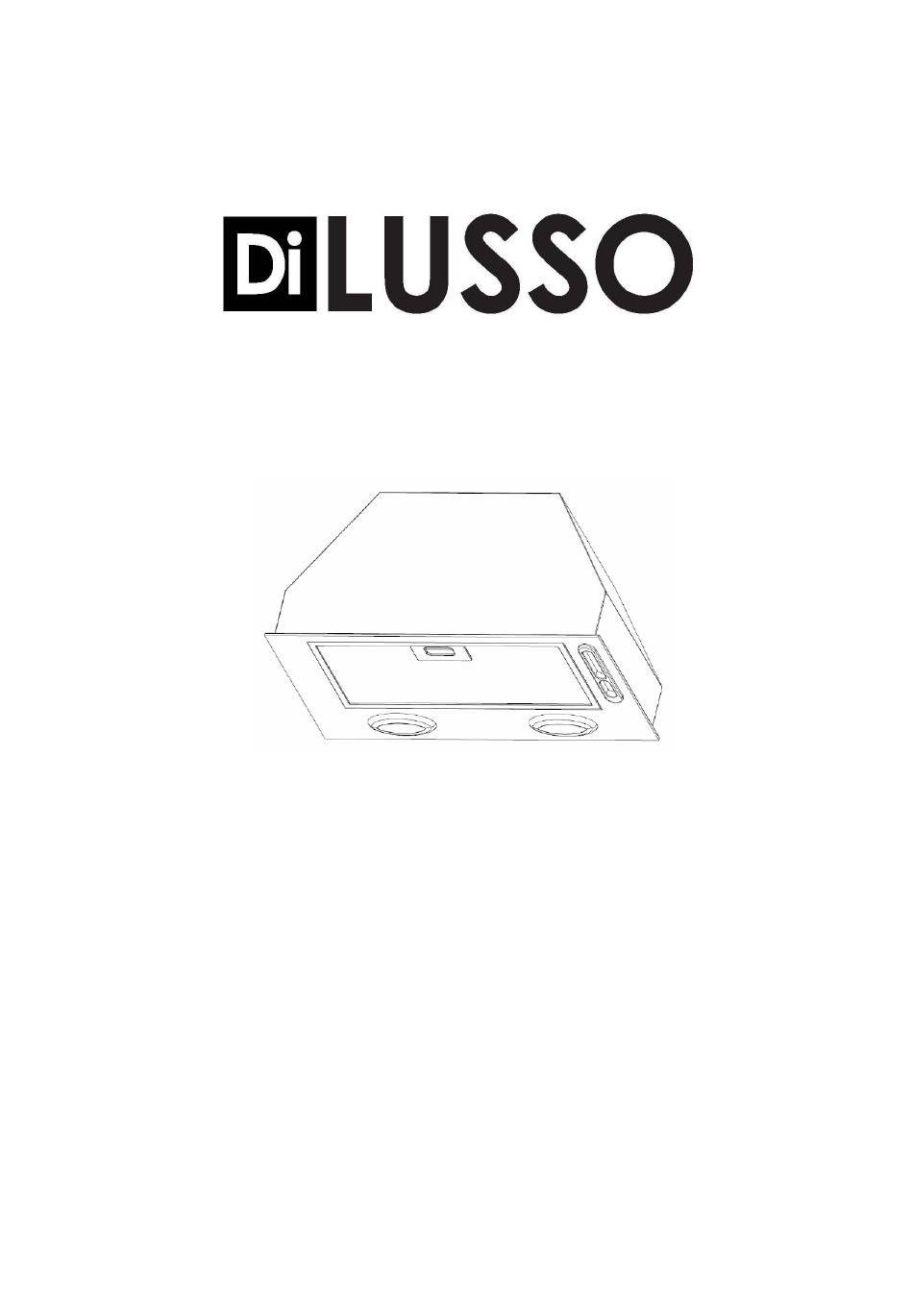

- Page 1 Concealed Range Hood CE620HSS/CE920HSS Installation and Operating Manual Version 1.3 June 2018...
-
Page 2: Table Of Contents
CONTENTS Important Notes ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐page 3 Safety Product Specification ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐page 4 Installation Instruction ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐page 5 Equipment needed for Installation Prior to Product Installation Product Installation Location Ducted Mode : Ductwork Installation Recirculation Mode Mounting the Range Hood Operating Instruction ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐page 8 Cleaning and Maintenance ‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐‐page 8 General Maintenance Filter Maintenance Replacement of LED ... -
Page 3: Important Notes
Important Notes Dear Customer Thank you for choosing our product. To avoid the risk of accident or damage to the appliance, it is essential to read the following instructions prior to product installation and / or first time usage. Safety! Do not connect the appliance if there is any obvious sign of transportation damage. Installation and repair should ONLY be done by qualified technical personnel. This product must be installed and electrically connected in accordance with current regulations. A fixed wiring installation is to be done only by an authorised electrician. Before maintenance or cleaning of the product, disconnect the appliance from the mains. For any repairs, always contact the authorised Customer Service Centre and ask for original spare parts. Repairs by untrained people may lead to damage and void the warranty. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they are supervised by a person responsible for their safety. Young children should be supervised to ensure that they do not play with the appliance. There is be adequate room ventilation while the range hood is in use together with other appliances. User is recommended to read and follow the method and frequency of cleaning and maintenance. There is a risk of catching fire if cleaning is not carried out in accordance with the instructions. ... -
Page 4: Product Specification
Lighting : GU10 LED 220‐240V 2W External Dimension : Note: All dimensions are in mm (600) relates to range hood model CE620HSS (900) relates to range hood model CE920HSS Complete product comes with the following 1 x range hood body 1 x front panel 1 x 150mm ducting adaptor 1 packet of fasteners and wall plugs ... -
Page 5: Installation Instruction
Installation Instruction Equipment needed for installation: Electric drill Screwdriver Measuring tape Spirit level Duct tape (for ductwork installation) Jigsaw (for ductwork installation) Prior to Product Installation Make sure that the product power switch is OFF prior to installation. Stainless steel panel could be damaged during installation if being knocked by tools. Protect the range hood with the cardboard during installation. ... -
Page 6: Ducted Mode: Ductwork Installation
Ducted Mode: Ductwork Installation Ductwork should be planned carefully before drilling and cutting the duct. Manufacturer suggests 150mm duct pipe for all common ducting configurations, which is, duct into a ceiling cavity or roof space. In case this is in contradiction with any local requirements and building codes, the installer must ensure that the product installation and connection complies with the local and general regulation in force. ... -
Page 7: Mounting The Range Hood
Mounting the Range hood Fit the ducting adaptor to the range hood by using the short screws supplied. Provide an appropriate opening at the cupboard underside. Model Opening Dimension CE620HSS 490mm x 260mm CE920HSS 668mm x 260mm Remove the front panel of the range hood by undoing the two visible screws located on both side‐ends. Eight mounting holes around the unit then are accessible. Lift the range hood and fit it to the cupboard opening made. Secure the unit by using long screws supplied. After that, refit the front panel, then fit the two lights. ... -
Page 8: Operating Instruction
Operating Instruction Control Panel Light The lighting can be turned ON/OFF independently by pressing the switch button without relying on the range hood fan status. Fan The fan is turned ON/OFF by pressing the fan switch button. The fan can run at three different speeds (Speed 1 / Speed 2 /Speed 3). Cleaning and Maintenance Caution: Prior to cleaning or maintenance, always disconnect the power supply. Do not use a steam cleaner. ... -
Page 9: Marking
In any event, grease laden filters could be flammable and catch fire easily. Therefore regular replacement is recommended. In ducted installation, conventional Aluminium filter is recommended. Replacement of GU10 LED light To replace the LED bulb, first disconnect the range hood from the power supply. Remove the GU10 lamp from socket in anti‐clockwise rotation. Replace the 2W LED bulb with new one. Marking CE620HSS CE920HSS Page 9 Version 1.3 June 2018...
