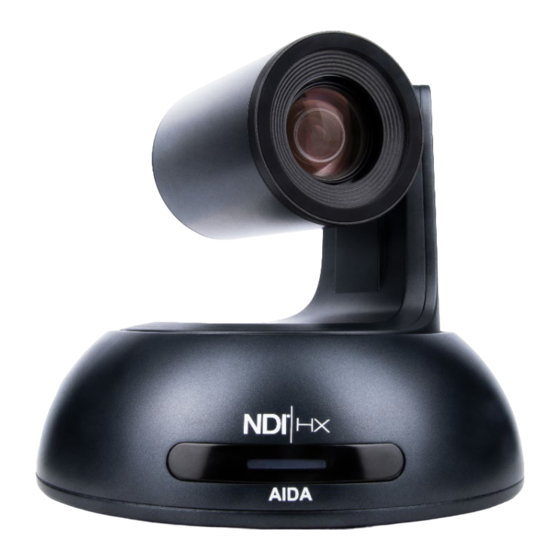

AIDA PTZ-NDI-X18 Upgrade Manual
Hide thumbs Also See for PTZ-NDI-X18:

Advertisement

Quick Links

PTZ-NDI-X18 FW Upgrade Guide
Version: 10.27.22

Advertisement

loading
Need help?

Need help?

Do you have a question about the PTZ-NDI-X18 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AIDA PTZ-NDI-X18

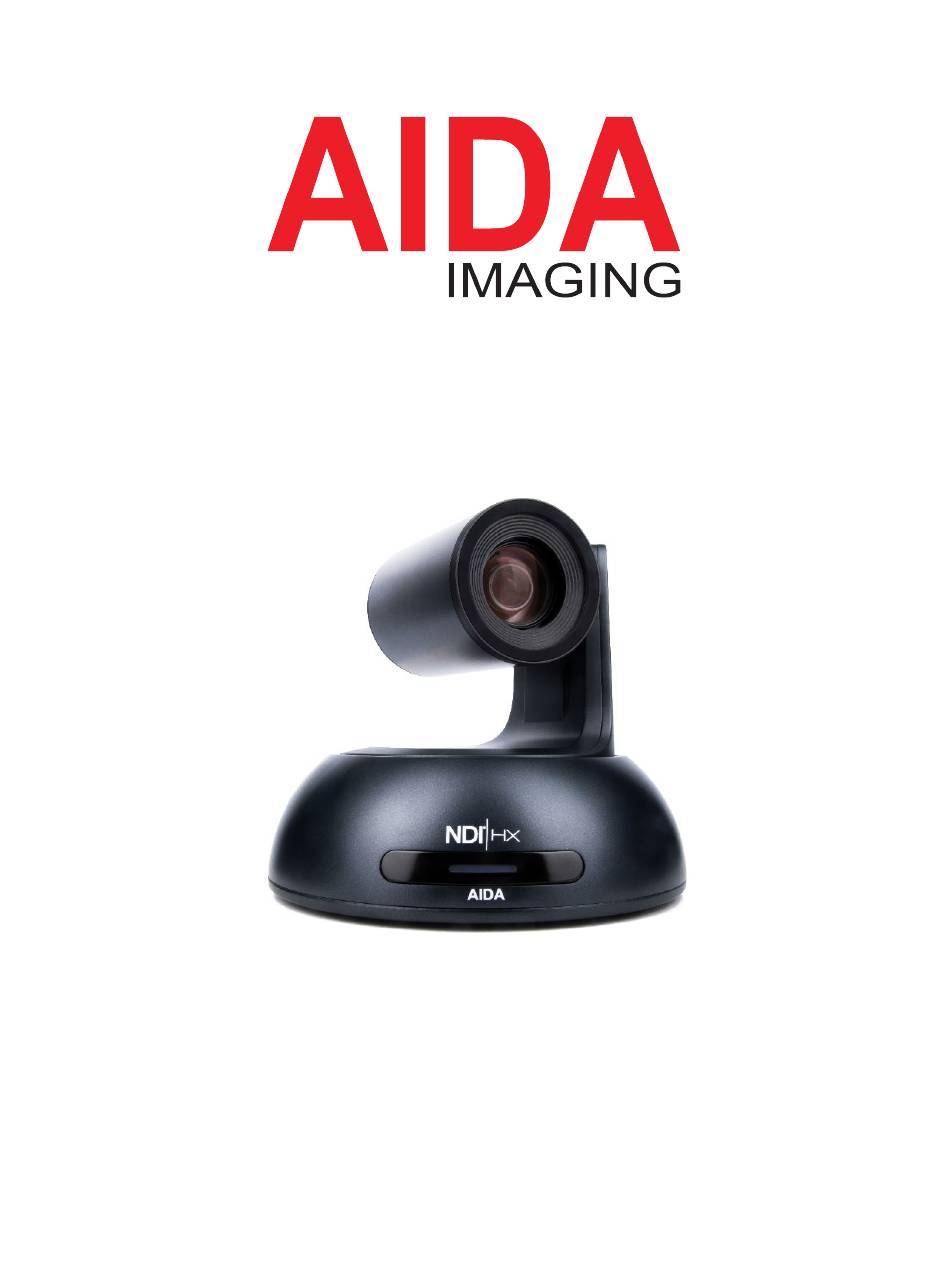

  • Page 1 PTZ-NDI-X18 FW Upgrade Guide Version: 10.27.22...
  • Page 2 Or give us a call during our normal business hours of 8AM-5PM, Monday to Friday (PST.) We will be more than happy to assist you. Thank you for choosing AIDA Imaging as your Imaging solution! Page | 2...
  • Page 3: What You Need

    What you need: • AIDA NDI Series Camera • RS232-Mini Din cable (included in box) • RS232-USB cable (not included)* • Network / Ethernet cable for web UI • Windows PC (apple not supported) • mcuFLY program** • Latest Firmware (hex and bin files) *RS232-USB cables can be found at your electronics stores, or Amazon.
  • Page 4 RS232-USB cable: RS232-Minidin cable included in the box: *Please make sure you downloaded the correct zoom model for your PTZ. The FW updates have different procedures. Page | 4...
  • Page 5 Step 1: Arm Upgrade 1. Please unplug the power from camera and flip the PTZ upside down. You are looking for a set of dipswitches labeled 1-6. You will flip switches 1 and 2 off. 2. Take your RS232-USB adapter, and connect it to the RS232-Mini Din cable.
  • Page 6 5. Through the checklist, make sure 1, 2, 3, and 4 all match your program. For 5, please upload the PTZ-NDI-X18-ARM-V1151.hex file. Once complete, please start 6 (Start ISP) 6. Progress will look like this: Page | 6...
  • Page 7 7. Wait for Mission Complete signal as seen below: 8. Next, let the camera sit for 1 minute to readjust. Once complete, go ahead and unplug the cables and power, and flip the switches back to the ON position you did in step 1.
  • Page 8 Step 2: ISP update 1. You will start by entering the web UI. Please make sure the PTZ and PC are either hardlined or on the same network. The default IP for the web address is 192.168.1.188. Default password is admin/admin *Note that if you are unable to access the cameras network, the camera’s ip address may not be on the same network or is changed.
  • Page 9 2. Next, you will head to the top right tab under settings. 3. Next, you will click select file and look for the PTZ-NDI-X18 ISP V1151.bin 4. Once found, wait for the upload box to appear. Then click upload. 5. Do not leave or exit the page. A prompt should pop up with a status bar.
  • Page 10 If you want to check if the FW update worked, go to the OSD menu and check the app version. If it has changed, then you have successfully update the FW. Latest Versions: X18 – V1151 After this, the firmware has been successfully updated! Page | 10...
  • Page 11 AIDA related! AIDA Imaging Newsletter Subscribe Form Again, if you have any questions about this process, please message or call our support staff at: support@aidaimaging.com...
