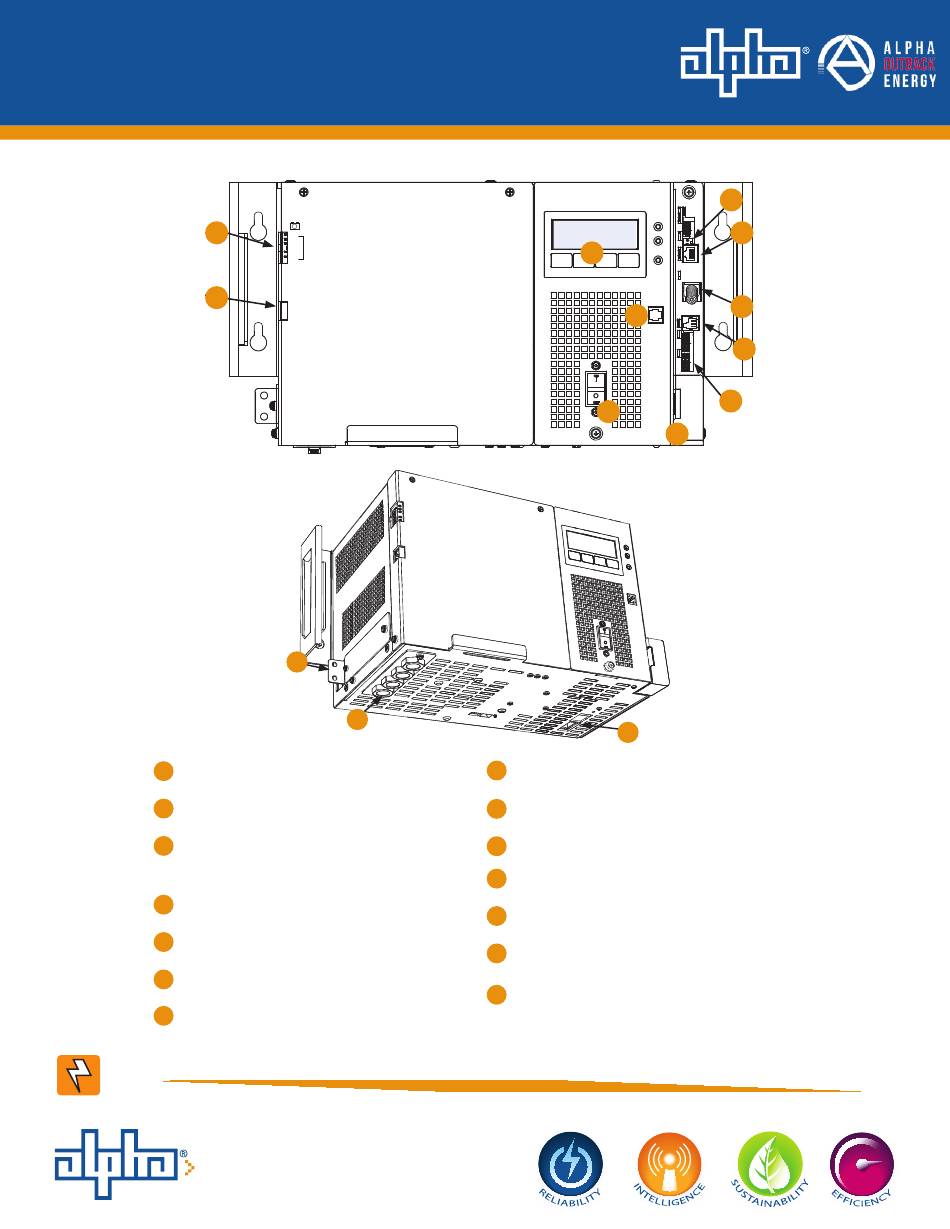

Alpha XM3V-HP CableUPS
11
10
1
Battery Connector
Battery Breaker
2
3
Precision Temperature Sensor
(PTS) Connector
4
LRI Connector
5
Smart Display
6
Battery Sense Connection
7
RF Connector
WARNING!
Verify battery voltage, cable color, connection and polarity are correct before proceeding.
Total Power Solutions
Quick Start Guide
®
SMART
i
ALPHAGUARD
ACTIVE
STRG A
STRG B
ALARMS
STRG C
STRG D
ALPHA APPS
14
9
OUTPUT
ALARM
5
TEST
Intelligent Inverter Module
3
BATTERY
TEMP
2
1
8
Tamper Switch Connector
9
Output Power Connection Plate (AlphaPOP)
10
APPs Card
11
Smart AlphaGuard Connector
12
AlphaBus Connector
13
Ethernet Web Interface Connection
14
AC Input Power Connector
8
ALM/
RDY
RST
13
REG
ENV
TPR
DS
ACT
E
T
H
LNK
Rx/Tx PWR
GRN = OK
BLUE = WARN
RED = OUT
7
C
O
M
12
A
/
B
C
/
D
6
4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Alpha Outback Energy CableUPS XM3V-HP
Summary of Contents for Alpha Outback Energy CableUPS XM3V-HP
- Page 1 Alpha XM3V-HP CableUPS Quick Start Guide ® ALM/ OUTPUT SMART ALPHAGUARD ACTIVE ALARM STRG A STRG B ALARMS STRG C TEST STRG D Rx/Tx PWR GRN = OK BLUE = WARN RED = OUT Intelligent Inverter Module ALPHA APPS BATTERY TEMP Battery Connector Tamper Switch Connector...
- Page 2 1. Battery Installation and Wiring Diagram Battery Wiring for Single String 36V or 24V and Double String 36V and 24V with Smart AlphaGuard Load batteries into cabinet with the positive terminals (+) facing forward. To Power Supply To Power Supply (-) 0V Black (-) 0V...
- Page 3 al Strings 2. Battery Cable Kits and Connections Battery Cable Kit, Precision Temperature Sensor / Smart AlphaGuard or Battery Sense Harness, and Battery Fastener Stack-up le Battery Sense Wire Kits are required for individual battery voltage Smart AlphaGuard (Embedded) — use Battery Harness, p/n: M3 SAG option is not installed.
- Page 4 3. Output Voltage Reconfiguration Procedure Some systems may require reconfiguring the output voltage setting. If necessary, follow the steps below to complete the procedure. If the factory default satisfies your system requirements, proceed to Section 3. NOTE: The output voltage factory default is 63 Volts. Tools Required: Small flat-blade screwdriver.
- Page 5 6. Power Module Con��ration Indicates Model and Output Voltage/Current Describes Power Supply XM3V-618CE-HP 63V/0.4A Mode of Operation OPERATION NORMAL Describes Status of Functions Functionality top level menu BATT COMM APPS PWR, BATT, COMM and APPS Softkeys (Menu driven system configuration) Installation Procedure CAUTION! Before applying power, verify power supply rating is matched to AC input utility.
- Page 6 7. Alpha DOCSIS Transponder and Smart Alphaguard LED's Verify Alpha DOCSIS Transponder operation as indicated below: LEDs and Indications Step Communications State ALM/RDY Transponder Initializing/Searching for Flashing (Green) Flashing Flashing Downstream DOCSIS channel DOCSIS Channel locked - Completing Flashing (Green) Flashing Flashing upstream and network registration...
- Page 7 8.0 Final Verification Local Web Server Access The ethernet port of the Alpha DOCSIS Transponder can be used as a local connection point, allowing the user to connect to the transponder web page. To access the web page, proceed as outlined below NOTE: A Static IP address (192.168.100.2) may need to be set on your network interface card to connect to the transponder.
