Summary of Contents for Alpha Outback Energy Tetrex 500

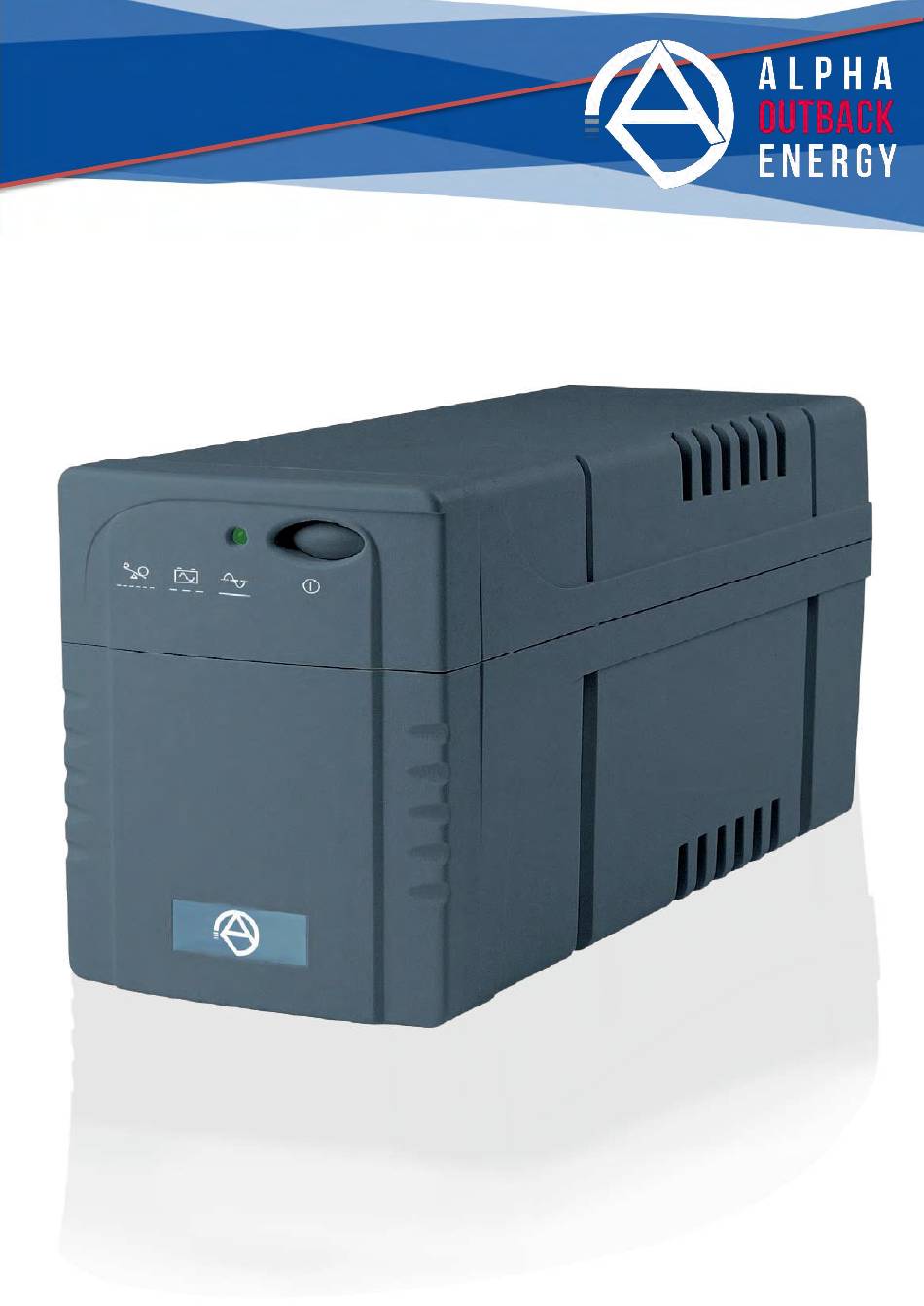

- Page 1 Tetrex 500 USER MANUAL...
- Page 2 Quick Start Put the unit in a dry, clean place. Plug the unit into a power outlet. Plug in the loads. Never plug in a laser printer or plotter. These kind of loads can draw more power than the unit can provide Press the On/Off button for 1 second.
- Page 3 The Alpha Tetrex UPS The Alpha Tetrex Uninterruptible Power Supply (UPS) is a microprocessor-controlled line inter- active unit designed for indoor use. lt has automatic frequency sensing to match the output frequency with the input's. lf the output is overloaded, the unit automatically shuts down to pSrotect the loads.
-
Page 4: Alarms And Troubleshooting
Using the On/Off Button (Continued) Shut off: Press the on/off button for more than 3 seconds. Self test: When the unit is connected to line power, press the on/off button. Buzzer off: Except for the low battery and overload alarms, turn off the buzzer by pressing the on/off button for 1 second. Alarms and Troubleshooting This unit has several audible alarms. - Page 5 Communications The Alphamon software and the unit's RS-232 port lets you remotely monitor and control the unit. The software is supported by DOS, Windows 3.1/95/98/2000/ME/XP/NT, Novell Netware and Linux. Contact AOE for more information. The software lets you: Turn off the unit. Set up an alarm when line power is unqualified.
- Page 6 Specifications 1000 1200 1500 2000 Electrical 400VA / 500VA / 600VA / 800VA / 1000VA / 1200VA / 1500VA / 2000VA / Output Power 24 0 W 300W 360W 4 80W 800W 7 20W 900W 1200W lnput Voltage 100 / 110 / 115 / 120 / 220 / 230 / 240 ± 25% at the unit's input. (VAC) lnput Frequency 50 / 60 ±...
- Page 7 Specifications 1000 1200 1500 2000 Environment Altitude 11,500 (3500) ft (m) Storage Altitude 9,000 (15,000) ft (m) Humidity 0 to 95 (non-condensing) Audible Noise 0 dBA Operating Temperature º C 0- 0 (32-10) Specifications subject to change without notice. Page 6 to 7...
-
Page 8: Warranty
Warranty LlMlTED 24-MONTH WARRANTY AC PRODUCTS AOE warrants its equipment to be free of manufacturing defects in material and workmanship for a period of 24 months from the date of manufacture. The liability of AOE under this warranty is solely limited to repairing, replacing, or issuing credit for such equipment (at the discretion of AOE), provided that: AOES’... -
Page 9: Service Kontakt
Service Kontakt Your direct line to us Worldwide Corporate Offices Headquarter Germany Russia Eastern Europe France and Benelux Hansastrasse 8 fbnl@alpha-outback-energy.com russia@alpha-outback-energy.com ee@alpha-outback-energy.com D-91126 Schwabach Tel: +49 9122 79889 0 Africa Fax: +49 9122 79889 21 Middle East Spain Mail: info@alpha-outback-energy.com africa@alpha-outback-energy.com me@alpha-outback-energy.com spain@alpha-outback-energy.com...
