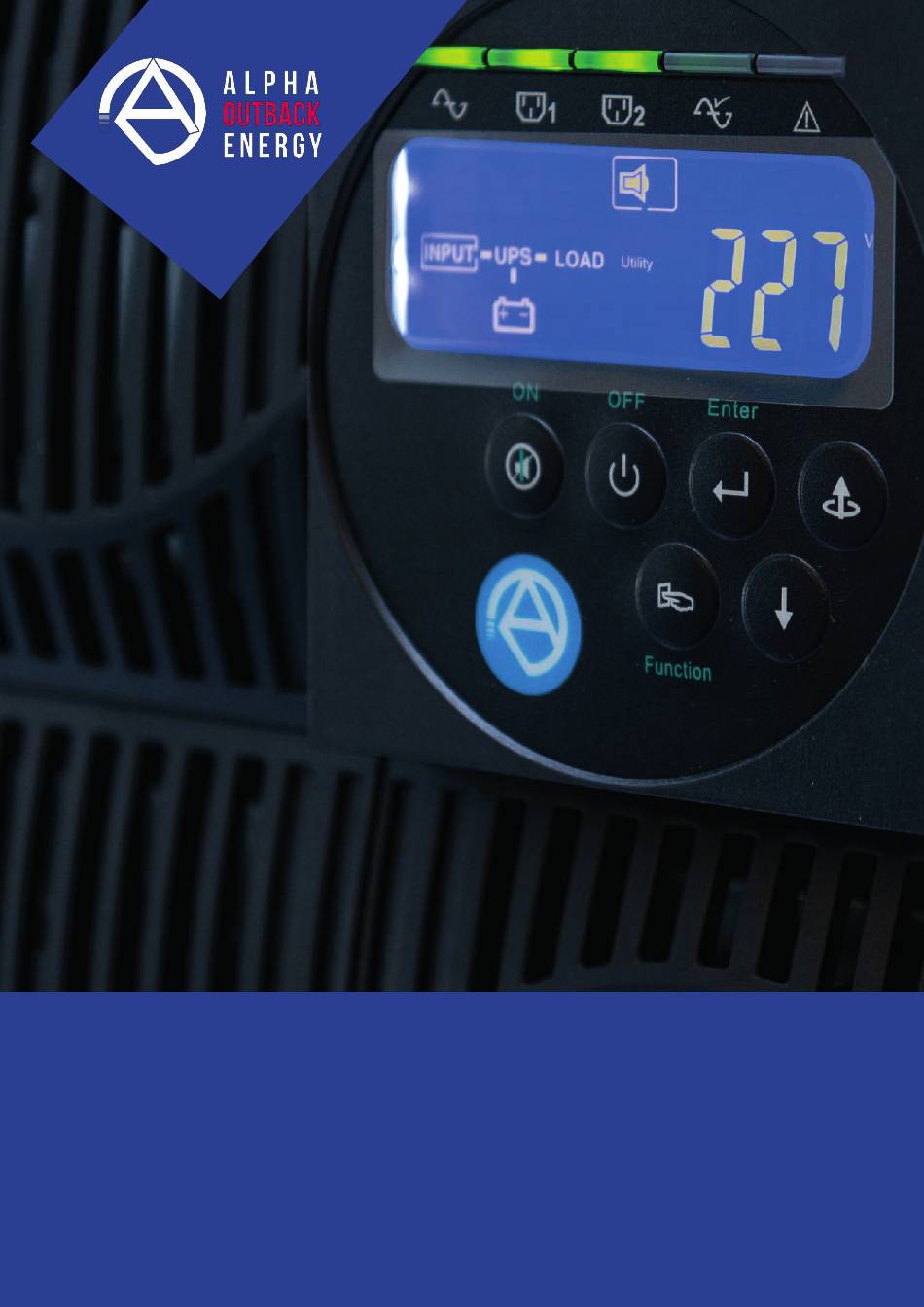

  • Page 1 Continuity 6K -10K USER MANUAL...

  • Page 2: Table Of Contents

    Table of Contents Safety Instructions and Battery Care ................2 1.1. Safety Instructions ----------------------------------------------------------------- 2 1.2. Battery Care ------------------------------------------------------------------------ 5 Product Introduction ....................6 2.1. General Characteristics ----------------------------------------------------------- 6 2.2. Symbols on the LCD Display Panel -------------------------------------------- 9 2.3. Panel Explanation --------------------------------------------------------------- 12 2.4.

  • Page 3: Safety Instructions And Battery Care

    1. Safety Instructions and Battery Care 1.1.11. Do not install the UPS in direct sunlight. Your warranty may be void if the batteries fail. 1.1. Safety Instructions 1.1.12. Install the UPS indoors as it is not designed for installation outdoors. 1.1.1.

  • Page 4: Battery Care

    1.1.22. The UPS offers a CVCF (Constant Voltage Constant Frequency) setting 1.1.32. CAUTION - Do not dispose of batteries in a fire. The batteries may function. explode. a. For correct setting and wiring please contact with your local utility 1.1.33. CAUTION – Do not open or mutilate batteries. Released electrolyte is agent.

  • Page 5: Product Introduction

    2. Product Introduction 2.1.10. Providing four different working modes (Normal, ECO, CF50 and CF60) it may be used in a wide variety of applications. 2.1. General Characteristics 2.1.11. The DC-start function ensures the start-up of the UPS during power 2.1.1. True online architecture continuously supplies your critical device with outages.

  • Page 6: Symbols On The Lcd Display Panel

    2.1.17. Dual input System Block UPS Inverter Output Fuse: When the UPS is overloaded, the fuse will be opened. Inverter Output Switch: When the UPS is overloaded or abnormal, or the UPS is working on ECO mode or if EPO (Emergency Power Off) is activated, the Switch will be opened.
  • Page 7 Item Symbol Description Item Symbol Description Indicates the item to be measured Inverter Over-current Er10 UPS ON Switch or Alarm Silence The UPS is overheated. Er11 UPS OFF Switch UPS Output Overloading Er12 Fan Error Previous Page or Setting Change Er14 Wrong Procedure to Enter Maintenance Next Page...

  • Page 8: Panel Explanation

    2.3. Panel Explanation 2.3.2. Rear Panel 2.3.1. Front Panel Con plus 10K 3U Con plus 6K LCD Information Green LED indicates that the UPS is able to run under redundancy mode. Solid green LED indicates that the utility input voltage is within the window. Flashing green LED indicates that the utility input voltage is outside the acceptable window.

  • Page 9: Communication Port

    USB Port 2.4. Communication Port 2.4.1. The communication port on the UPS provides for USB communication with Terminal Resistor for Parallel function the UPS software to remotely monitor the power and UPS status. CAN Bus Connection Port for Parallel System 2.4.1.1.

  • Page 10: Installation And Operation

    3. Installation and Operation Carefully inspect the UPS for shipping damage before installation. Retain the packing material for future use. 3.1. Unpacking 3.1.1. Standard package contents: Quick Start Manual User Manual Communication software with USB cable －The tower stand (A1) and the mounting ear (B1 and B2) are for tower and rack Metal Accessories Kit for RT model as below: mount installation separately but not for moving UPS.

  • Page 11: Installation Of Accessories Kit

    3.3. Installation of Accessories Kit 3.4. Terminal Block Explanation L12-N1: the terminal for Utility Input to provide the power source when the UPS is working under Utility mode the terminal for UPS Input Ground L21, N22: terminals Output G2: the terminal for UPS Output Ground Remarks: 1.
  • Page 12 3. Please refer to the specifications of input current, output current and recommended conductors listed below. a. AC input and output (minimum 75°C copper wire) Model Maximum Current Conductor Section 6KVA(Tower/RT) 36 A AWG #10 10KVA 62A/50A AWG #8 b. Battery input Model Maximum Current Conductor Section...

  • Page 13: Installation And Operation

    3.5. Installation and Operation Wiring of UPS module and Battery module 3.5.1. Start Up in Normal Mode 3.5.1.1. Open the terminal block cover on the rear panel. (Refer to 2.3.2.) Before starting the installation make sure the grounding is connected properly. 3.5.1.2.
  • Page 14 3.5.1.5. The UPS is in Bypass Mode now. It will proceed to self-test automatically. If no abnormal message appears then the pre-startup of the UPS was successful and the charger starts to charge the batteries. 3.5.1.6. Press the UPS On Switch for approximately three seconds.
  • Page 15 Utility input is “0” and Utility Abnormal. frequency of Utility Input frequency of Bypass Input 3.5.3. Check Measured Values and Figures detected by the UPS 3.5.3.1. If you would like to check the measured values and figures detected by the UPS use the scroll up and scroll down keys.
  • Page 16 3.5.4. UPS Default Data and Special Function Execution 3.5.4.1. After the UPS completely starts up, press the key to change the LCD display to figure Q1. UPS output load level (%) buzzer “On” UPS battery voltage buzzer “Off” UPS battery numbers UPS inner temperature Page 28 to 45 Page 29 to 45...
  • Page 17 3.5.4.2. Press the key to scroll through the UPS settings. The LCD will display in sequence figure Q1 (buzzer) figure R1 (Self-test) figure S1 (Bypass Voltage Windows) figure T (Output Frequency Synchronization Window) figure U (Inverter Output Voltage) figure V1 (UPS Operation Mode) figure W (Output Voltage Micro Tune Value) figure X (UPS Id)
  • Page 18 The parallel function is disabled. The UPS is operating in “CVCF 50 Hz mode”. 3.5.4.3. Press the scroll up key to execute special functions. The functions include buzzer ON (as in figure Q1), buzzer OFF (as in figure Q2, Alarm silence for UPS Warning), and self-test OFF (as in figure R1) or self-test ON (as in figure R2).
  • Page 19 3.5.5.8. Figure W indicates the adjustment of the Inverter Output, which may be 3.5.5.12. Turn Off the Utility Input breaker. set to 0%, +1%, -1%, +2%, -2%, +3%, or -3%. 3.5.5.13. Your setting changes are now complete. 3.5.5.9. Figure X indicates the position of the UPS when the UPS is in Parallel mode.

  • Page 20: Troubleshooting Guide

    3.5.8.1.3. Turn off the UPS Utility breaker as well as the Bypass Input Breaker. Situation Check Items Solution red Fault LED Check error code 1. Check for proper battery You may proceed with UPS maintenance now. shown on the LCD. connection, then recharge the 3.5.8.1.4.

  • Page 21: Communication Software

    6. Optional Interface Cards Situation Check Items Solution fails If the backup power time is still too 6.1. DCE (Dry Contact)-B card to offer short after 8 hours of charging please battery backup contact your local distributor or its backup battery replacement.

  • Page 22: Dce (Dry Contact)-C Card

    6.3. Interface Card Installation 6.2. DCE (Dry Contact)-C card 6.2.1. Please refer to the New Dry Contact Card English Installation Guide (A5)- 192321002014002. Page 40 to 45 Page 41 to 45...

  • Page 23: Specifications

    7. Specifications DISPLAY Status On LED + LCD Line Mode, Backup Mode, ECO Mode, Bypass Supply, Battery Low, Battery Bad/ 6KVA Disconnect, Overload, Transferring with INPUT Voltage Window 110-280 VAC (1Φ) interruption, UPS Fault Input Voltage, Input Frequency, Output Voltage, Frequency 45-70 Hz Readings on LCD...
  • Page 24 ALARMS 10KVA Audible and Visual Line Failure, Battery Low, Transfer to Bypass, INPUT System Fault Conditions Voltage Window 110-280 VAC (1Φ) PHYSICAL Frequency 45-70 Hz Dimensions Phase/Wire Single, Line + Neutral + Ground RT model 440x685x132 (without transformer) WxDxH (mm) Power Factor Up to 0.99 at 100% Linear Load <3%...
  • Page 25 Service Contact Your direct line to us Worldwide Corporate Offices Headquarter Germany Russia Eastern Europe France and Benelux Hansastrasse 8 russia@alpha-outback-energy.com ee@alpha-outback-energy.com fbnl@alpha-outback-energy.com D-91126 Schwabach Tel: +49 9122 79889 0 Spain Africa Fax: +49 9122 79889 21 Middle East Mail: info@alpha-outback-energy.com africa@alpha-outback-energy.com me@alpha-outback-energy.com spain@alpha-outback-energy.com...

This manual is also suitable for:

Continuity 10k
