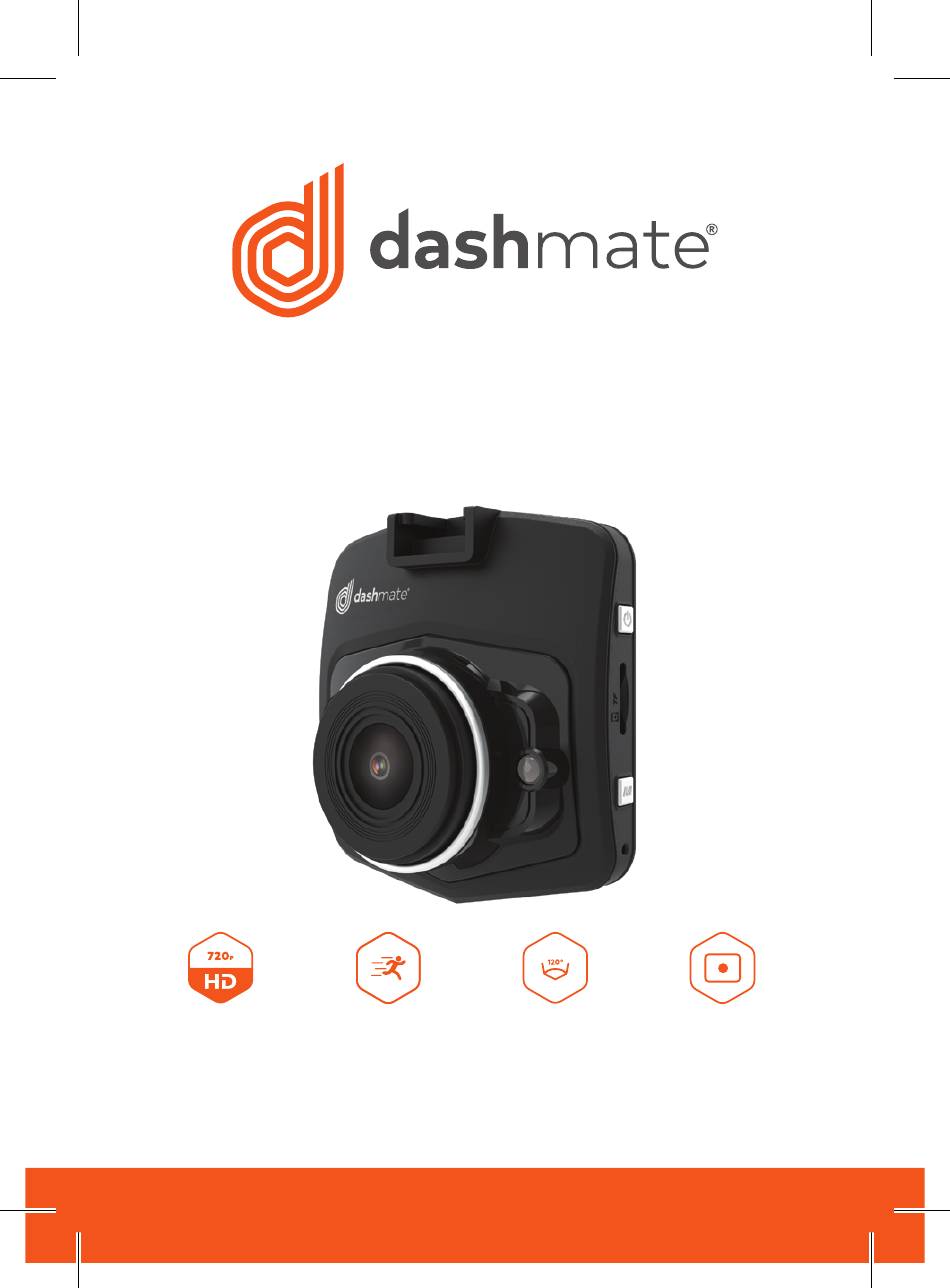

TECHNOLOGY DRIVEN™
HD Dash Camera
With 2.4" LCD Screen
720p
Motion
120° Field
Auto
Resolution
Detection
of View
Record
DSH-410 | USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSH-410 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Dashmate DSH-410

  • Page 1 TECHNOLOGY DRIVEN™ HD Dash Camera With 2.4” LCD Screen 720p Motion 120° Field Auto Resolution Detection of View Record DSH-410 | USER MANUAL...
  • Page 3: Table Of Contents

    CONTENTS CAUTION ������������������������������������������������������������������������������� 5 BATTERY WARNING ������������������������������������������������������������ 5 NOTES AND INSTALLATION ���������������������������������������������� 6 NOTE�������������������������������������������������������������������������������������� 6 PRODUCT INFORMATION ��������������������������������������������������8 INTRODUCTION �������������������������������������������������������������������8 FEATURES�����������������������������������������������������������������������������8 PACKAGE CONTENTS���������������������������������������������������������8 PRODUCT DIAGRAM ����������������������������������������������������������� 9 GENERAL ���������������������������������������������������������������������������� 10 INSTALLATION ������������������������������������������������������������������� 10 OPERATION ������������������������������������������������������������������������� 11 COMPUTER CONNECTION �����������������������������������������������12 INTERFACE ��������������������������������������������������������������������������12 SET TIME AND DATE ����������������������������������������������������������13 SET LOOP RECORDING �����������������������������������������������������14 SET G-SENSOR �������������������������������������������������������������������15...
  • Page 4 VIDEO MENU ���������������������������������������������������������������������� 18 STILL ������������������������������������������������������������������������������������20 PLAYBACK MENU �������������������������������������������������������������� 23 SETTINGS MENU ��������������������������������������������������������������� 24 SETTINGS MENU CONTINUED ���������������������������������������� 25 SPECIFICATIONS ��������������������������������������������������������������� 26 WARRANTY TERMS & CONDITIONS ������������������������������ 27...
  • Page 5: Caution

    CAUTION • Ensure you are using your Dash Cam within your countries’ road laws. Please make sure you are familiar with your local road legislation before use. • Please set time and date before you use this device to record. •...
  • Page 6: Notes And Installation

    • Do not attempt to replace or expose the internal battery. NOTES AND INSTALLATION • It is advised that the Dash Cam is installed near the rear view mirror, at the top centre of the windshield for optimal operation. • Make sure that the lens is within the range of the windscreen wiper to ensure a clear view when it rains.
  • Page 7: Product Information

    9. Please charge the battery fully before first use. 10. To clean, please use a soft and dry cloth to get rid of dust. Do not use solvents to clean the product. PRODUCT INFORMATION For latest manual and product updates please visit our website www�dashmate�com�au or www�dashmate�co�nz.
  • Page 8: Introduction

    INTRODUCTION Thank you for purchasing a DSH-410 Dash Cam. Please read through instructions before attempting to install or use this product. FEATURES • Recording Full HD 720P footage • 120° Field Of View • Motion Detection • Auto Start Up and Shut Down...
  • Page 9: Product Diagram

    PRODUCT DIAGRAM 1. 2.4” Screen 8. HDMI Mini 2. OK Button 9. Lens 3. Down Button 10. Mode Button 4. Park Mode Button 11. Micro SD Slot 5. Up Button 12. Power Button 6. Menu Button 13. Mounting Socket 7. Power in (Mini USB) N/A.
  • Page 10: General

    SD card should be inserted with the text facing towards you • The Auto On/Off feature will power the DSH-410 up and begin recording as soon as it receives power from the USB Mini connection (eg. When you start your car) INSTALLATION •...
  • Page 11: Operation

    OK button. • The DSH-410 is optimised for Micro SD Cards class 6 and above with a capacity up to 32GB. • The on board ‘G- Sensor’ registers any activity that could be an accident and registers the footage as a ‘Locked’...
  • Page 12: Computer Connection

    • To quickly activate ‘Park Mode’, push the Park Mode button while in VIDEO mode. COMPUTER CONNECTION Videos and Photos can be retrieved from the DSH-410 by connecting the Micro SD Card to your computer using a Micro SD Card adapter (not included).
  • Page 13: Set Time And Date

    To set the time on your DSH-410 follow the directions below. • Ensure you are not currently recording. If the red record indicator is flashing at the top left of the DSH-410’s screen, push the OK button to stop...
  • Page 14: Set Loop Recording

    You can set the amount of video block time the DSH-410 will record for before a new video file is started. To change the length of the videos that the DSH- 410 records follow the directions below: •...
  • Page 15 Locked, and 8G is the least sensitive requiring a larger amount of activity to log footage as Locked). • To confirm selection push the OK button, the DSH-410 will take you back to the VIDEO menu.
  • Page 16: Set Motion Detection

    • Using the DOWN button, highlight the setting named Motion Detection and push OK. • Use the UP and DOWN buttons to highlight either OFF or ON. • To confirm selection push the OK button, the DSH-410 will take you back to the VIDEO menu.
  • Page 17: Video

    OK button. Footage can be manually locked by pressing the MENU button protecting it from being recorded over. When the DSH-410 is not recording in this mode, ‘Park Mode’ can be turned on and off with a press of the Park Mode button.
  • Page 18: Video Menu

    1280 x 720 Loop ‘Loop Recording’ Recording 1 MINUTES defines the length of 2 MINUTES time the DSH-410 3 MINUTES records before creating 5 MINUTES a new file. Using the Off setting will record the longest possible loops under the file size of 2GB (around 7 mins at 720P).
  • Page 19 VIDEO MENU CONTINUED Menu Setting Remark Motion When activated, the Detection Motion Detection feature allows visible movement to trigger recording. Default: Off Record Turning this setting Audio off mutes the built in microphone. Default: On Date Date stamps the Stamp footage.
  • Page 20: Still

    STILL This screen is used to take still photos. 1. Still mode 7. Resolution 2. Exposure 8. Image quality 3. White balance 9. SD card 4. ISO 5. Day/night mode 6. Image number...
  • Page 21 3M 2048 x 1536 2MHD 1920 x 1080 1.3M 1280 x 960 VGA 640 x 480 Sequence The sequence setting will set the DSH-410 to take a sequence of 3 photos every time the shutter is triggered. Quality Fine Sets the quality of the Normal image.
  • Page 22 STILL MENU CONTINUED Menu Setting Remark Auto The lower the ISO, the lower the sensitivity of the image will be. Higher ISO will capture more light and reduce motion blur. Exposure +2.0 Adjusting the exposure +5/3 will counter balance +4/3 high or low light +1.0 conditions.
  • Page 23: Playback Menu

    PLAYBACK In this screen the UP and DOWN buttons are used to navigate your videos and photos, and the OK button is used to play and pause selected videos. 1. Playback mode 4. Play function 2. File Name 5. Power 3.
  • Page 24: Settings Menu

    5 Mins before the screen powers 10 Mins down (even when the screen powers down in screen saver mode the DSH-410 will keep recording). Default: Off Beep Sound Mute control for key beeps. Default: On Language *Set Select Menu language.
  • Page 25: Settings Menu Continued

    SETTINGS MENU CONTINUED Menu Setting Remark Flash This Setting is not used on the DSH-410 Format Cancel Format the inserted Micro SD Card, deleting all photos, videos and data. Default Setting Cancel Restore factory settings. Version Version Displays the installed Number firmware version.
  • Page 26: Specifications

    SPECIFICATIONS Screen 2.4" Lens 120° Camera Rotation 180° Minimum Light 1 LUX Video Resolution High Definition 720P Memory Type Micro SD Card Capacity Supported Up To 32GB/ Class 6 Upward Microphone/Speaker Built in...
  • Page 27: Warranty Terms & Conditions

    The retailer will contact you when the product is ready for collection. All costs involved in claiming this warranty, including the cost of the retailer sending the product to Directed Electronics, will be borne by you. Email: service@dashmate�com�au...
  • Page 28 | dashmate.co.nz...
