Summary of Contents for Dashmate DSH-680

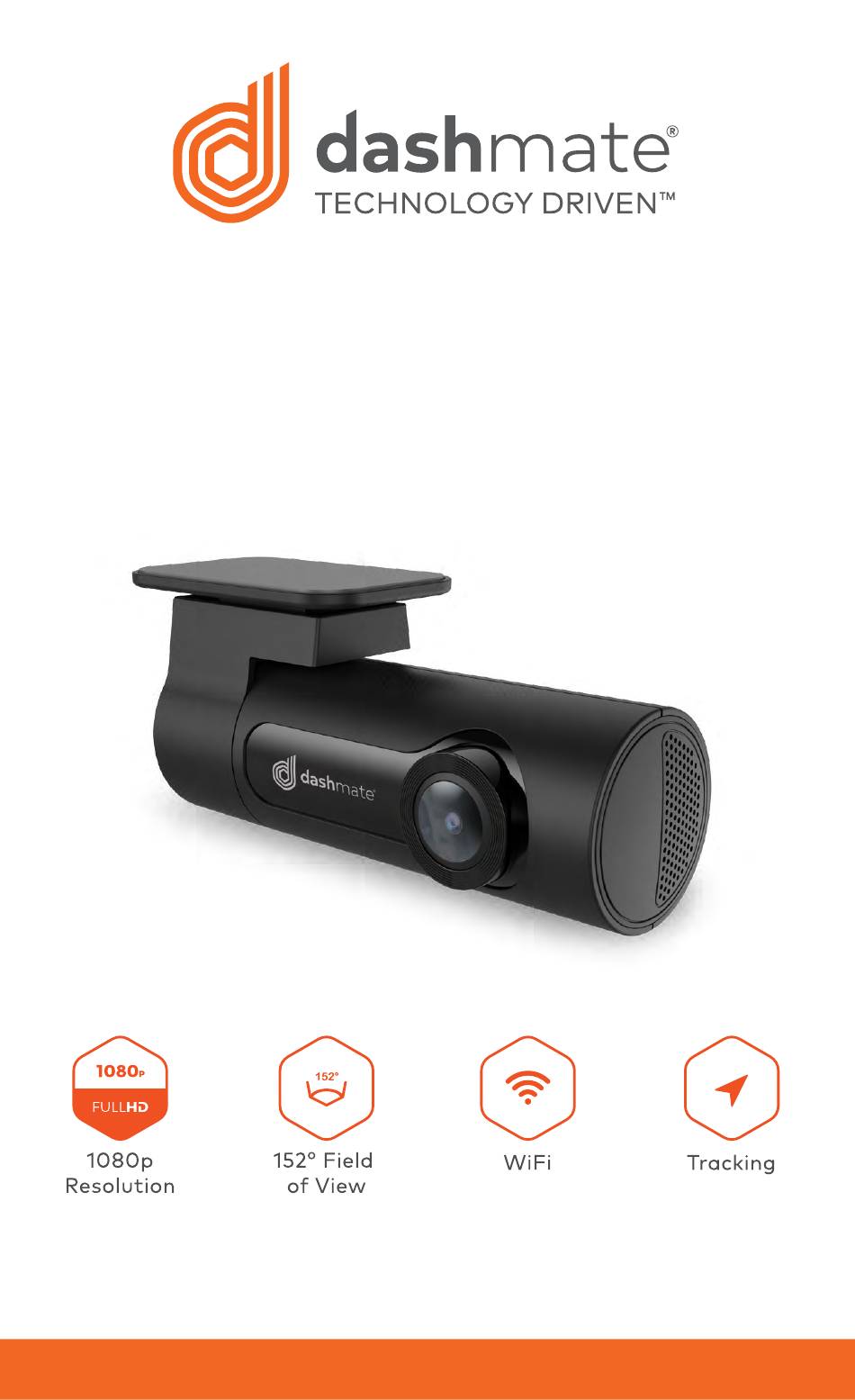

- Page 1 Discreet 1080p Dash Camera with GPS, WiFi & Super Capacitor DSH-680 | USER MANUAL...
-
Page 2: Table Of Contents
2.4 INSTALLING YOUR DSH-680 WINDSHIELD BRACKET ..........6 2.5 INSTALLING YOUR GPS RECEIVER .................. 6 2.6 CONNECTING POWER TO YOUR DSH-680 ..............6 2.7 REMOVING THE DSH-680 FROM THE MOUNT ............6 2.8 POWERING UP THE DSH-680 ..................6-7 2.8.1 MANUALLY POWERING OFF THE DSH-680 ............7 2.9 SMART PHONE CONNECTION .................. -
Page 3: Caution
Only use the included cable to power the DSH-680. • When running the power DSH-680’s power cable be sure to run it to the right of your • windscreen ensuring that the cable does not impede the drivers view. -
Page 4: Product Information
Thank you for purchasing a Dashmate Car Dash Cam. Please read through these instructions before attempting to install or use this product. ____________________________________________________________________________________________________________ NOTE: • Your DSH-680 is configured by using the app (Refer page 8). There are no buttons or menus on the actual device. ____________________________________________________________________________________________________________ 1.1 FEATURES •... -
Page 5: Gps Receiver
____________________________________________________________________________________________________________ NOTE: • Do not insert or remove a Micro SD card while your DSH-680 is powered up or recording. This may damage your Micro SD card. • Please use Class 10 or higher rated Micro SD cards up to 64GB •... -
Page 6: Installing Your Dsh-680 Windshield Bracket
____________________________________________________________________________________________________________ NOTE: • It is recommended that the DSH-680 is mounted behind your rear view mirror so that it is not obstructing the drivers view. • Once installed it is not recommended that the Windshield Bracket is removed as it is not possible to re-install once it has been removed. -
Page 7: Manually Powering Off The Dsh-680
Wait for the phone to connect to the Barrel camera, a successful connection is established when connected is seen on the DSH680-xxxxx’s SSID (Refer to FIG 2.9.4) Once connected, open the DSH-680 App. (Refer to page 9 - FIG 3 - point 1) FIG 2.9.2 FIG 2.9.3... -
Page 8: Using The Dsh-680 App
USING THE DSH-680 APP Once you open the DSH-680 App (ensuring your phone is connected to the camera via WiFi) the front page will give you access to options available such as live view, GPS data, Album, and app details. (Refer to FIG 3) The below app screens are the most common and will be referenced throughout this manual. -
Page 9: Album (Stored On Dsh-680)
DSH-680. To Transfer files please follow the instructions below. 1. In the DSH-680 App press Open DSH-680 from the main app menu. (Refer to page 9 - FIG 3) Press the folder... -
Page 10: Deleting Videos (From Smart Device)
Settings of the App and the DSH-680 can be changed through the settings menu. The Settings menu can be accessed by pressing the cog icon in the bottom right corner of the live screen of the App. Once in the settings menu the DSH-680 settings can be edited using the ‘Device Setting’ section. -
Page 11: Features
GPS records your location and speed and saves this information to your video files as it is being recorded. This data is then played back via the DSH-680 Smart phone App showing your mapped location and speed at the time of recording. -
Page 12: About This Guide
All costs involved in claiming this warranty, including the cost of the retailer sending the product to Directed Electronics, will be borne by you. Directed Electronics Address: 44 Translink Drive, Keilor Park Victoria Australia 3042 Ph: +61 03 8331 4800 Email: service@dashmate.com.au www.dashmate.com.au www.directed.com.au www.dashmate.co.nz...
